Passive Infrared Outdoor Sensor
Description:
The Sharkward Bluetooth Lighting Control provides automated individual and group control of light fixtures using on sensors and Bluetooth sigmesh technology.
The BRI819P-B-D-BLE mounted in an Commercial lighting fixture and provides multi-level control solution based on motion and or daylight harvesting contribution.
.jpg)
.jpg)
Applications:
- Car Parking
- Hospitals
- Schools
- Warehouses
- Industrial
Features
- Lighting controls meet design lights consortium (DLC) networked lighting control system technical requirements(Version NLC5 June 23, 2020).
- Quicky connect and adjust different sensor angle.
- Easy commissioning with tuya/sharkward App (Available in IOS and Android).
- Bluetooth network with SaaS working by computer
- Individual addressability and/or grouping.
- Time clock scheduling for individual lights, groups or scenes.
- Multi-level dimming: manual ON/OFF automatic ON/OFF, and automatic partial ON/OFF,daylight harvesting control capability.
- 5 Year Warranty
PIR Sensor Features
| DAYLIGHT HARVESTING | ON/OFF |
| MOTION SENSING | ON/OFF |
| FIRST TIME DELAY | 1-59 minutes/infinite |
| SECOND TIME DELAY | 0-59 minutes/infinite |
| DIM LEVEL | 0-100% |
| MOUNTING HEIGHT | 13-40ft |
| DETECTION RANGE | Up to 52ft diameter |
| DETECTION HORIZONTAL PATTERN | 360° |
| DETECTION VERTICAL PATTERN | 90° |
Ordering Information
| MODEL NUMBER | DESCRIPTION |

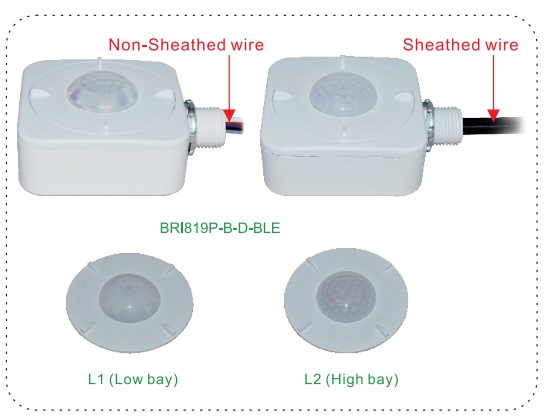

| BRI819P-B-D-BLE | NETWORK NODE RECTANGULAR, BLACK & WHITE |

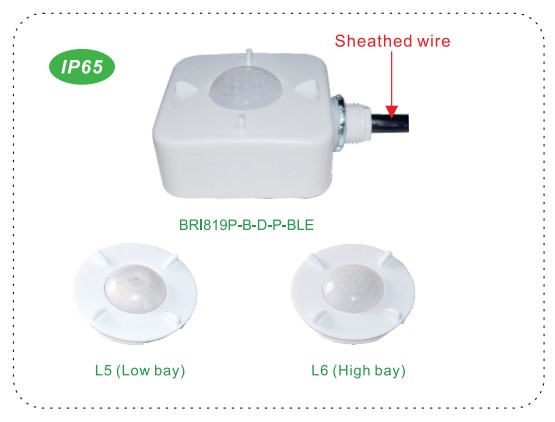

| BRI819P-B-D-P-BLE | NETWORK NODE RECTANGULAR, BLACK & WHITE,IP65 |
Specifications:
| Specifications: | BRI819P-B-D-BLE | BRI819P-B-D-P-BLE |
| NETWORK BLE SIGMESH | Yes | |
| DAYLIGHT HARVESTING | Yes | |
| DIGITAL PIR MOTION SENSOR | Yes | |
| DETECTION MODE | Occupancy/Vancancy/Bi-level in 1 Unit | |
| OPERATING VOLTAGE | 120/277V AC | |
| MAXIMUM LOAD | 5A, 600W Max. for LED driver only | |
| SINKING CURRENT | max. 25mA | |
| CONTROL OUTPUT | 0-10V | |
| RADIO FREQUENCY | 2.4GHz + 75MHz | |
| WIRELESS STANDARD | RIF 42 MESH IFFF 802.15.1 | |
| PROGRAMMING | Tuya/sharkward App mobile app(IOS and android) or SaaS | |
| CYBERSECURITY | UL1376 | |
| ENCRYPTION | AES 128-bit | |
| MESH RANGE | 100ft node-to-node and 50ft node-to-device (Commissioning) | |
| SAFETY | cULus Listed | |
| FCC | FCC ID: | |
| OPERATING TEMPERATURE | -40°F +167°F (-40°C ~ +75°C) | |
| IP RATING | IP20 | IP65 |
| COLOR | BLACK & WHITE | |
*Must be paired with a Network Wall Switch

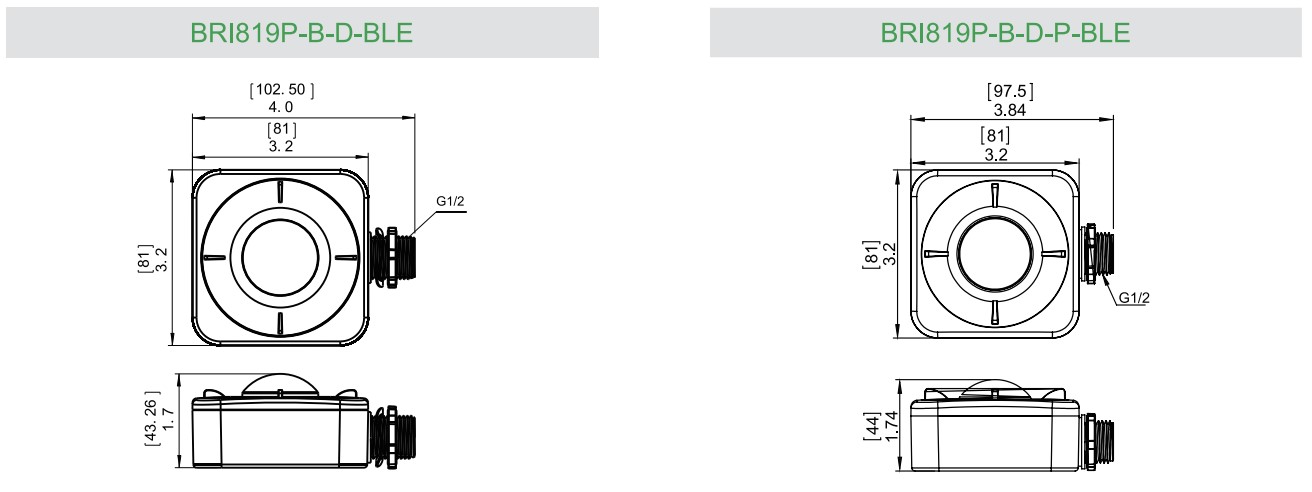

Product Dimensions
.jpg)

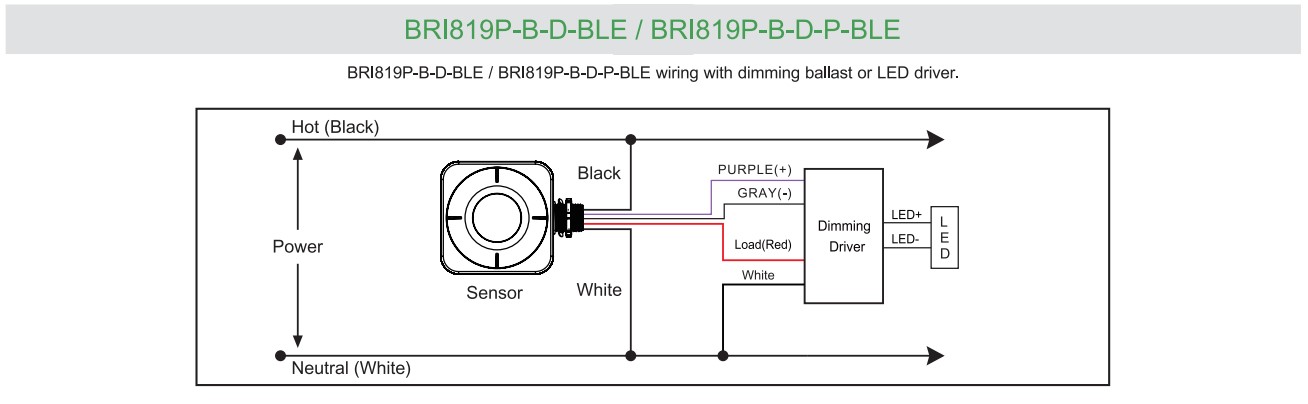

Wiring
.jpg)

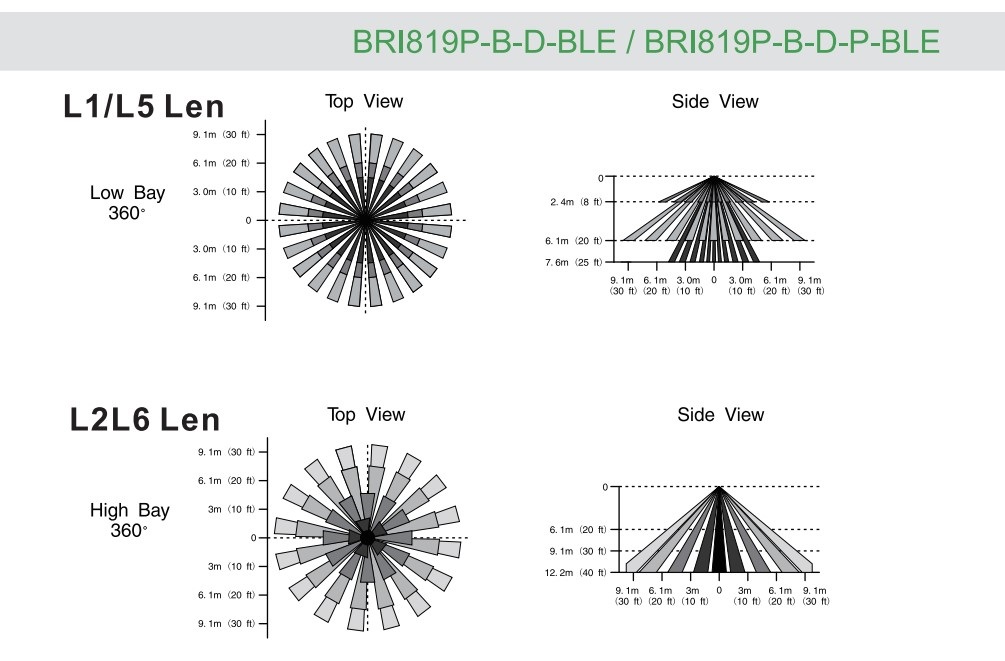

Detection Coverage
.jpg)

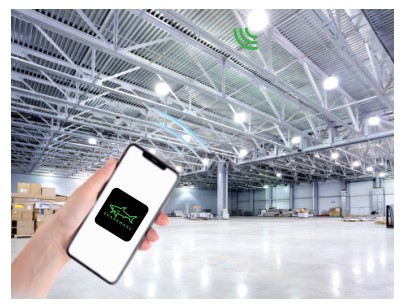

Commissioning
Tuya/Sharkward mobile App makes it easy to pair devices, create groups, set scenes/schedules, customize dimming levels, and adjust high trim based on application needs.
.jpg)
.jpg)
