MST Bluetooth PIR Motion Sensor
Description:
The MSANT12VPHS01 uses PIR motion detector architecture and passive infrared (PIR) technology for improved detection coverage for high bay applications.
- PIR sensor.
- Daylight Harvesting
- Bluetooth@ SIG mesh.
- High-End Trim, Zoning, Continuous Bi-level Dimming
- LED Motion indicator
- Mounting height up to 40 ft
- 360° coverage pattern.
- Low Voltage connector
- Technology Partner SILVAIR
.jpg)

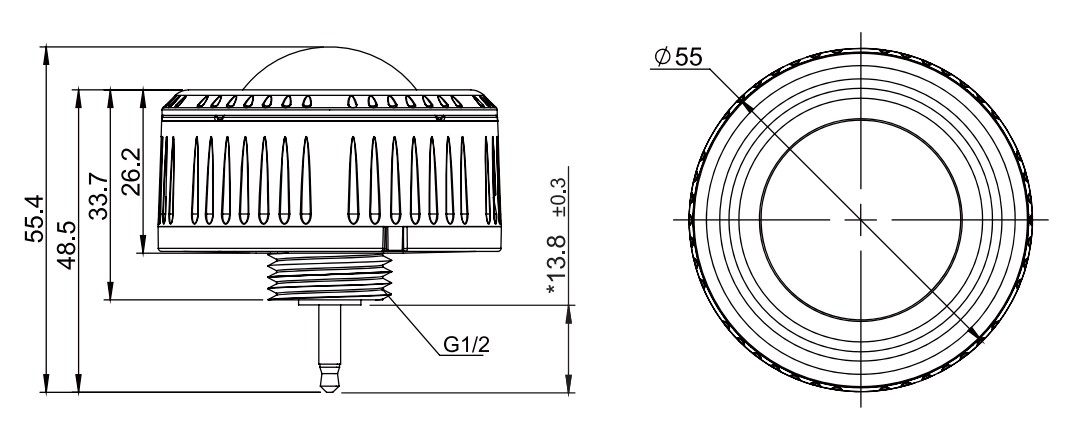

DIMENSIONS
.jpg)
FEATURES AND BENEFITS
- Bluetooth to 0-10V signal converter, Bluetooth@ mesh network
- Built-in 20mA0-10V signaloutput.
- Mesh network, which has a much longer control distance, transmits received signals to neighboring devices.
- All devices on 0-10V line are broadcast controlled by mobile application.
- In typicaloutdoor environment, the typicalrange for wireless communicationis 60m.
- Actualrange is dependent on field installation.
- Available with Magnetic reset(Touch the top part of sensor for 5 seconds).
- On-board antenna
TECHNICAL DATA
|
Motion Sensor |
Passiveinfrared sensor |
|
Input Power |
12-24VDC,>50mA |
|
Control Output |
0-10V,max 25mA sinking current |
|
Mounting height |
40ft(12m)Max. |
|
Detection angle |
360° |
|
Operating temperature |
-20°C~60°C |
|
IP rating |
65 |
|
Max Bluetooth Range |
200ft |
|
Warranty |
5years |

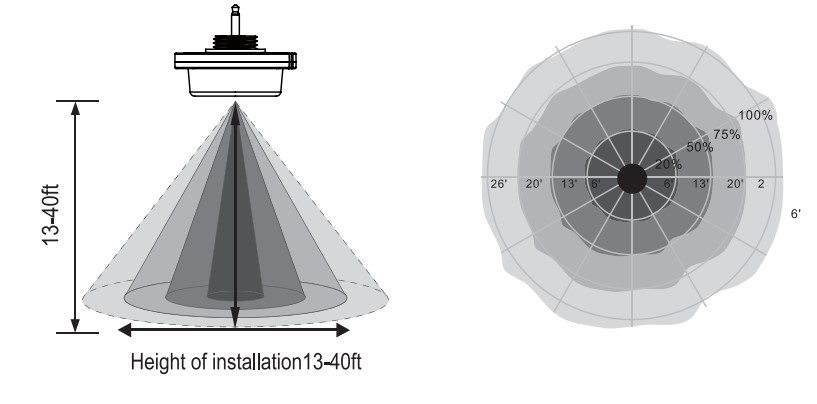

SENSOR COVERAGE
.jpg)
