IMFD11 LED Floodlight 15W-120W

Description:

IMFD11 aims to provide customers with an economical, efficient, flexible and long-life floodlight. The low-profile and stylish exterior design can be well integrated into various architectural environments. Available in three sizes and multiple lumen packages from 15W-120W, this product also achieve up to 161lm/W efficiency. At the same time, it takes into account the functions of light control, CCT & Power adjustable, which can save energy to the greatest extent and facilitate customer stocking. Reliable IP65 structural design, IMFD11 is very suitable for general flood lighting of courtyards, driveways, buildings, billboards, etc.

Contact Us

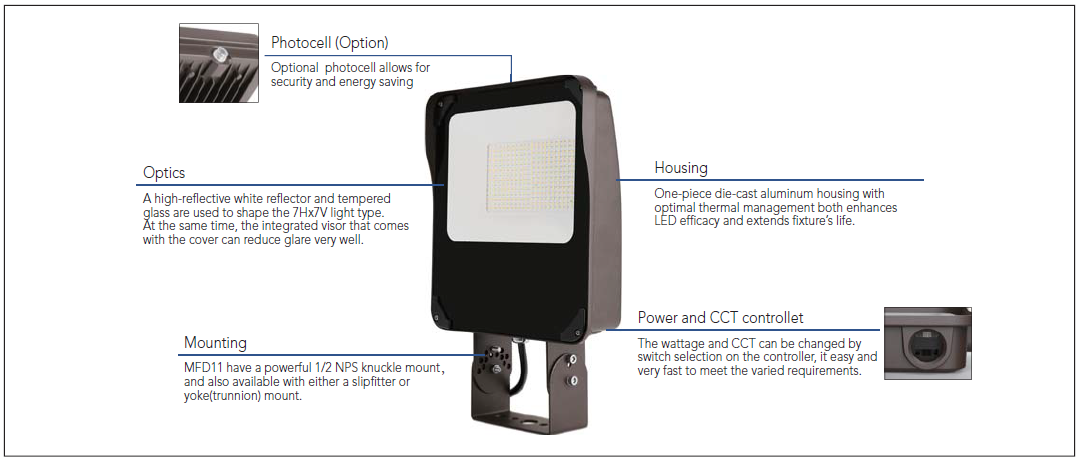

Construction

  • Die-cast aluminum optimize the best heat dissipation management as the main part of the fixture, which effectively improves the LED efficiency.
  • Durable surface coating powder spraying and fully sealed tempered glass can extend the durability of the fixture.

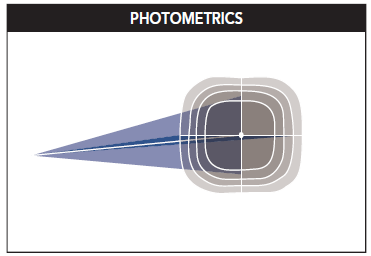

Optics

  • Optics(NEMA Type): 7Hx7V.
  • Scalable Lumen Packages from 2,050 to 19,000 Lumens.
  • The use of advanced refraction and reflection optical design concepts provides an optimal combination of vertical and horizontal illumination.
  • The heat-resistant and impact-resistant toughened glass maximizes light extraction while obtaining a great night appearance.

LED Module

  • Light engines are available in color tunable version, the CCT can be changed to 3000K/4000K/5000K.

Electrical

  • Universal 120-277 VAC input voltage.
  • 1-10V dimming.
  • Both drivers have a power factor >90%, THD <20%.
  • Operating Temperature Range: -40˚C - + 40˚C (-40˚F - + 104˚F).

Control

  • Photocell option.

Installation

  • 1/2" NPS Knuckle, Slipfitter, Trunnion and Yoke are all available.

Certifications

  • UL cUL wet location listed.
  • DesignLights Consortium™ Qualified.

Note：DesignLights Consortium™ Qualified and classified for DLC Premium (all lumen packages), refer to www.designlights.org for details.

Lifespan

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

  • Five-year warranty.

Note

Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25℃(±5℃ ) specifications subject to change without notice.

PERFORMANCE DATA

SYSTEM WATTS



VOLTAGE



DIST.TYPE



CRI

LUMENS (3000K)

LPW (3000K)

LUMENS (4000K)

LPW (4000K)

LUMENS (5000K)

LPW (5000K)

15W

120-277V

7Hx7V

70

2050lm

137 lm/W

2300lm

153 lm/W

2100lm

140 lm/W

27W

120-277V

7Hx7V

70

3500lm

130 lm/W

3800lm

141 lm/W

3600lm

133 lm/W

40W

120-277V

7Hx7V

70

5700lm

143 lm/W

6000lm

150 lm/W

5800lm

145 lm/W

65W

120-277V

7Hx7V

70

9200lm

142 lm/W

9700lm

149 lm/W

9400lm

145 lm/W

90W

120-277V

7Hx7V

70

13400lm

149 lm/W

14500lm

161 lm/W

13500lm

150 lm/W

120W

120-277V

7Hx7V

70

17500lm

146 lm/W

19000lm

158 lm/W

18000lm

150 lm/W

ADJUSTABLE LUMEN OUTPUT TABLE





15W



27W



40W



65W



90W



120W



SETTING

SYSTEM WATTS

LUMENS (5000K)

SYSTEM WATTS

LUMENS (5000K)

SYSTEM WATTS

LUMENS (5000K)

SYSTEM WATTS

LUMENS (5000K)

SYSTEM WATTS

LUMENS (5000K)

SYSTEM WATTS

LUMENS (5000K)



100%



16.3



2266



27.23



3672



39.9



5846



65.5



9438



94.35



13982



122.9



18092



80%



12.63



1790



20.4



2856



29.5



4542



54.3



7824



67.9



10535



98.82



15119



60%



10.02



1455



15.52



2234



21.94



3356



41.2



5937



50.9



8144



71.28



11206



40%



6.15



943



11.4



1690



14.3



2327



27.5



3963



33



5490



52.8



8581

ELECTRICAL DATA

Number Of Drivers

Driver Current (mA)

Nominal Power (W)

INPUT VOLTAGE (V)

CURRENT

(Amps)





1





230

15

120

0.13

15

208

0.07

15

240

0.06

15

277

0.05





1





450

27

120

0.23

27

208

0.13

27

240

0.11

27

277

0.10





1





680

40

120

0.33

40

208

0.19

40

240

0.17

40

277

0.14





1





980

65

120

0.54

65

208

0.31

65

240

0.27

65

277

0.23





1





730

90

120

0.75

90

208

0.43

90

240

0.38

90

277

0.32





1





960

120

120

1.00

120

208

0.58

120

240

0.50

120

277

0.43

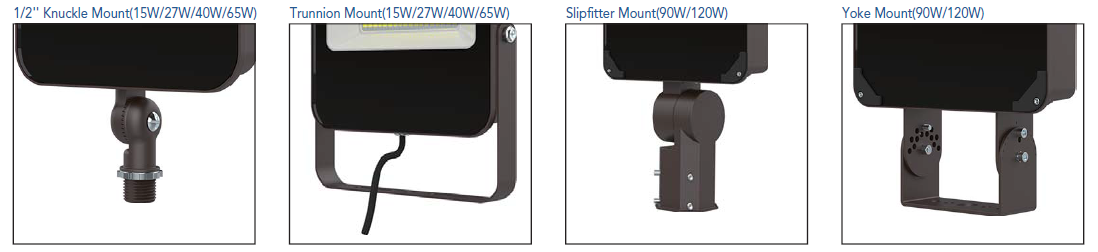

MOUNTING

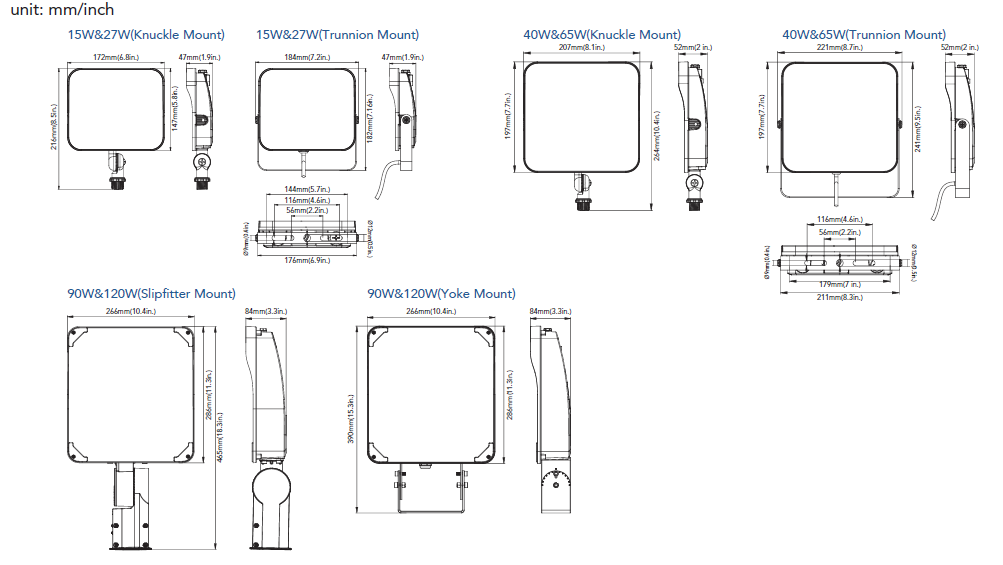

DIMENSION

ORDERING GUIDE                                                                                   Example:IMFD1140W27VDDKYYYYYY





IUS

Fixture Type



Wattage



Voltage



CCT



Finish



Photocell (Option)



Mounting



Nema



Internal Code



I

MFD11

15



15W

27V 120-277V

DDK³

D Dark Bronze

P

TR¹ Trunnion

B77 7Hx7V

Blank



Flood Light series

27

40

27W

40W



Adjustable color

temperature

B Black

W White

With Photocell

Blank

KN¹ Knuckle

YK² Yoke



Alphanumeric





65

65W



30K 3000K



Without Photocell

SP² Slipfitter









90

90W



40K 4000K















120 120W



50K 5000K











Note:

1. 15W,27W,40W,65W only suitable for knuckle and trunnion.

2. 90W,120W only suitable for slipfitter and yoke. 3. CCT Adjustable (3000K/4000K/5000K).
