4"/6" Round Surface Disc Light w/motion sensor IMDDMS410/614
Description:
This IMDDMS Series Surface Mount Disk Light Fixture came with a built-in motion sensor, turns the light ON at dusk automatically when movement is detected. With the 15ft detect range and 65-degree detect angle, it’s perfect for the hallway, closet and other location that the motion-activated wall switches is not able to be install, makes your life more convenient while helps you to save more energy.
Perfect use for residential housings, condominiums, business building, hotel and hospitality industry.

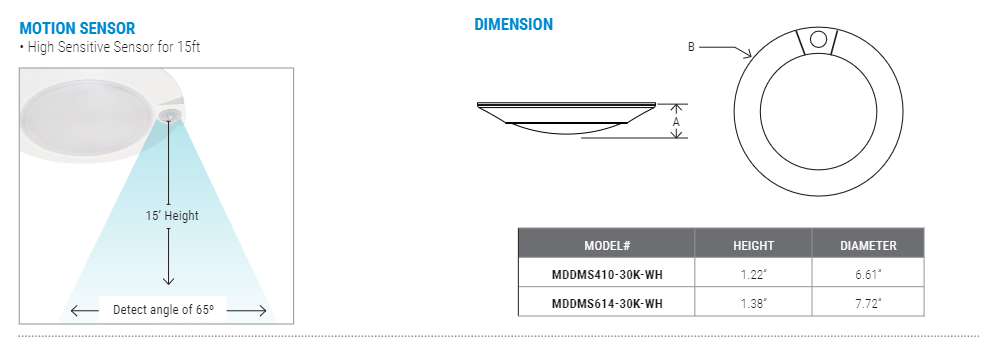

DIMENSION
TECHNICAL SUMMARY
|
MODEL # |
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
IMDDMS410-30K-WH |
650 |
10W |
65 lm/W |
90 |
120V- 60 Hz |
110º |
3000K |
>0.9 |
50,000 hrs |
-5ºF ~ 104ºF |
|
IMDDMS614-30K-WH |
900 |
14W |
71 lm/W |
CONSTRUCTION
- Unit includes die-cast metal housing, LED array, heat sink, lens, and metal trim.
OPTICS
- High quality PC lens
- Efficiency LED array
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable driver.
- Smooth flicker free deep dimming to 10%
MOUNTING
- Surface mount on junction box
- Surface mounting bracket included
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations, Title 24 JA8-2022, RoHS
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
- Terms and conditions may apply.

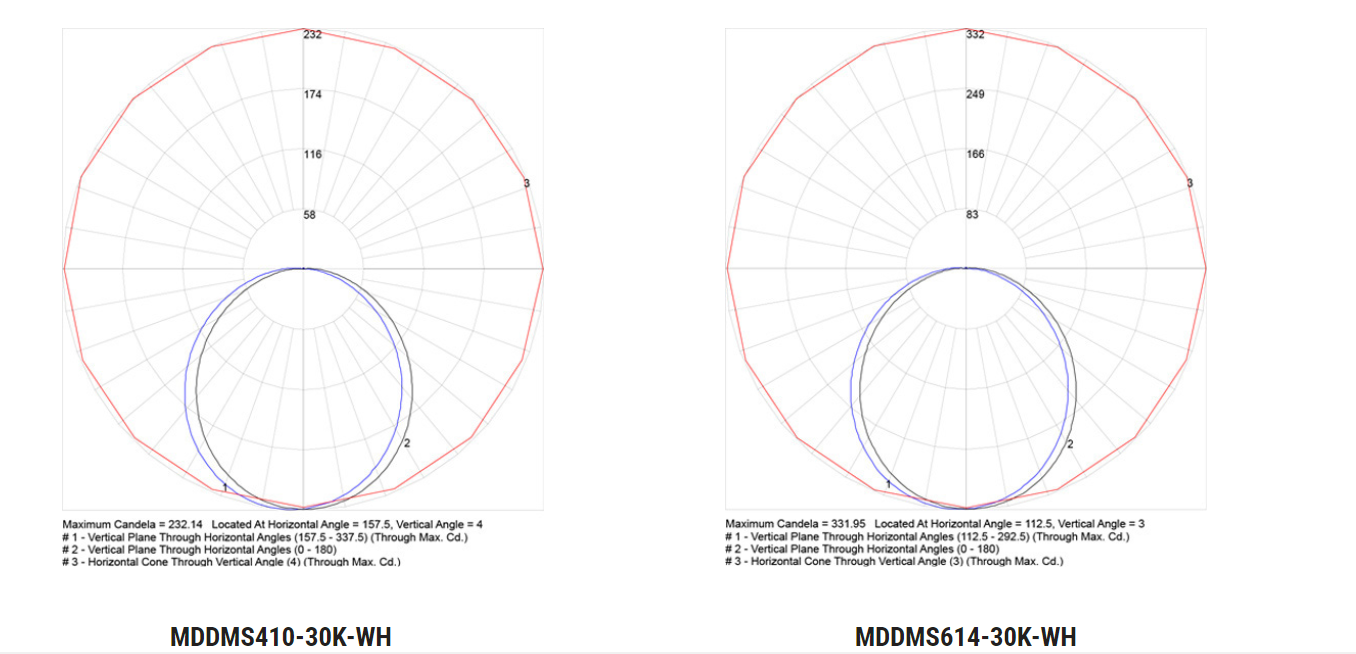

PHOTOMETRY
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M
