Slim Architectural Linear 4&6INCH

Description:

The revolutionary series offers popular 4" and 6" widths, with lengths up to 8 feet, delivering powerful linear lighting for a variety of applications. Thanks to its wattage-selectable and CCT-adjustable technology, inventory management becomes a breeze—fulfilling more orders with fewer SKUs! Compatible with most ceiling types, the LR series is your go-to solution for offices, schools, hospitals, corridors, light industrial spaces, or anywhere stylish linear lighting is desired.

Contact Us

Feature

  • Slim and linear design
  • 2ft, 4ft and 8ft lengths, up to 1000lm/ft
  • 0-10V dimming, dim to 10% or 1% options
  • Available in 4", 6" width
  • Wattage selectable (50%/75%/100%)
  • CCT adjustable from 3000K, 3500K and 4000K

PERFORMANCE

Width     Length    Wattage Selectable  Efficacy@4000K

Lumen@4000K



4inch

2ft

20W/15W/10W

85lm/w,850lm/ft

Up to 1700lm

4ft

40W/30W/20W

90lm/w,900lm/ft

Up to 3600lm

8ft

80W/60W/40W

90lm/w,900lm/ft

Up to 7200lm



6inch

2ft

20W/15W/10W

100lm/w,1000lm/ft

Up to 2000lm

4ft

40W/30W/20W

100lm/w,1000lm/ft

Up to 4000lm

8ft

80W/60W/40W

100lm/w,1000lm/ft

Up to 8000lm

Lumen output may vary by ±5% based on different CCT and wattage settings. Actual wattage may also vary by ±5%..

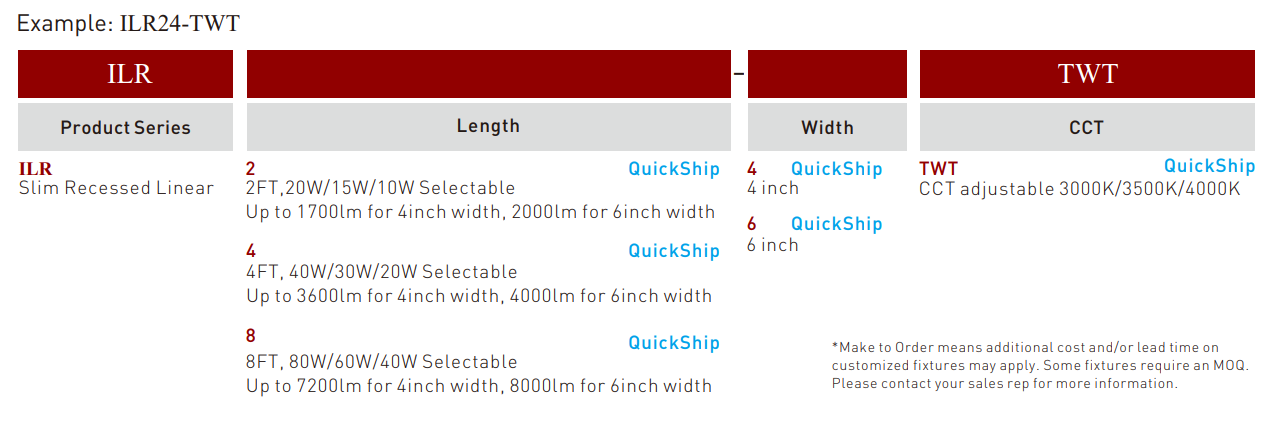

PRODUCT ORDERING GUIDE

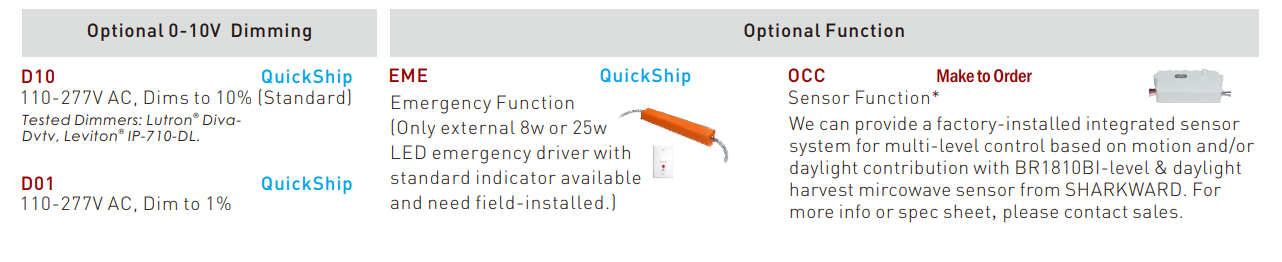

OPTIONAL ORDERING GUIDE

Construction

Extruded aluminum housing

Electrical

LED External
Dimming Powered by high efficiency LED driver, with a standard 0-10V dimming which continuous dims to 10% that works with many types of controls. Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-DL. Dim to 1% is available.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic driver is UL recognized and available for 110-277V AC.

LED System

CRI Minimum 80 color rendering index
CCT CCT adjustable from 3000K, 3500K and 4000K with a great color consistency.
LED life Minimum 50,000h with 87.8% of lumen maintenance in 25℃ ambient temperature, in compliance with IES LM-80 testing measurements.
Thermal Management Aluminum housing acting as the heat sink to maximize life.



Approvals

  • cULus listed for damp locations
  • 5-year Limited Warranty

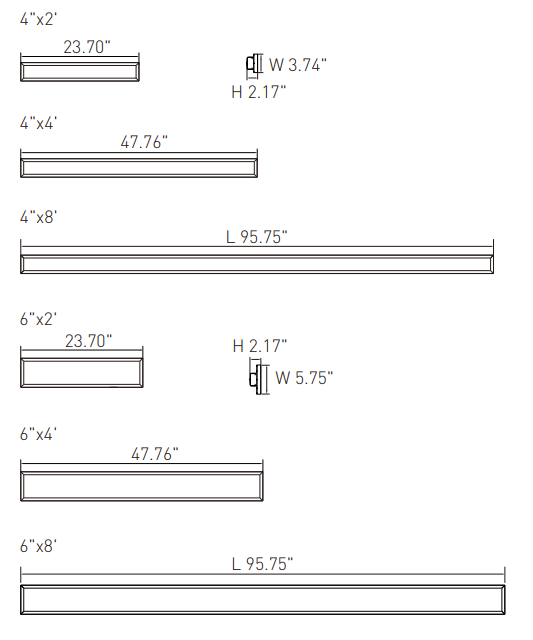

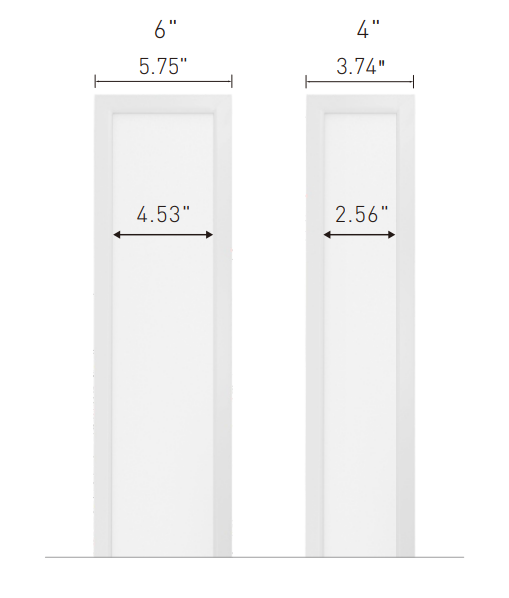

DIMENSION

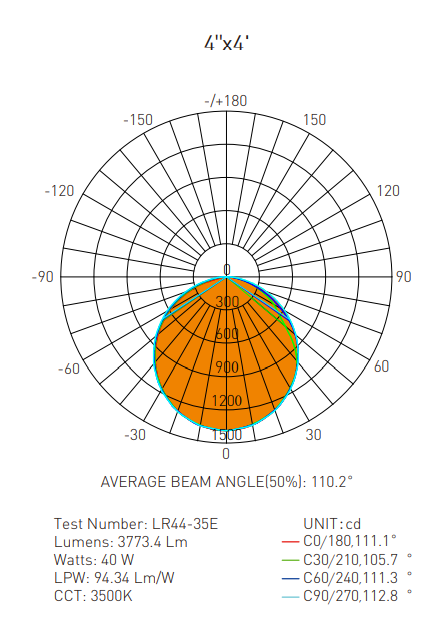

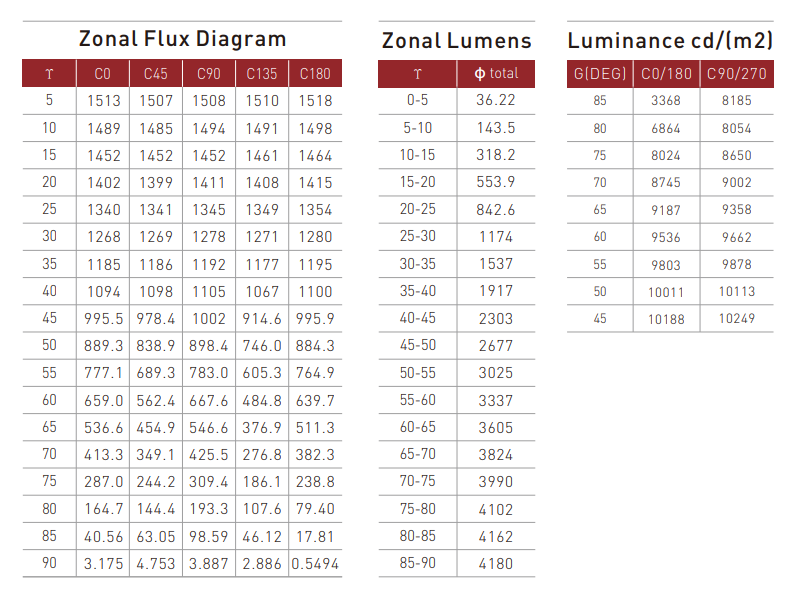

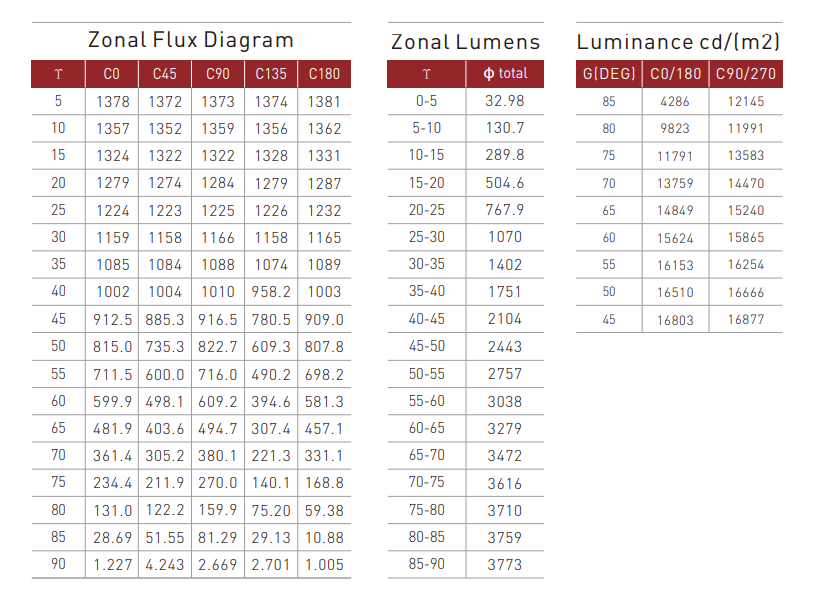

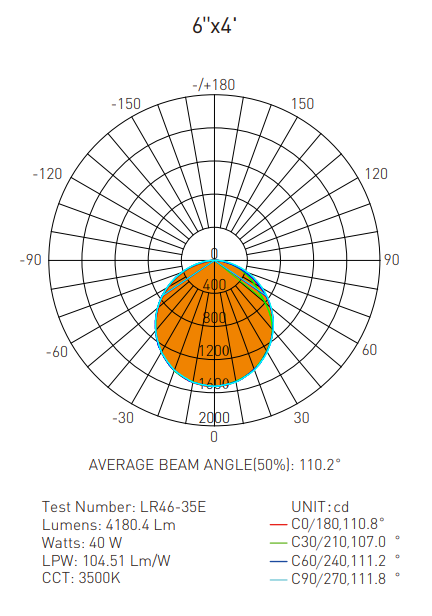

DISTRIBUTION DIAGRAM

Slim Architectural Linear 4&6INCH
