PERIMETER LIGHTING

Description:

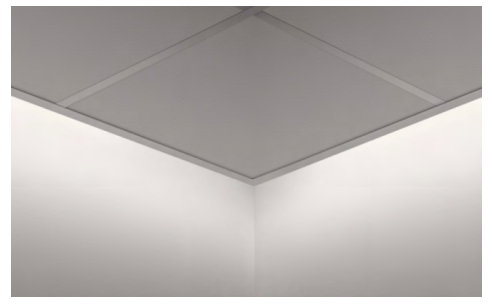

IUS LED Perimeter Lighting enhances interior architectural design by defining perimeters with elegant accent lighting. It creates a striking contrast between the illuminated center and edges of a space while seamlessly transitioning from light to shadow where walls meet ceilings. Designed for easy installation, it offers flexible mounting options, including threaded-rod and wall mounts. Available in flush, 2", 4", or 6" regressed optics, it also features optional telescoping sections to ensure a perfect fit in corner applications.

Contact Us

Feature

  • Standard fixture length options: 2', 3' and 4'

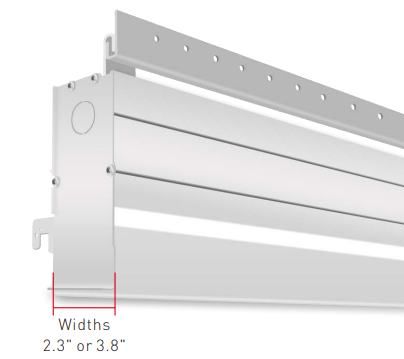

  • 2.3" and 3.8" width options
  • Standard Flush, 2", 4", and 6" regressed depth options
  • Adjustable illuminated telescoping for on-site flexibility
  • Compatible for drywall & T-grid ceiling
  • Continuous run supported, up to 40'
  • Lumen output: 500lm/ft, 750lm/ft and 1000lm/ft
  • Field adjustable CCT: 3000K, 3500K, 4000K

PERFORMANCE

Width

Length

Wattage Selectable

Efficacy

Lumen Output

CCT Adjustable



2.3inch

2FT

20W/15W/10W

Up to 1000m/ft

Up to 2000LM



3000K/3500K/4000K

3FT

30W/23W/15W

Up to 3000LM

4FT

40W/30W/20W

Up to 4000LM



3.8inch

2FT

20W/15W/10W

Up to 1100m/ft

Up to 2200LM



3000K/3500K/4000K

3FT

30W/23W/15W

Up to 3300LM

4FT

40W/30W/20W

Up to 4400LM

Remark:

Lumens are subjuect to diffuser with maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

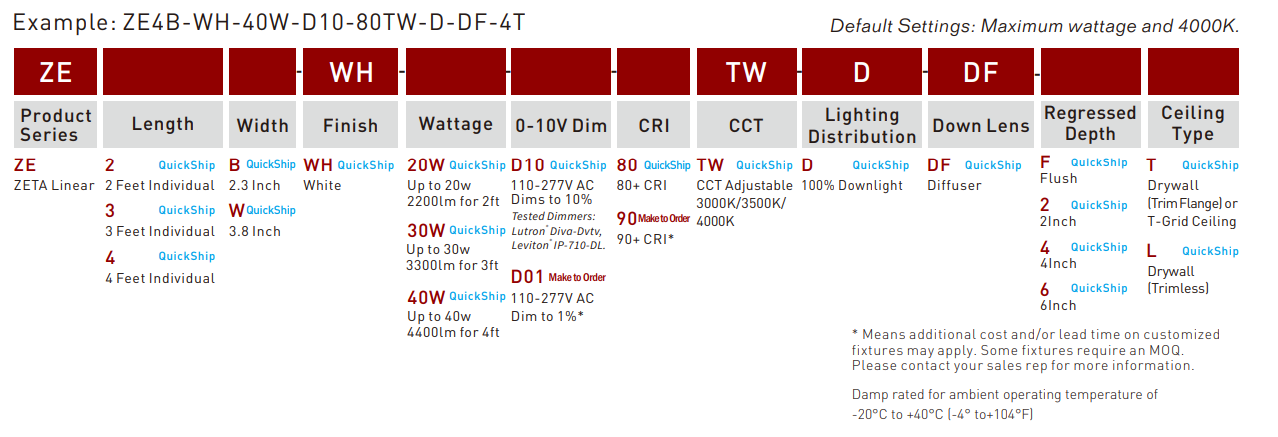

PRODUCT ORDERING GUIDE

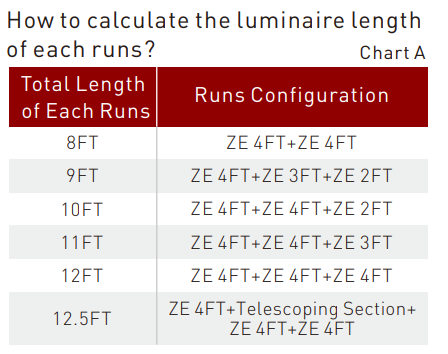

CUSTOM LINE OR SHAPE ORDERING GUIDE

For configurations provide nominal total length. Actual length calculated by factory. Please provide drawings to clearly illustrate corners and wall dimensions.

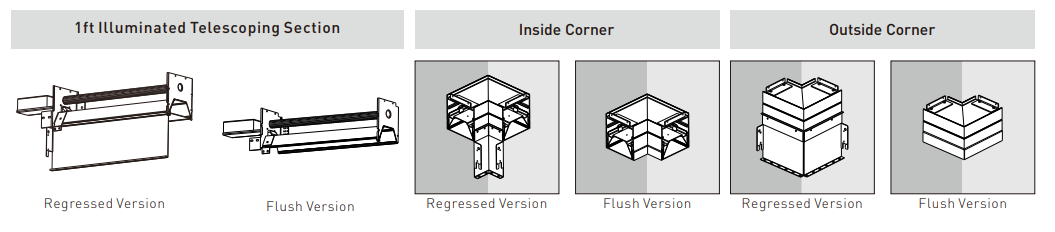

OPTIONAL PARTS

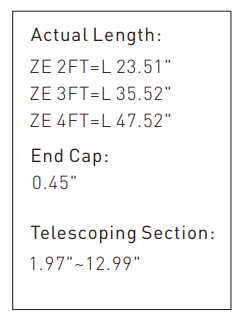

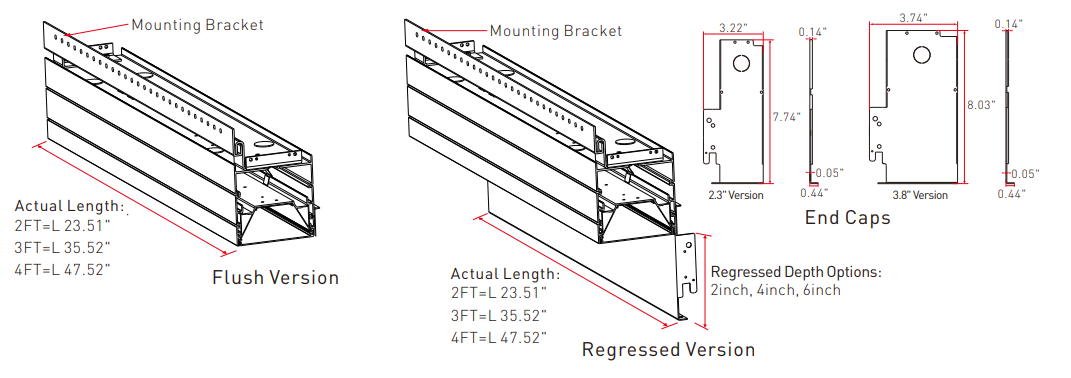

DIMENSIONS

OPTIONAL PRE-ASSEMBLED FIXTURE

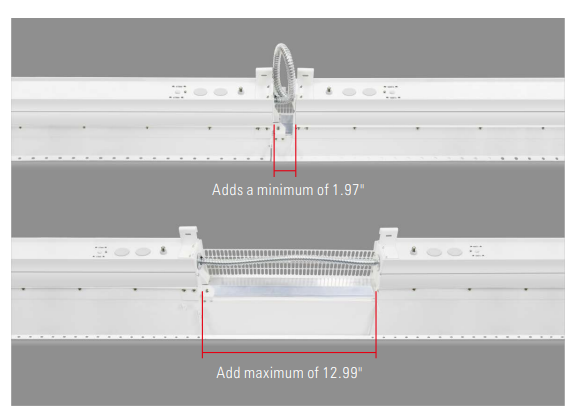

An adjustable, illuminated telescoping section designed for seamless corner applications. This flexible extension allows for precise customization to the run length for a perfect fit against adjacent walls.

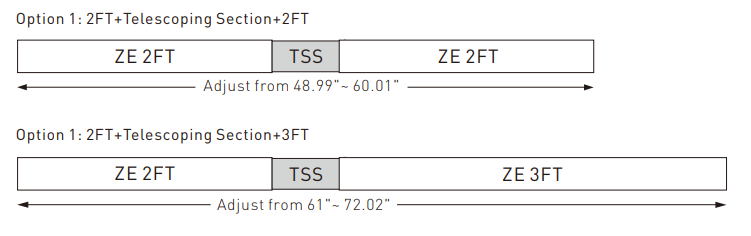

Pre-assembled Configuration

Telescoping Section must be installed between two fixtures. It comes pre-assembled with its two adjacent fixtures before delivery normally for easy installation.

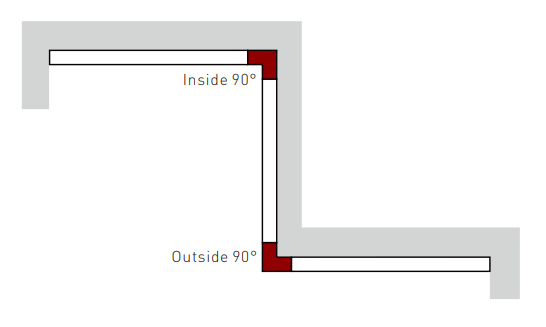

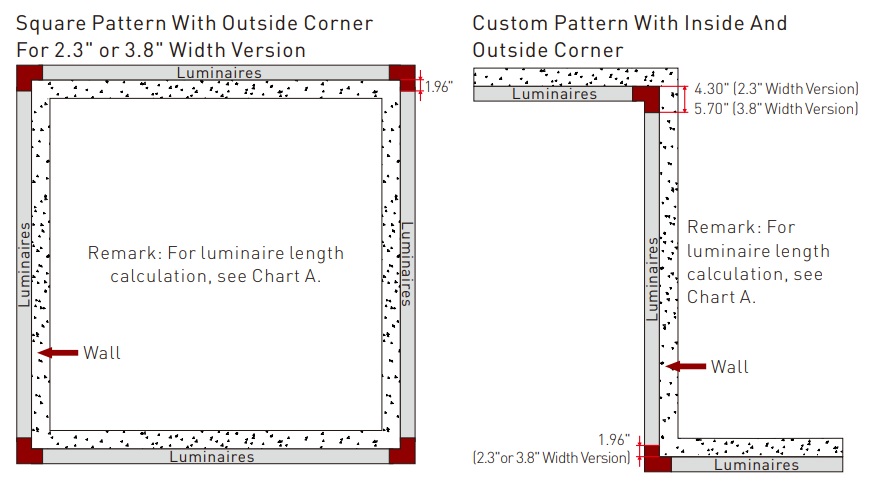

OPTIONAL PRE-BUILT 90° CORNERS

Patterns can be customized with illuminated 90° inside or outside corners, featuring standard 2' corner junction lengths. These fully illuminated, factory-built corners come in an all-in-one box for easy, streamlined installation.

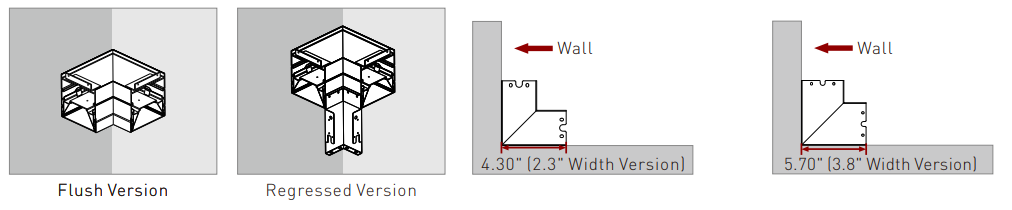

INSIDE CORNER

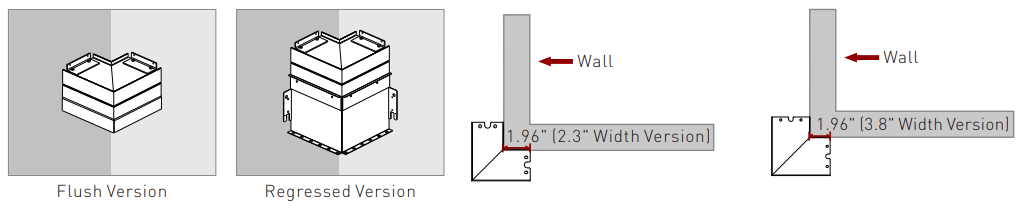

OUTSIDE CORNER

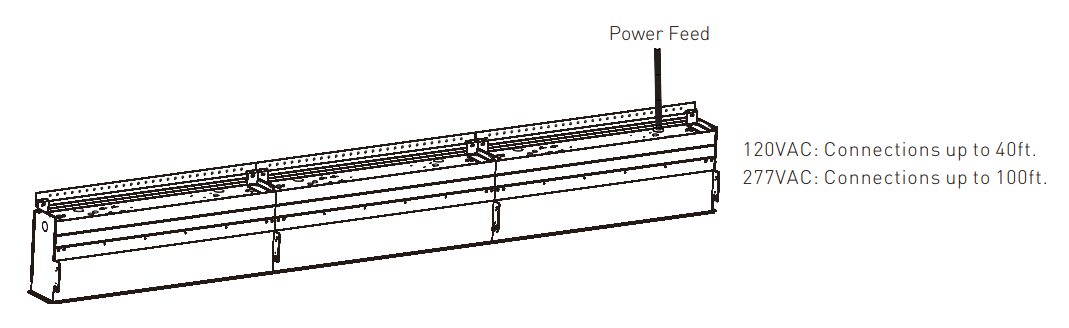

CONTINUOUS RUN

They feature a thoughtfully designed joining system for effortless and intuitive field assembly. Additionally, a single power feed can support multiple lamps, reducing installation time and lowering labor costs.

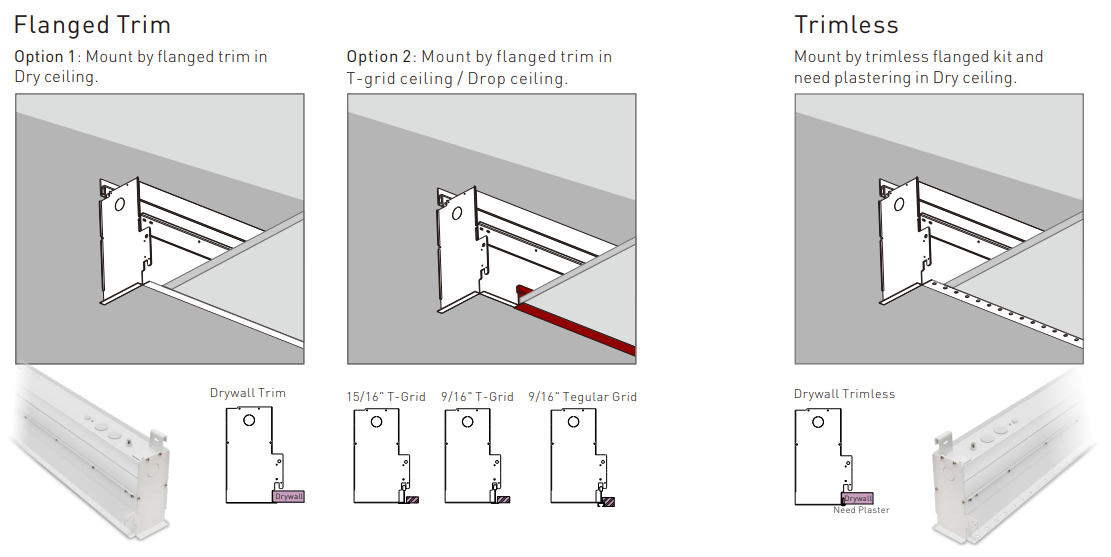

CEILING TYPE

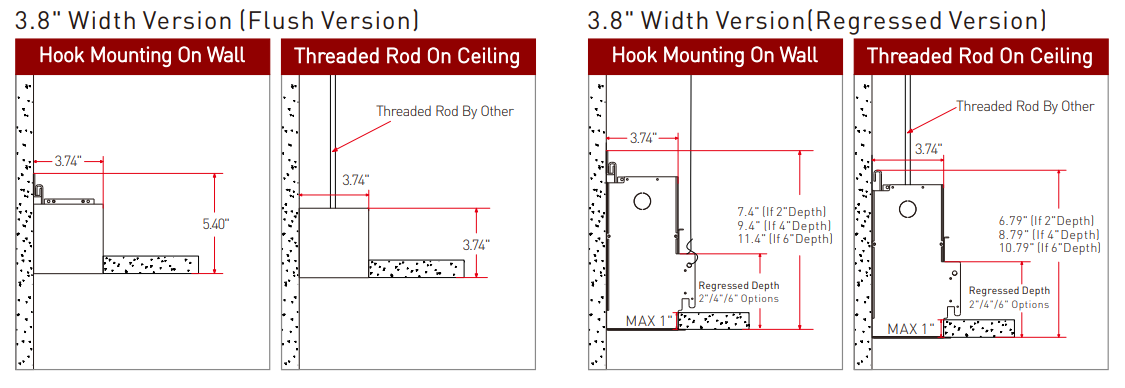

INSTALLATION

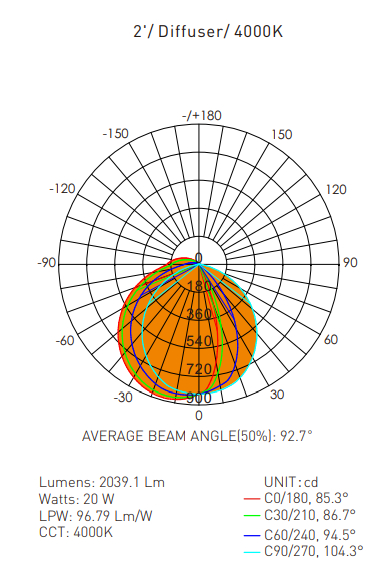

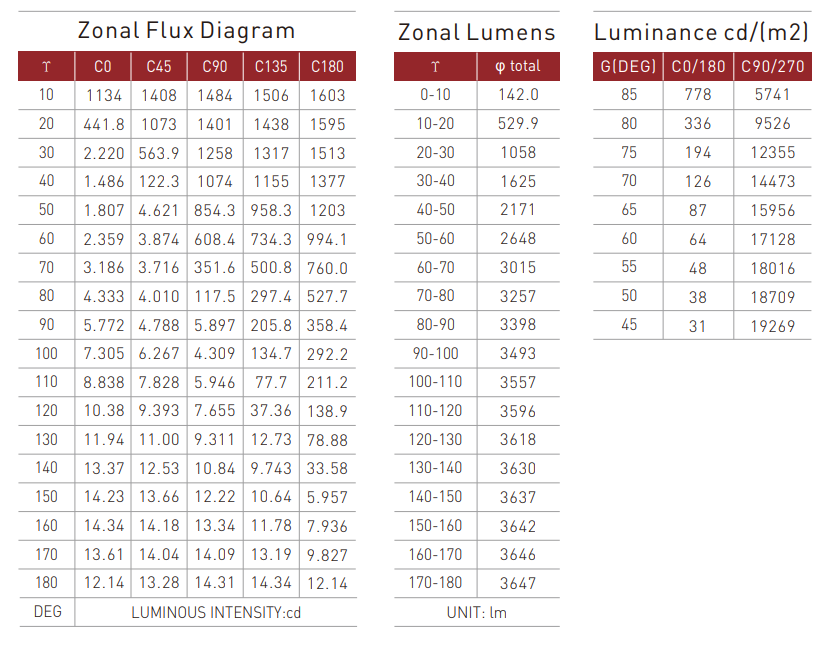

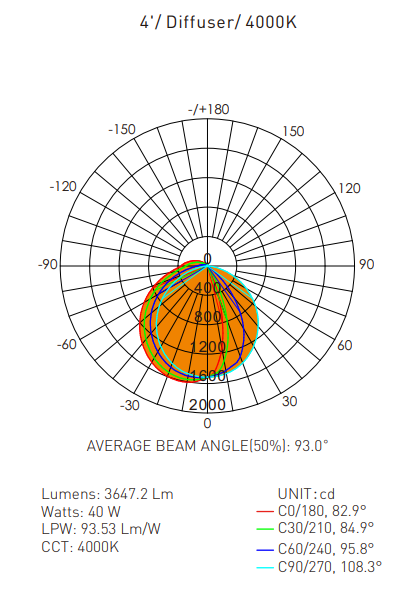

DISTRIBUTION DIAGRAM

PERIMETER LIGHTING
