IMWP13 Wall Pack low profile CCT & wattage selectable

Description:

Cast in a modern and low-profile design, MWP13 series is easily customized to fit every building’s design aesthetic and a mix of architectural styling and energy savings. Available in two sizes, the MWP13 family delivers 2,750 to 15,000 lumens with a wide, uniform distribution. It’s ideal for illuminating commercial office buildings, warehouses, campuses, shopping malls and other office complexes.

Construction

Sealed die-casting profile for outdoor applications.
Casting thermally conducts LED heat to optimize performance and long life.
The design with zero uplight meets the requirements of dark sky.

Optics

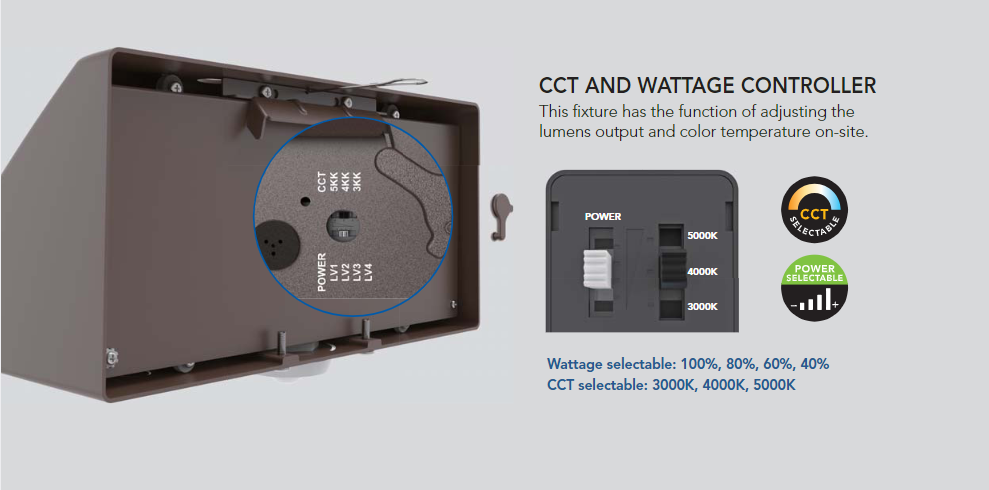

Switchable color temperature 3000K/4000K/5000K.
Adjustable lumen output with four lumen settings 100%, 80%, 60%, 40%.
Scalable Lumen Packages from 2,750 to 15,000 Lumens.
Zero uplight distributions using individual acrylic.
High performance UV stabilized optical grade polymer refractor lenses to achieve desired distribution optimized to get maximum spacing, target lumens and a superior lighting uniformity.

Electrical

Universal 120-277 VAC input voltage.
0-10V dimming standard for a dimming range of 100% to 10%.
Both drivers have a power factor >90%,THD <20%.
Operating Temperature Range: -40°C to 40°C (-40˚F - + 104˚F).

Controls

Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor or photo control.
Optional Bluetooth sensor or Bluetooth controller.
Silvair Luminaire Level Lighting Control (LLLC) optional
Sharkward Luminaire Level Lighting Control (LLLC) optional.
Haisen Luminaire Level Lighting Control (LLLC) optional.
Also compatible with 3rd party smart network control system.
High End Trim
Optional Emergency Battery

Lifespan

Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

Five-year limited warranty.

Certifications

UL cUL wet location listed.
DesignLights Consortium™ Qualified.

Note：DesignLights Consortium™ Qualified and classified for DLC Premium (all lumen packages), refer to www.designlights.org for details.

Note

Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.

PHOTOMETRICS

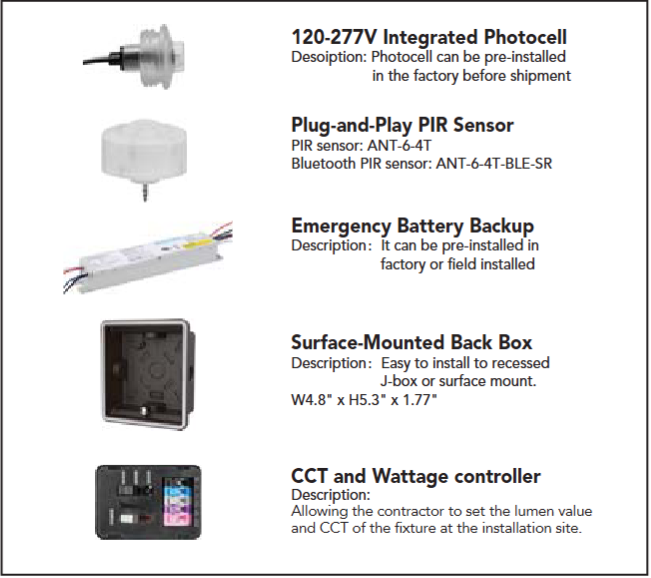

ACCESSORIES

PERFORMANCE DATA

IMWP13 45W
SWITCH SETTING	SYSTEM WATTS	CRI	3000K		4000K		5000K
SWITCH SETTING	SYSTEM WATTS	CRI	LUMENS	LPW	LUMENS	LPW	LUMENS	LPW
100%	45W	70	6500lm	144lm/W	7000lm	156lm/W	6750lm	150lm/W
80%	36W	70	5300lm	147lm/W	5700lm	158lm/W	5500lm	153lm/W
60%	27W	70	4050lm	150lm/W	4400lm	163lm/W	4200lm	156lm/W
40%	18W	70	2750lm	153lm/W	3000lm	167lm/W	2900lm	161lm/W

IMWP13 70W
SWITCH SETTING	SYSTEM WATTS	CRI	3000K		4000K		5000K
SWITCH SETTING	SYSTEM WATTS	CRI	LUMENS	LPW	LUMENS	LPW	LUMENS	LPW
100%	70W	70	10500lm	150lm/W	11600lm	166lm/W	11000lm	157lm/W
80%	56W	70	8700lm	155lm/W	9600lm	171lm/W	9000lm	161lm/W
60%	42W	70	6700lm	160lm/W	7400lm	176lm/W	7000lm	167lm/W
40%	28W	70	4700lm	168lm/W	5100lm	182lm/W	4800lm	171lm/W

IMWP13 95W
SWITCH SETTING	SYSTEM WATTS	CRI	3000K		4000K		5000K
SWITCH SETTING	SYSTEM WATTS	CRI	LUMENS	LPW	LUMENS	LPW	LUMENS	LPW
100%	95W	70	13800lm	145lm/W	15000lm	158lm/W	14300lm	151lm/W
80%	76W	70	11300lm	149lm/W	12300lm	162lm/W	11700lm	154lm/W
60%	57W	70	8700lm	153lm/W	9400lm	165lm/W	8900lm	156lm/W
40%	38W	70	5900lm	155lm/W	6400lm	168lm/W	6000lm	158lm/W

ELECTRICAL DATA

Number Of Drivers	Driver Current (mA)	Nominal Power (W)	INPUT VOLTAGE (V)	CURRENT (Amps)
1	680	45	120	0.38
		45	208	0.22
		45	240	0.19
		45	277	0.16
1	1050	70	120	0.58
		70	208	0.34
		70	240	0.29
		70	277	0.25
1	850	95	120	0.79
		95	208	0.46
		95	240	0.40
		95	277	0.34

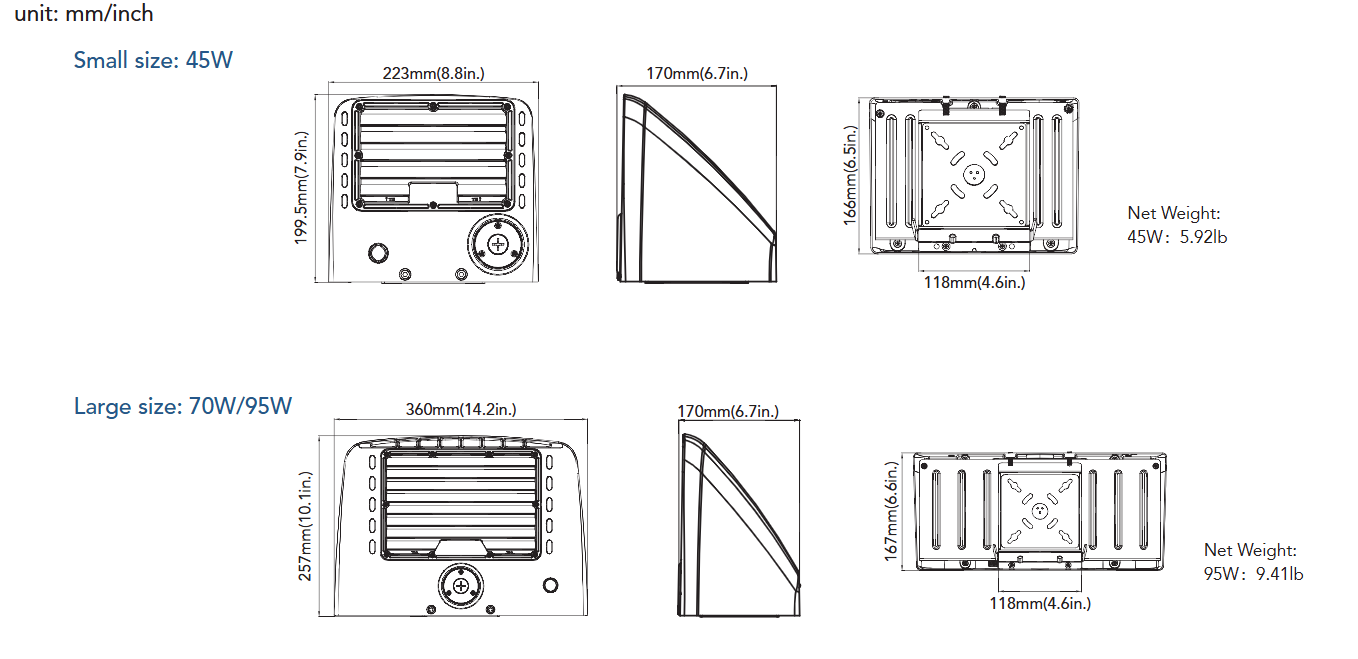

DIMENSIONS

Order Guide

ORDERING GUIDE Example: IMWP13 45W 27V DDK Y Y Y Y Y

IUS

Fixture Type

Wattage

Voltage

CCT

Finish

Photocell (Option)

Sensor (Option)

Emergency Battery (Option)

Internal Code

MWP13

Wall Pack Series

45 45W

70 70W

95 95W

27V 120-277V

DDK

Adjustable color temperature

D Dark Bronze

B Black

W White

120-277V Photocell

Blank

Without Photocell

With Sensor

Blank

Without Sensor

Emergency Battery

Blank

Without Emergency Battery

Blank Alphanumeric

MOUNTING

	The external portable mounting plate makes installation super easy and simple.There's no need to openfixture housing, nor drill on housing, which greatly minimize the risk of water ingression.
	The optional external Surface-Mounted Back Box can not only support standard J-box installation but also support outer-surface conduits wiring through the 1/2'' knockouts on 4 sides without a J-box.
