IMRFMMS 7”/9”/12” Surface Mount with Sensor
Description:
Recessed lighting and bigger flush mounts are commonly being replaced by these edge-lit flush mounts in order to maintain ceiling height. The wide illumination is ideal for lighting corridors and other small areas, and it mounts over junction boxes of conventional size. Smaller sizes are also treated with a moist location for outdoor use, and they come in a variety of sizes.
Product Information
|
Model No. |
Product Name |
Certification |
Watts |
Lumens |
CRI |
VOLTAGE |
DIMMING |
CCT |
LIFE |
OPERATING TEMP. |
|
IMRFMMS-712-5CCT |
7" Surface mount with Sensor |
ETL/T24 |
12W |
960LM |
80+ |
120V |
TRIAC |
5CCT |
>50,000hrs |
-4°F ~ 104°F |
|
IMRFMMS-918-5CCT |
9" Surface mount with Sensor |
ETL/T24 |
18W |
1440LM |
80+ |
120V |
TRIAC |
5CCT |
>50,000hrs |
-4°F ~ 104°F |
|
IMRFMMS-1224-5CCT |
12" Surface mount with Sensor |
ETL/T24 |
24W |
1680LM |
80+ |
120V |
TRIAC |
5CCT |
>50,000hrs |
-4°F ~ 104°F |

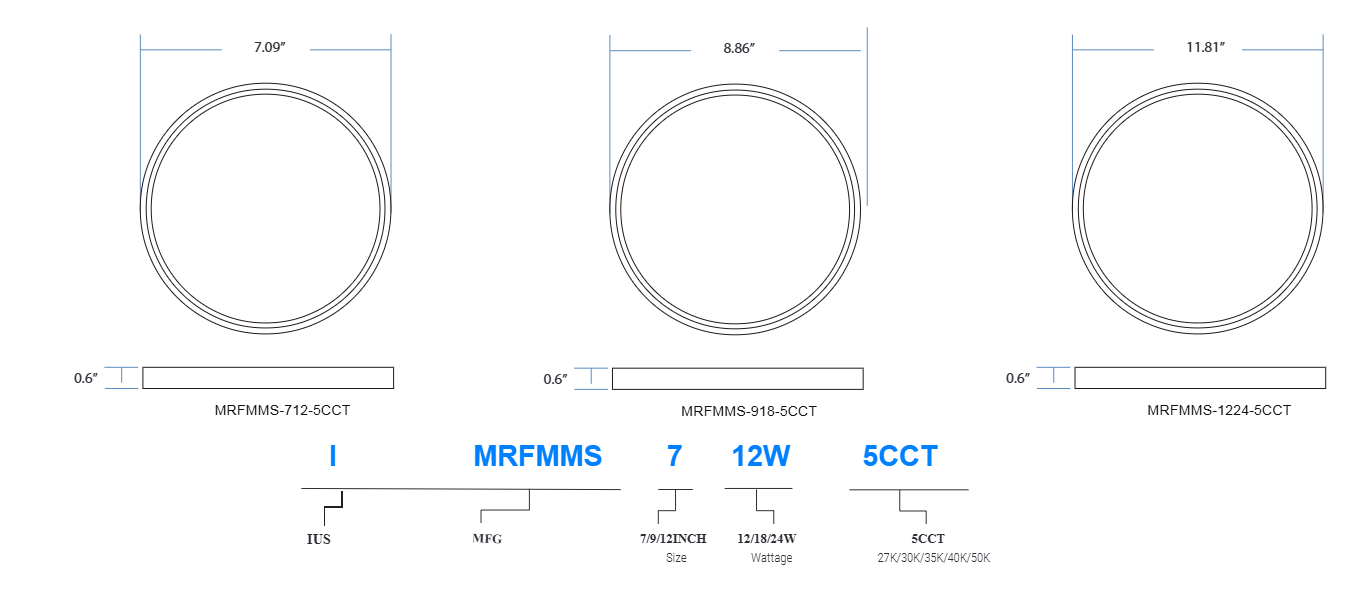

DIMENSIONS
CONSTRUCTION
- Unit includes metal housing , LED array, heat sink lens, with white plastic trim cover
OPTICS
- High quality PC lens
- Efficiency LED Array.
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable driver.
- Smooth flicker free deep dimming to 10%
MOUNTING
- Surface mount on junction box.
- Surface mounting bracket included.
LISTING
- ETL Listed, T24 Listed, Suitable for Wet Locations
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
Terms and conditions may apply.
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.
