IMRFM-BL 7" Surface Mount w/back light
Description:
Recessed lighting and bigger flush mounts are commonly being replaced by these edge-lit flush mounts to maintain ceiling height. The wide illumination is ideal for lighting corridors and other small areas, and it mounts over a conventional size junction box. The IMRFM series is suitable for wet locations, and It also offers adjustable wattage and CCT (2700K/3000K/3500K4000K/5000K)
PRODUCT INFORMATION
|
Model No. |
Product Name |
Lumens |
Watts |
Efficacy |
CRI |
VOLTAGE |
DIMMING |
CCT |
LIFE |
OPERATING TEMP. |
|
IMRFM-BL-715-5CCT |
7" round Surface mount with back light |
960 |
15W |
68.6m/w |
80+ |
120V |
TRIAC |
5CCT |
>50,000hrs |
-4°F ~ 104°F |

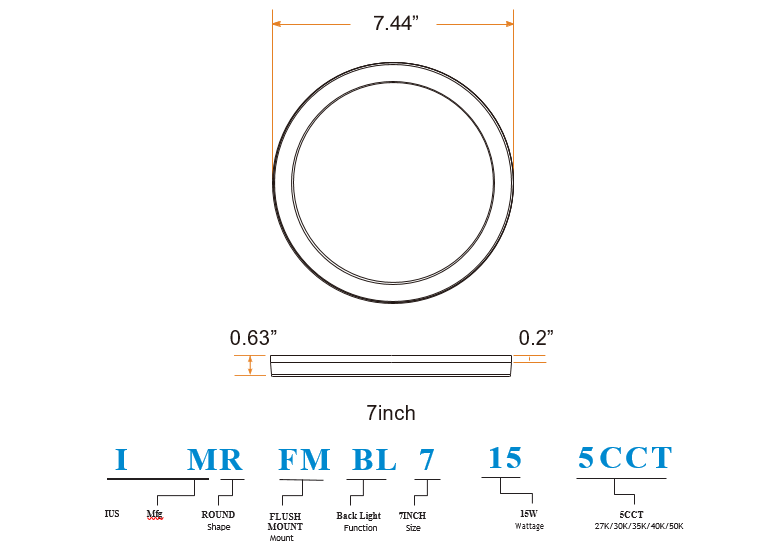

DIMENSION

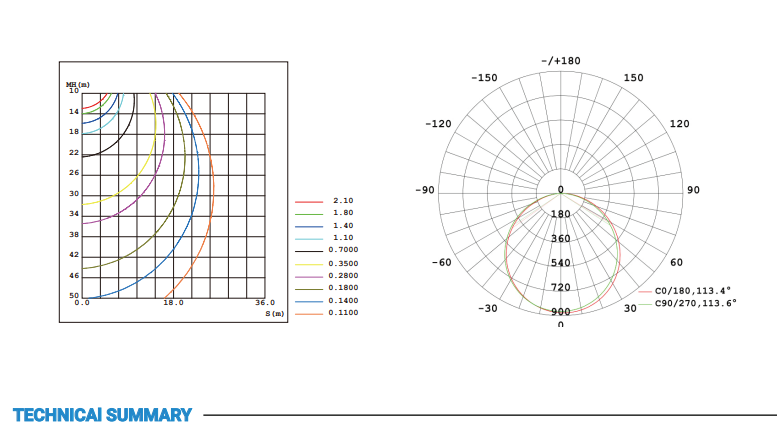

PHOTOMETRY

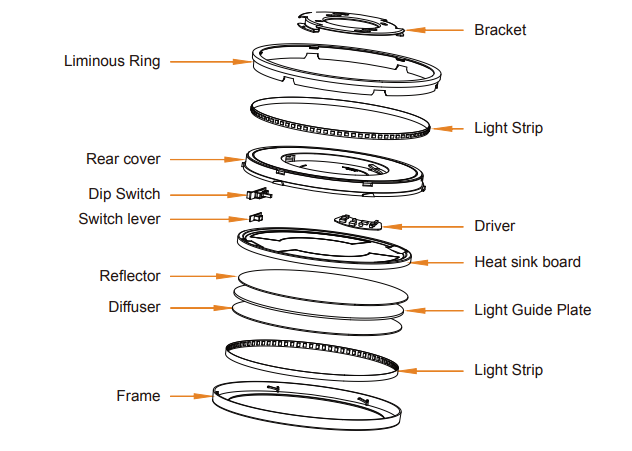

CONSTRUCTION
- Unit includes die-cast metal housing,LED array, heat sink, lens and metal trim with white, brush nickle and bronze finish.
OPTICS
- High quality PC lens
- Efficiency LED array
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable driver
- Smooth flicker free deep dimming to 10%

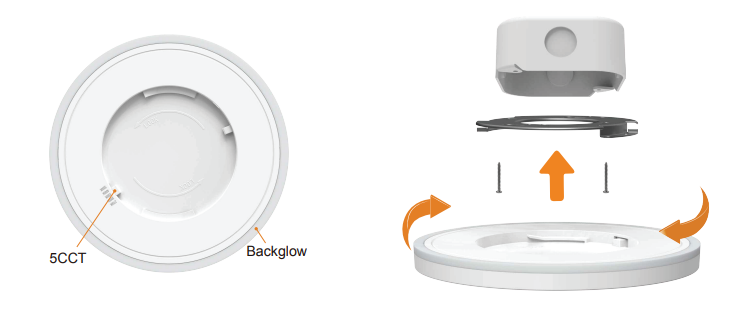

MOUNTING
- Surface mount on junction box.
- Surface mounting bracket included.
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations, Title 22-JA8-2022, RoHS, Air-Tite Certified
WARRANTY
- 5 years manufacturer warranty, consult factory for more details. Terms and conditions may apply.
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M
FEATURES
ACCESSORIES
IMRFM-BL 7" Surface Mount w/back light
