IMRFM 5"/7"/9"/12" Round Flush Mount ceiling light
Description:
Recessed lighting and bigger flush mounts are commonly being replaced by these edge-lit flush mounts in order to maintain ceiling height. The wide illumination is ideal for lighting corridors and other small areas, and it mounts over junction boxes of conventional size. Smaller sizes are also treated with a moist location for outdoor use, and they come in a variety of sizes.
Product Information
| Model No. | Product Name | Lumens | Watts | Efficacy | CRI | VOLTAGE | DIMMING | CCT | LIFE | OPERATING TEMP. |
|---|---|---|---|---|---|---|---|---|---|---|
| IMRFM511-5CCT | 5" round slim Surface mount | 700 | 11W | 63.6lm/w | 90+ | 120V | TRIAC | 5CCT | >50,000hrs | -4°F ~ 104°F |
| IMRFM714-5CCT | 7" round slim Surface mount | 960 | 14W | 68.6lm/w | 90+ | 120V | TRIAC | 5CCT | >50,000hrs | -4°F ~ 104°F |
| IMRFM920-5CCT | 9" round slim Surface mount | 1400 | 20W | 70lm/w | 90+ | 120V | TRIAC | 5CCT | >50,000hrs | -4°F ~ 104°F |
| IMRFM1225-5CCT | 12" round slim Surface mount | 2000 | 25W | 80lm/w | 90+ | 120V | TRIAC | 5CCT | >50,000hrs | -4°F ~ 104°F |

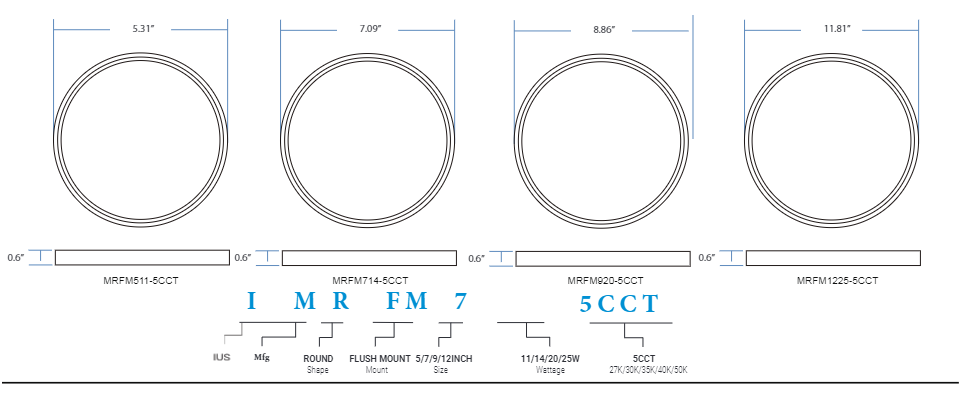

DIMENSION

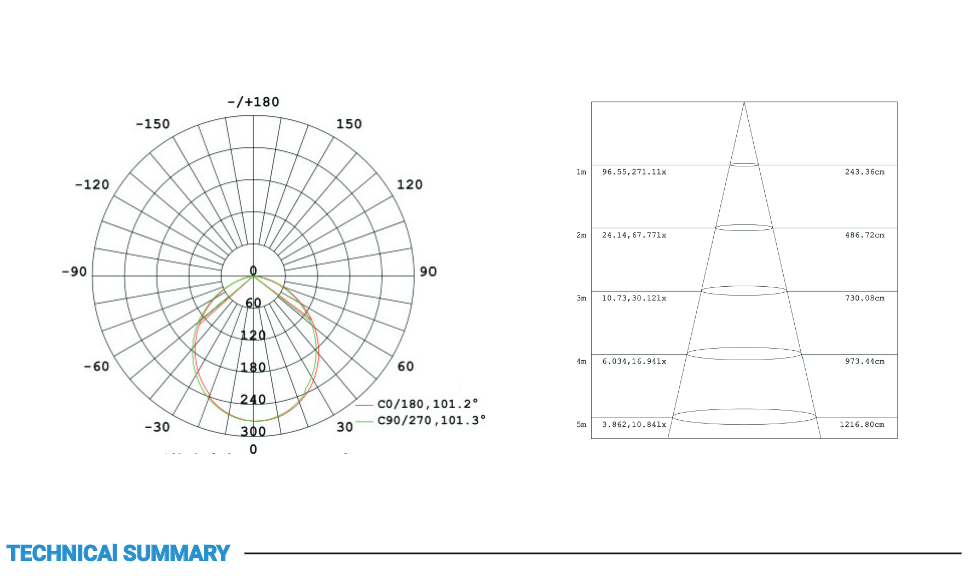

PHOTOMETRY
CONSTRUCTION
- Unit includes metal housing , LED array, heat sink lens, with white plastic trim cover.
OPTICS
- High quality PC lens
- Efficiency LED array
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable driver
- Smooth flicker free deep dimming to 10%

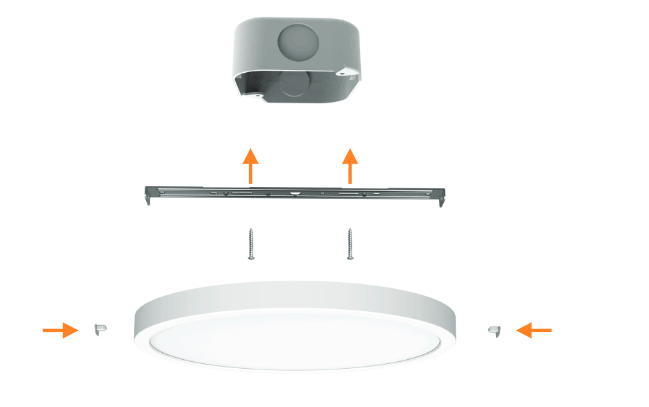

MOUNTING
- Surface mount on junction box.
- Surface mounting bracket included.
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations, Title 24-JA8-2022,RoHS, Air-Tite Certified.
WARRANTY
- 5 years manufacturer warranty, consult factory for more details. Terms and conditions may apply.
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M
FEATURES

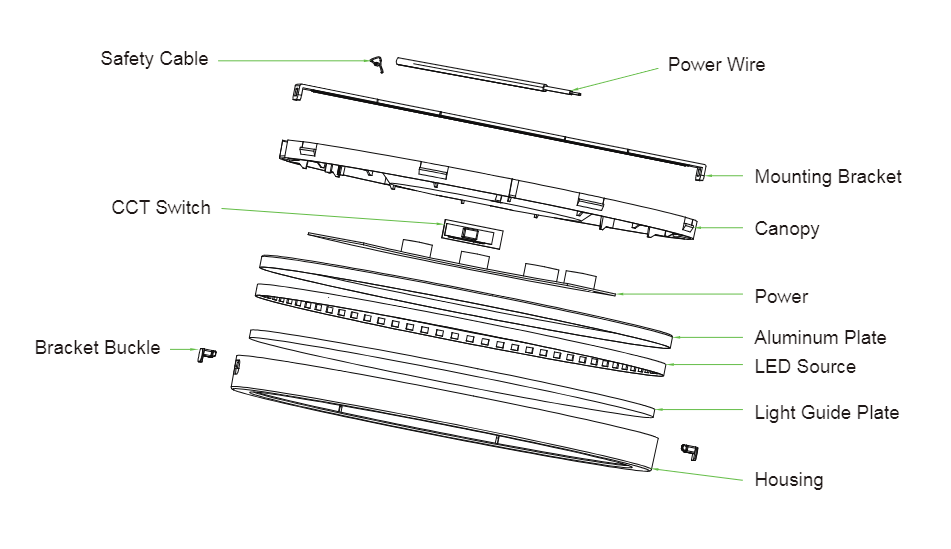

EXPLOSIVE VIEW
IMRFM 5"/7"/9"/12" Round Flush Mount ceiling light
