IMPL01 LED Post Top Light CCT & Wattage Selectable
Description:
The post top provides a unique, scalable lighting solution targeted for 8’ to 20’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters and pathways. The excellent optical design that deliver the smooth light with a very good uniformity. The structure is clean and more popular, promotes harmony between the outdoor lighting and architecture
Contact UsConstruction
- Rugged die-cast aluminum housing secures the thermally conductive LED panel and electrical cha.
- Show off urban style by the simple shape and the solid material.
- Housing is completely sealed against moisture and environmental contaminants.
Optics
- Single CCT 4000K and 5000K are available for standard version, and the 130W offer the color tunable version, the CCT can be changed to 3000K/ 4000K/5000K.
- Scalable Lumen Packages from 5,400 to 17,200 Lumens.
- High performance UV stabilized optical grade polymer optic lenses to achieve desired distribution optimized to get target lumens and a superior lighting uniformity.
- The optics can conform to dark sky requirement.
Electrical
- Rugged die-cast aluminum housing secures the thermally conductive LED panel and electrical cha.
- Standard with 0-10V dimming allowing for 10% to 100% dimming.
- The 130W optional for 4 positions wattage regulation: 130W, 87W, 70W, 45W.
- THD: ≤20%.
- Power Factor: ≥90%
Controls
- Optional occupancy sensor.
- Optional Photocell.
Ambient Temperature
- Ambient operating temperature -40°C to 45°C (-40°F to 113°F).
Lifespan
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Five-year warranty.
Certifications
- UL cUL wet location listed.
- DesignLights Consortium™ Qualified.
Note: Please refer to the DLC website for specific product qualifications at www.designlights.org.
Finish
- It’s available in black or optional dark bronze, silvery gray or white.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.

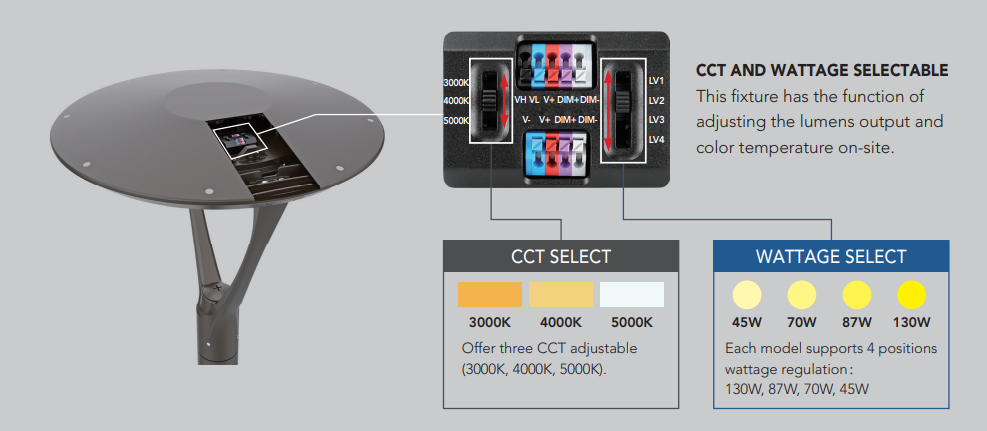

CCT ANDWATTAGE SELECTABLE

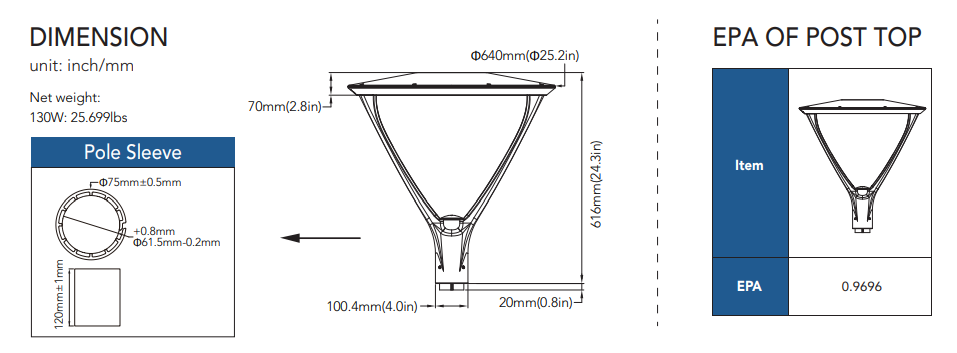

DIMENSION

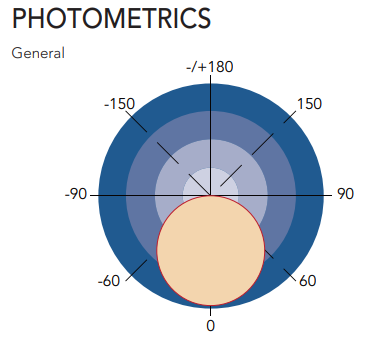

PERFORMANCE DATA (@ Single CCT)
|
SYSTEM WATTS |
VOLTAGE |
CRI |
LUMENS 3000 K |
LPW 3000 K |
LUMENS 4000 K |
LPW 4000 K |
LUMENS 5000 K |
LPW 5000 K |
|
45W |
120 -277 VAC |
70 |
5400 lm |
120 lm/W |
5450 lm |
121 lm/W |
5500 lm |
122 lm/W |
|
70W |
120 -277 VAC |
70 |
8400 lm |
120 lm/W |
8450 lm |
121 lm/W |
8500 lm |
121 lm/W |
|
87W |
120 -277 VAC |
70 |
10500 lm |
121 lm/W |
10600 lm |
122 lm/W |
10600 lm |
122 lm/W |
|
130 W |
120 -277 VAC |
70 |
16000 lm |
123 lm/W |
16300 lm |
125 lm/W |
16300 lm |
125 lm/W |
ADJUSTABLE LUMEN OUTPUT TABLE
|
SWITCH SETTING |
SETTING WATTS |
VOLTAGE |
CRI |
LUMENS 3000 K |
LPW 3000 K |
LUMENS 4000 K |
LPW 4000 K |
LUMENS 5000 K |
LPW 5000 K |
|
LV1 |
130W |
120-277VAC |
70 |
16000 lm |
123 lm/W |
17200 lm |
132 lm/W |
16300 lm |
125 lm/W |
|
LV2 |
87W |
120-277VAC |
70 |
11600 lm |
133 lm/W |
12000 lm |
138 lm/W |
11800 lm |
136 lm/W |
|
LV3 |
70W |
120-277VAC |
70 |
9700 lm |
139 lm/W |
10000 lm |
143 lm/W |
9900 lm |
141 lm/W |
|
LV4 |
45W |
120-277VAC |
70 |
6500 lm |
144 lm/W |
6700 lm |
149 lm/W |
6600 lm |
147 lm/W |
ELECTRICAL DATA
|
NUMBER OF DRIVERS |
DRIVER CURRENT ( mA) |
NOMINAL POW ER ( W) |
INPUT VOLTAGE ( V ) |
CURRENT ( Amps) |
|
1 |
1120 |
45 |
120 |
0.38 |
|
45 |
208 |
0.22 |
||
|
45 |
240 |
0.19 |
||
|
45 |
277 |
0.16 |
||
|
1 |
1750 |
70 |
120 |
0.58 |
|
70 |
208 |
0.34 |
||
|
70 |
240 |
0.29 |
||
|
70 |
277 |
0.25 |
||
|
2 |
2240 |
87 |
120 |
0.73 |
|
87 |
208 |
0.42 |
||
|
87 |
240 |
0.36 |
||
|
87 |
277 |
0.31 |
||
|
2 |
3500 |
130 |
120 |
1.08 |
|
130 |
208 |
0.63 |
||
|
130 |
240 |
0.54 |
||
|
130 |
277 |
0.47 |
ACCESSORIES (Optional)
|
|
PIR Motion Sensor, 120-277V USE: Sensor can be pre-installed in factory or field installed. |
|
Photocell - 120V-277V 347V/480V USE: Photocell is field installed |
ORDERING GUIDE
|

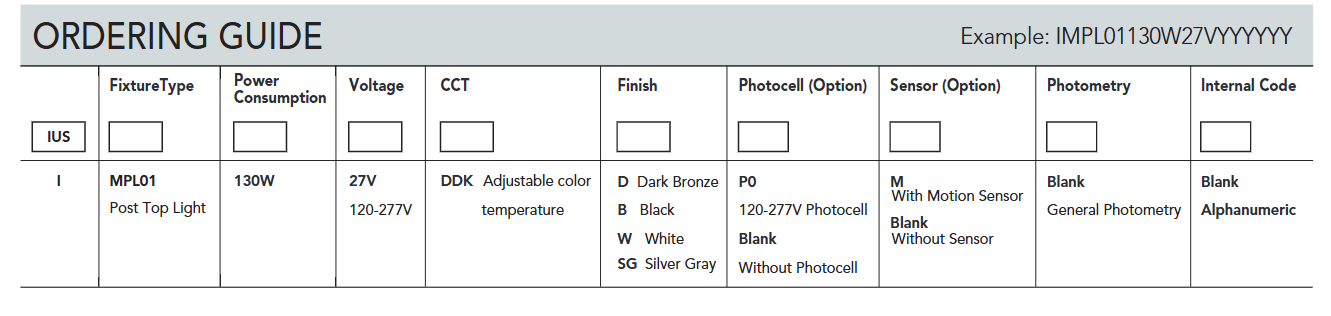

ORDERING GUIDE |
Example: IMPL0170W27VYYYYYY | ||||||||
|
IUS |
Fixture Type |
Power Consumption |
Voltage |
CCT |
Finish |
Photocell (Option) |
Sensor (Option) |
Photometry |
Internal Code |
|
I |
MPL01 |
45W |
27V |
DDK Adjustable color temperature 40K 4000K 50K 5000K |
D Dark Bronze |
P0 |
M With Motion Sensor |
Blank |
Blank |
|
Post Top Light |
70W |
120-277V |
B Black |
120-277V Photocell |
Blank Without Sensor |
General Photometry |
Alphanumeric |
||
|
87W |
W White |
Blank |
|||||||
|
130W |
Without Photocell |
||||||||
Note: Only 130W optional for DDK.
IMPL01 LED Post Top Light CCT & Wattage Selectable
