Construction
- Standard with 2ft, 4ft,8ft and can be extended by row connector and occlusion block.
- Fixture channel,cover and plates are formed from cold rolled steel.
- Housing components act as heat sink for LED heat dissipation.

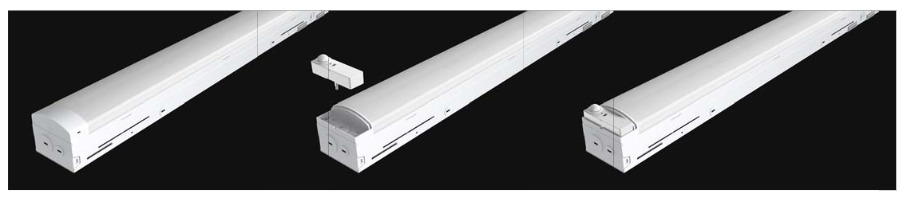

- Optional internal pluggable wiring harness for reduced labor cost in row mounting applications.
- Fixture may be surface or suspension mounted with appropriate mounting options (see accessories)
Optics

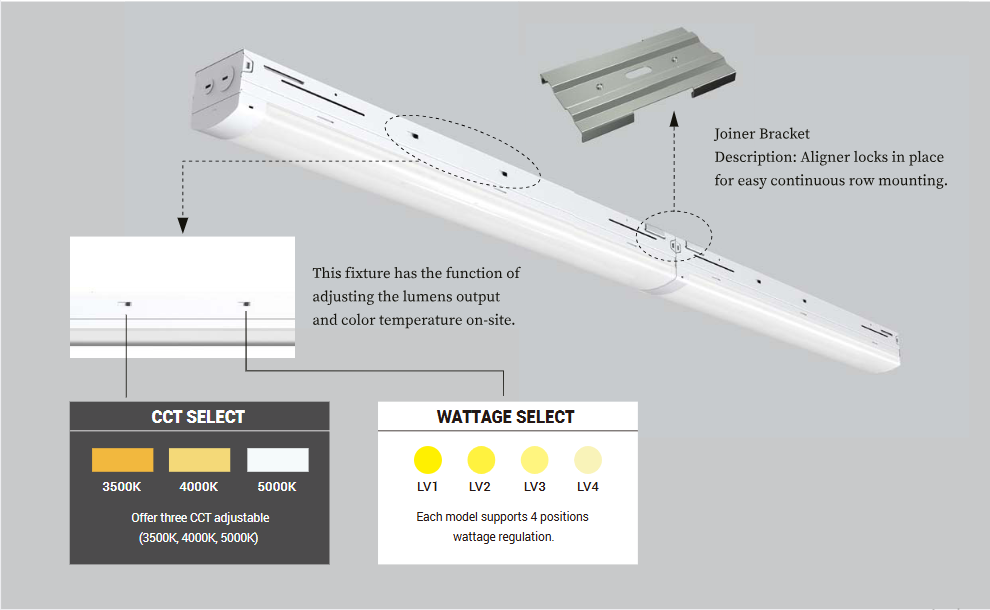

- Light engines are available in color selectable version, the CCT can be changed to three CCTs (3500K, 4000K, 5000K).
- Scalable Lumen Packages from 3,360 to 12,300 Lumens with efficacy up to 140 lm/W.
- <5 SDCM color consistency, 80CRI.
- Features acrylic lens is designed to shape the light uniformity and comfortable light.
Electrical
- Universal 120-277 VAC input voltage.
- Wattage adjustable: 10W/16W/20W/24W; 22W/28W/34W/40W; 46W/54W/62W/70W; 50W/60W/70W/86W.
- 0-10V dimming standard for a dimming range of 100% to 10%.
- PF >90%, THD <20%.
- Operating Temperature Range: -20°C to 40°C (-4°F - +104°F).
Note: Operating with emergency battery temperature range: 10°C to 40°C (+50°F-+104°F).
Controls
- Optional PIR Sensor or Bluetooth Smart Control Sensor available for further energy saving
- The option sensor receptacle can quickly install sensors on site.
- Optional for Emergency Battery Backup.
Installation
- Surface (default)
- V-Hook(sold separately)
- Aircraft cable (sold separately)
- T bar bracket (sold separately)
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Five-year limited warranty.
Certifications
- UL CUL damp location listed.
Applications
- Suitable for commercial,warehouses,parking lot,corridor,retail spaces.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C (±5 C) specifications subject to change without notice.
Performance data
|
IMLF04 24W 2FT |
|||||||
|
SETTING |
SYSTEM WATTS |
3500K (80CRI) |
4000K (80CRI) |
5000K (80CRI) |
|||
|
LUMENS (lm) |
LPW (lm/w) |
LUMENS (lm) |
LPW (lm/w) |
LUMENS (lm) |
LPW (lm/w) |
||
| LV1 | 24W | 3264 | 136 | 3408 | 142 | 3360 | 140 |
| LV2 | 20W | 2760 | 138 | 2900 | 145 | 2840 | 142 |
| LV3 | 16W | 2240 | 140 | 2368 | 148 | 2304 | 144 |
| LV4 | 10W | 1430 | 143 | 1520 | 152 | 1470 | 147 |
|
IMLF04 40W 4FT |
|||||||
| SETTING | SYSTEM WATTS | 3500K (80CRI) | 4000K (80CRI) | 5000K (80CRI) | |||
| LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | ||
| LV1 | 40W | 5440 | 136 | 5720 | 143 | 5600 | 140 |
| LV2 | 34W | 4726 | 139 | 4964 | 146 | 4828 | 142 |
| LV3 | 28W | 3976 | 142 | 4172 | 149 | 4060 | 145 |
| LV4 | 22W | 3190 | 145 | 3366 | 153 | 3256 | 148 |
|
IMLF04 70W 8FT |
|||||||
| SETTING | SYSTEM WATTS | 3500K (80CRI) | 4000K (80CRI) | 5000K (80CRI) | |||
| LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | ||
| LV1 | 70W | 9520 | 136 | 10010 | 143 | 9800 | 140 |
| LV2 | 62W | 8618 | 139 | 9052 | 146 | 8866 | 143 |
| LV3 | 54W | 7668 | 142 | 8100 | 150 | 7884 | 146 |
| LV4 | 46W | 6716 | 146 | 7084 | 154 | 6900 | 150 |
|
IMLF04 86W 8FT |
|||||||
| SETTING | SYSTEM WATTS | 3500K (80CRI) | 4000K (80CRI) | 5000K (80CRI) | |||
| LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | LUMENS (lm) | LPW (lm/w) | ||
| LV1 | 86W | 11700 | 136 | 12300 | 143 | 12040 | 140 |
| LV2 | 70W | 9730 | 139 | 10220 | 146 | 10010 | 143 |
| LV3 | 60W | 8520 | 142 | 9000 | 150 | 8760 | 146 |
| LV4 | 50W | 7350 | 147 | 7700 | 154 | 7500 | 150 |
Electrical data
|
Number Of Drivers |
Driver Current(mA) |
Nominal Power(W) |
INPUT VOLTAGE(V) |
CURRENT(Amps) |
|
1 |
510 |
24 |
120 |
0.20 |
|
24 |
208 |
0.12 |
||
|
24 |
240 |
0.10 |
||
|
24 |
277 |
0.09 |
||
|
1 |
830 |
40 |
120 |
0.33 |
|
40 |
208 |
0.19 |
||
|
40 |
240 |
0.17 |
||
|
40 |
277 |
0.14 |
||
|
1 |
1470 |
70 |
120 |
0.58 |
|
70 |
208 |
0.34 |
||
|
70 |
240 |
0.29 |
||
|
70 |
277 |
0.25 |
||
|
1 |
1900 |
86 |
120 |
0.72 |
|
86 |
208 |
0.41 |
||
|
86 |
240 |
0.36 |
||
|
86 |
277 |
0.31 |

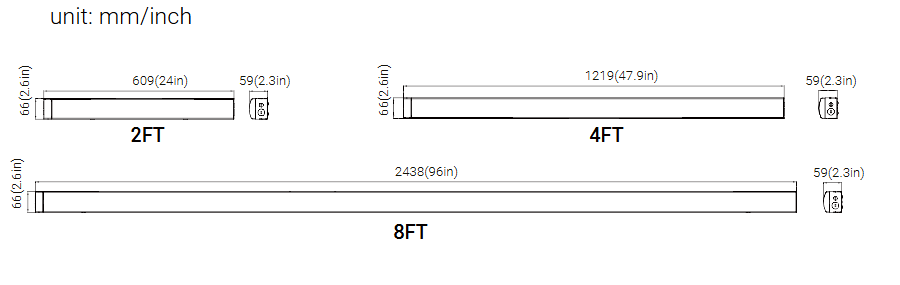

Dimension
Plug-in PIR Sensor
The optional receptacle for plug-and-play sensor eliminates the need for on-site modifications, making installation quick and hassle-free.

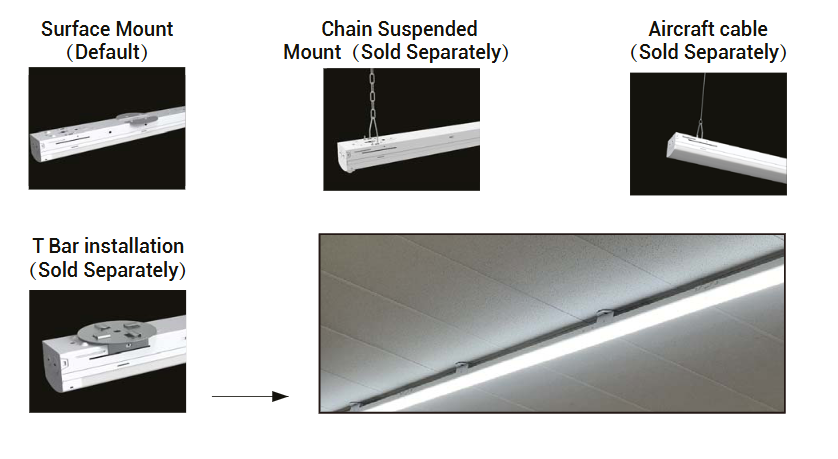

Way to install

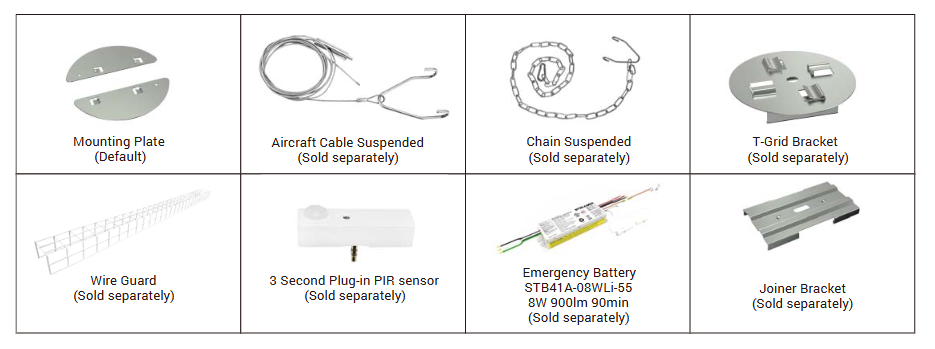

Accessories (optional)
ORDERING GUIDE
|
ORDERING GUIDE IMLF04 2F 24W 27V DDK Y Y Y Y Y
|
|||||||||||
|
IUS
|
Fixture Type
|
Size
|
Power
|
Voltage
|
CCT
|
Finish
|
Sensor (Option)
|
Backup Battery (Option)
|
Mounting
|
Adjustment dial
|
Internal Code
|
|
I
|
MLF04
Linear Fixture
|
2F 2ft
4F 4ft
8F 8ft
|
24W
40W
70W
86W
|
27V
120-277V
|
DDK
Adjustable
color temperature
|
W
White
|
Blank
Without Sensor
M
With Sensor
|
B
Emergency Battery
Blank
Without Emergency
Battery
|
SM Surface mount
CI Chain installation
SI Steel wire install
TG T‑grid bracket
|
AD
With adjustment dial
|
Blank
Alphanumeric
|
IMLF04-2’;4’;8’ LED Strip CCT and Wattage Adjustable
