IMBL01 Bollard 26W CCT & wattage selectable
Description:
Illuminating US LED Bollards is a stylish, energy-efficient, and durable lighting solution. It features a sturdy cast aluminum structure and is combined with corrosion-resistant powder-coated finishes and long-lasting LED lighting to provide years of maintenance- free service. It is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source.

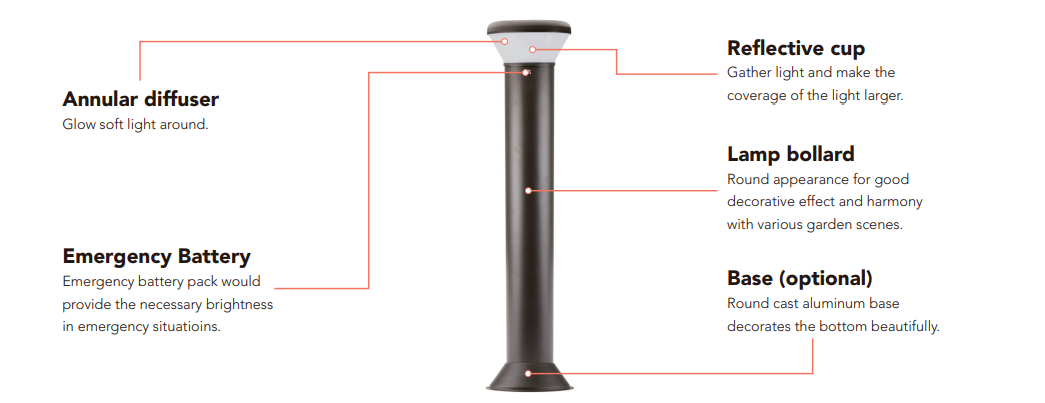

Construction
- Strong and durable die -cast aluminum case.
- Round appearance for good decorative effect, sized in 3.5ft height.
- Robust ground cage pre-buried installation.
- 360 degrees surround illumination.
Optics
- High performance UV stabilized optical grade polymer optic lenses to achieve target lumens and a superior lighting uniformity.
- Light engines are available in color tunable version, the CCT can be changed to three CCTs (3000K, 4000K, 5000K).
- Scalable Lumen Packages from 1,300 to 3,200 Lumens.
Electrical
- Universal 120-277 VAC input voltage.
- Standard with 0-10V dimming allowing for 10% to 100% dimming.
- PF >90%, THD <20%.
- Operating Temperature Range: -40°C to 45°C (-40˚F to 113˚F).
Note: Operating with emergency battery temperature range: 5°C to 45°C (+41˚F to 113˚F).
Controls
- Optional Emergency Battery.
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Five-year warranty.
Certifications
- UL cUL wet location listed.
- DesignLights Consortium™ Qualified.
Note: Please refer to the DLC website for specific product qualifications at www.designlights.org.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
ACCESSORIES (Optional)
|
Emergency Battery Backup NO. EB-8W/90min-1 USE: 900lm 90min
|
|
Bollard base kit
|

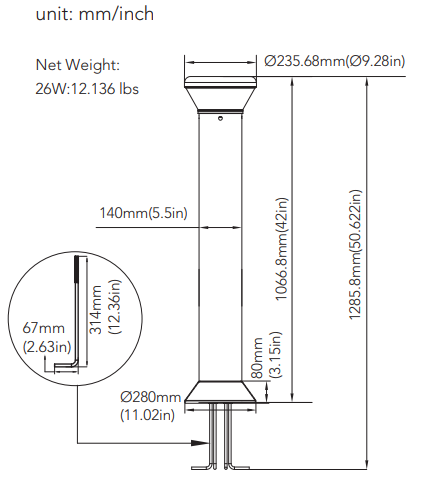

DIMENSION
DIMENSION
PERFORMANCE DATA
|
SYSTEM WATTS |
VOLTAGE |
LUMENS 3000K(70CRI) |
LPW 3000K(70CRI) |
LUMENS 4000K(70CRI) |
LPW 4000K(70CRI) |
LUMENS 5000K(70CRI) |
LPW 5000K(70CRI) |
|
26W |
120-277V |
3000 lm |
115 lm/W |
3200 lm |
123 lm/W |
3050 lm |
117 lm/W |

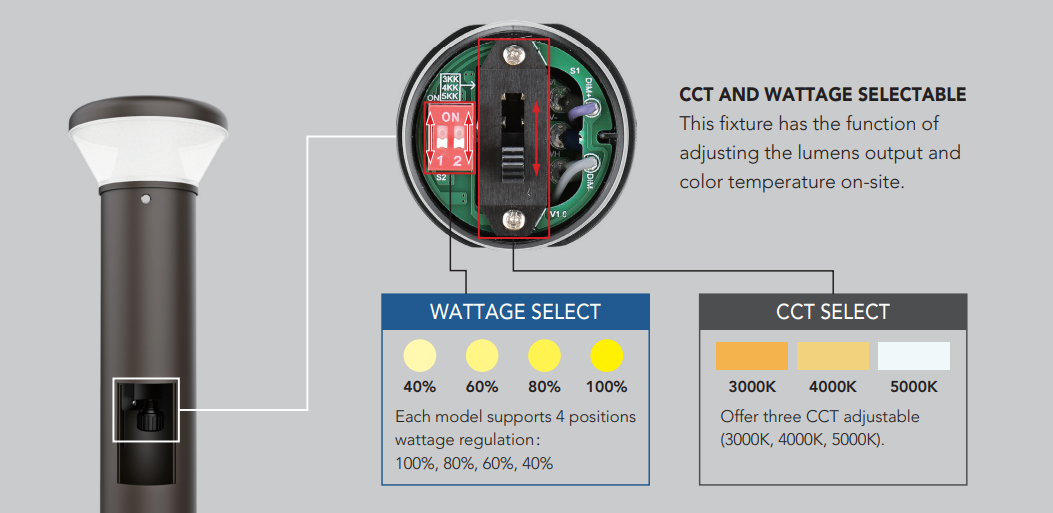

ADJUSTABLE LUMEN OUTPUT TABLE
|
SWITCH SETTING |
SETTING WATTS |
CRI |
LUMENS 3000K |
LPW 3000K |
LUMENS 4000K |
LPW 4000K |
LUMENS 5000K |
LPW 5000K |
|
100 % |
26 W |
70 |
3000lm |
115 lm/W |
3200lm |
123 lm/W |
3050lm |
117 lm/W |
|
80 % |
21 W |
70 |
2500lm |
119 lm/W |
2700lm |
129 lm/W |
2500lm |
119 lm/W |
|
60 % |
16 W |
70 |
1950lm |
122 lm/W |
2100lm |
131 lm/W |
2000lm |
125 lm/W |
|
40 % |
10 W |
70 |
1300lm |
130 lm/W |
1400lm |
140 lm/W |
1350lm |
135 lm/W |
ELECTRICAL DATA
|
NUMBER OF DRIVERS |
DRIVER CURRENT (mA) |
NOMINAL POWER (W) |
INPUT VOLTAGE (V) |
CURRENT (Amps) |
|
1 |
670 |
26 |
120 |
0.22 |
|
26 |
208 |
0.13 |
||
|
26 |
240 |
0.11 |
||
|
26 |
277 |
0.09 |
|
ORDERING GUIDE Example: IMBL0126W27VDDKYYY |
|||||||
|
IUS |
Fixture Type |
Wattage |
Voltage |
CCT |
Finish |
Backup Battery (Option) |
Internal Code |
|
I |
MBL01 Bollard Light |
26 26W |
27V 120-277V |
DDK Adjustable color temperature |
D Dark Bronze B Black W White |
B With Emergency Battery Blank Without Emergency Battery |
Blank Alphanumeric |
Note: CCT and Wattage adjustable.
