ICP2 SERIES | Deep Regress Downlights

Description:

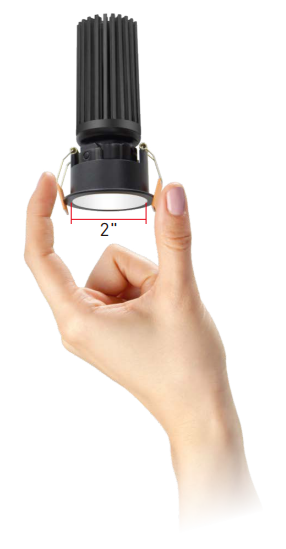

Small yet mighty, this family of 2" aperture recessed downlights delivers up to 1200 lumens. Compact in size and high in performance, the collection offers an extensive selection of optics, trim styles, configurations, beam spreads, housings, and mounting options- providing the versatility needed for any project. With a wide array of customizable setups, it meets virtually every design requirement. A designer favorite, these downlights ensure exceptional lighting performance for any application.

Contact Us

Feature

  • Architectural Friendly: Modular design, various unique combinations
  • Adjustable Ring: 360° rotation and a maximum 30° tilt angle
  • 2 in 1 Dimming: 0-10V (Dim to 1%) and TRIAC in one package
  • COB LED: 4 Fixed CCT 90+ CRI or Dim to Warm 95+ CRI options.
  • Beam Angle: 30° and 60° optics options
  • Trimmed or trimless options
  • New construction and remodel options for any site condition

PERFORMANCE

Wattage Selectable

30° Beam @ 3000K

50° Beam @ 3000K

Dim to Warm 3000K~2000K 95+ CRI

Efficacy

Delivered Lumens

Efficacy

Delivered Lumens

5W

67LM/W

335LM

73LM/W

365LM





Up to 13W 840LM

70LM/W

8W

68LM/W

544LM

74LM/W

592LM

10W

67LM/W

670LM

74LM/W

740LM

13W

64LM/W

832LM

70LM/W

910LM

16W

61LM/W

976LM

67LM/W

1072LM

19W

59LM/W

1121LM

65LM/W

1235LM

Remark: The lumens are subject to 3000K, 90+ CRI, 36° beam angle with white round trim. Lumen output may vary ± 5% base on different CCT, beam angle, trim shape and shade.

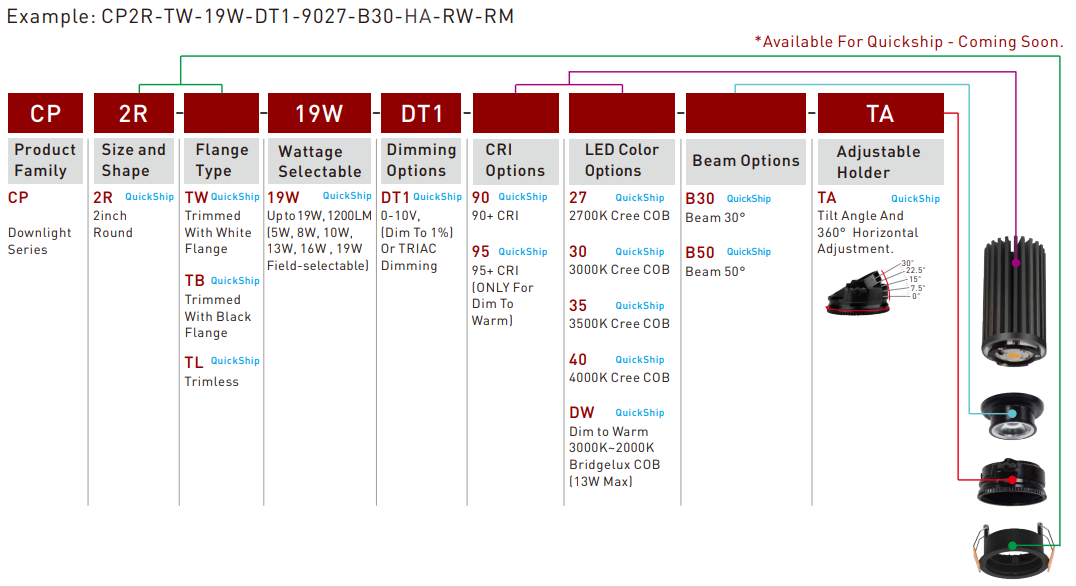

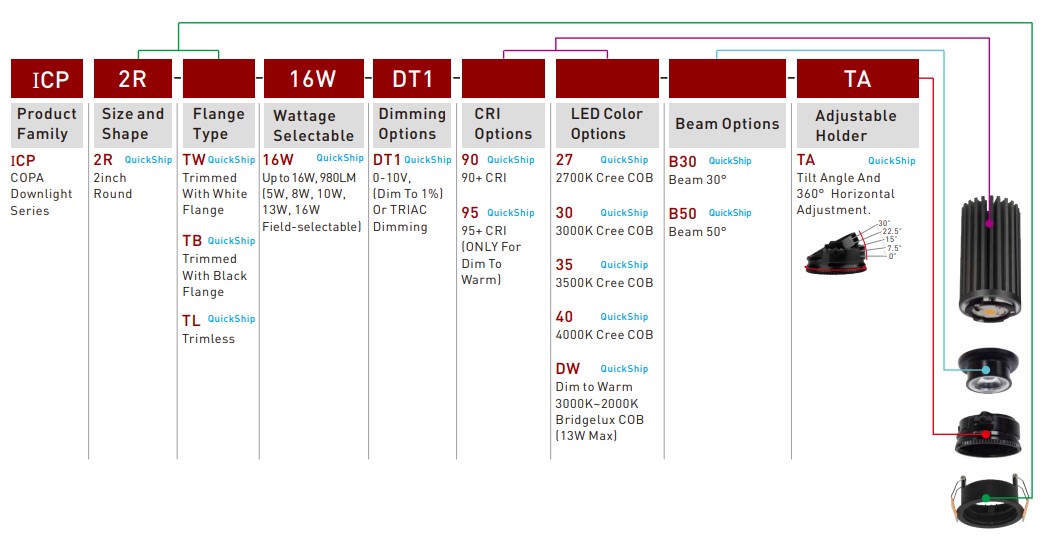

PRODUCT ORDERING GUIDE

LED System

LED Powered by CREE or Bridgelux high efficiency COB LED chip.
CRI 90+ for fixed CCT or 95+ CRI for Dim to Warm, producing outstanding illumination at a tight chromaticity specification and color binning process.

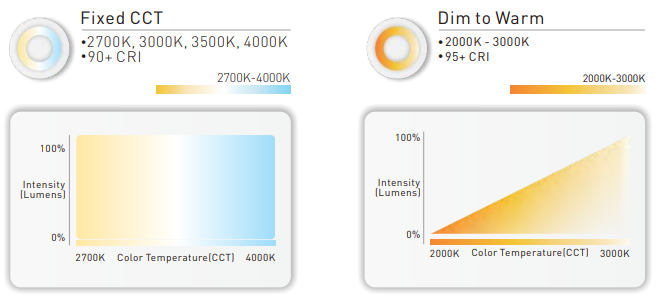

CCT 2700K,3000K, 3500K and 4000K fixed CCT with a great color consistency or Dim to Warm from 3000K to 2000K.
Light Engine Heatsink Aluminum housing acting as the heat sink to maximize life. The temperature of all heatsinks are controlled at 60-70°C.

Lens

  • Classic reflector-like design provides high lighting transmittance. It effect in light control and anti-glare with side facula and fade-out facula. The MR16 standard size(diameter 1.96")design make them widely practical. Available in 30° and 50° beam angles, beam spreads are interchangeable which can be easily swapped out in the field without tools.

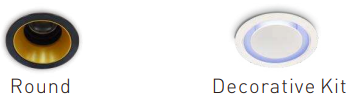

Trim Finish / Shade

  • Powder coat white and black finishes offer uniform finish providing long term performance and superior aesthetic, compatible for multiple trim shades.

Electrical

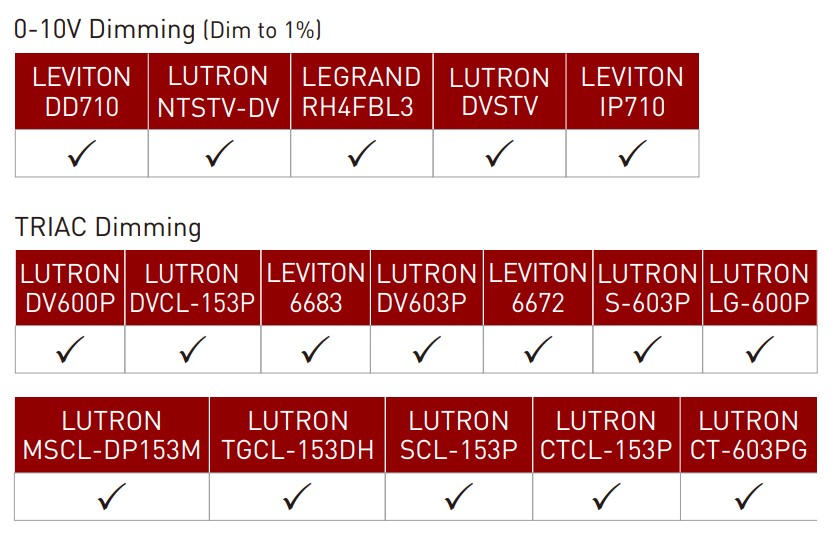

LED Driver It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming which continuous dims to 1% or Triac dimming that works with many types of controls. Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic drivers are cULus recognized and available for 110-277V AC.
Environment Environment damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)



Installation

  • Twist & Lock feature for easy trim installation.
  • Durable tension clips are allowing for fast and easy flush installation.

Listings

  • cULus listed for damp locations
  • Five-year warranty for parts and components. (Labor not included)

NOTES:

  • Ambient temperatures at fixture location should not exceed 40°C during normal operation.
  • For interior use only

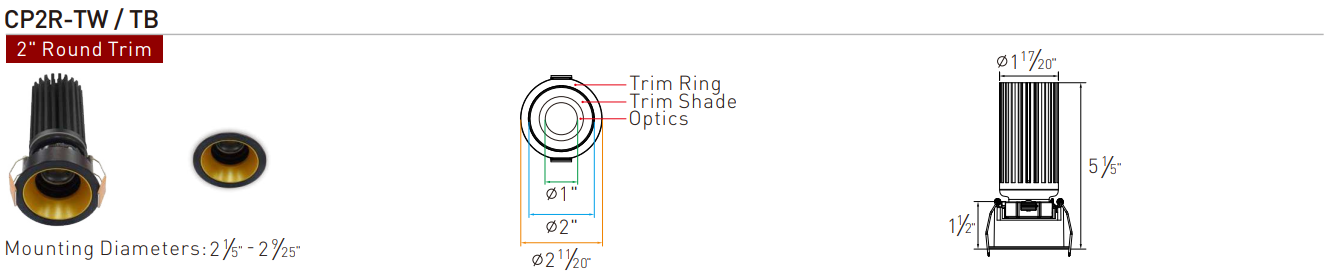

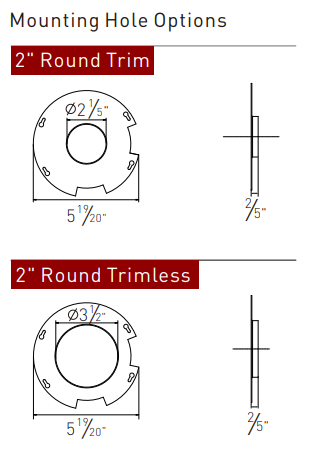

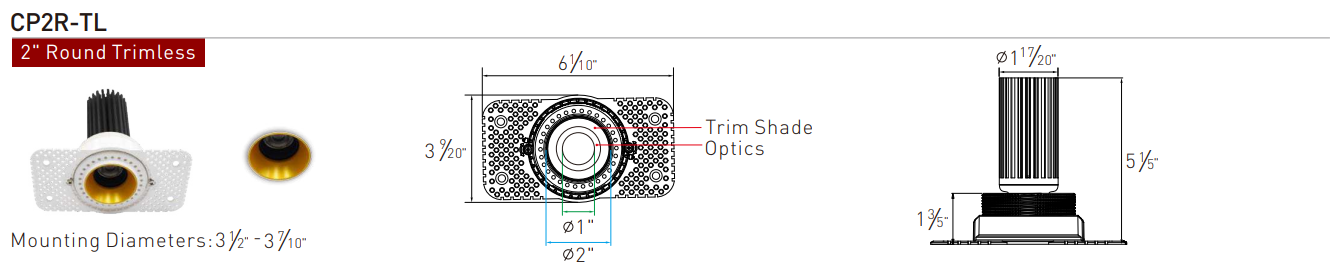

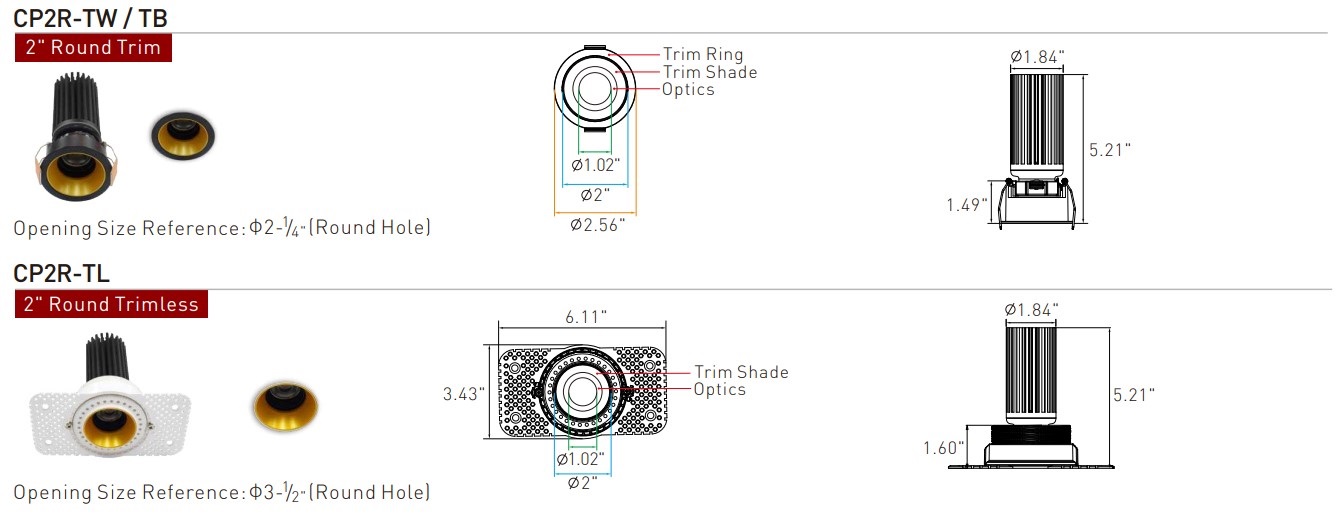

DIMENSIONS

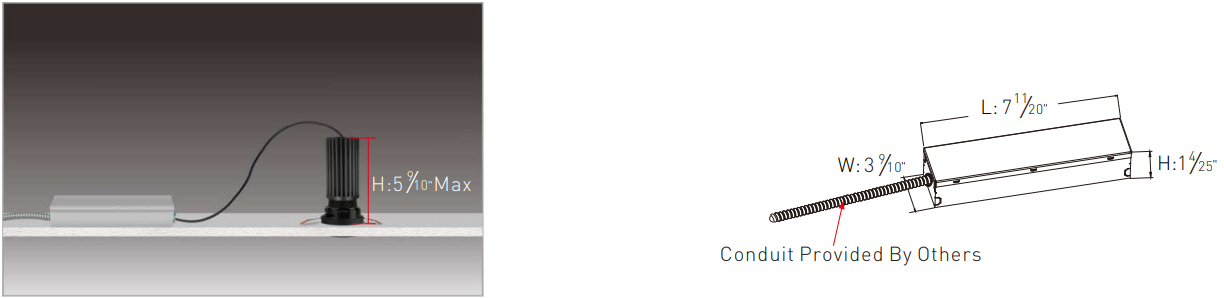

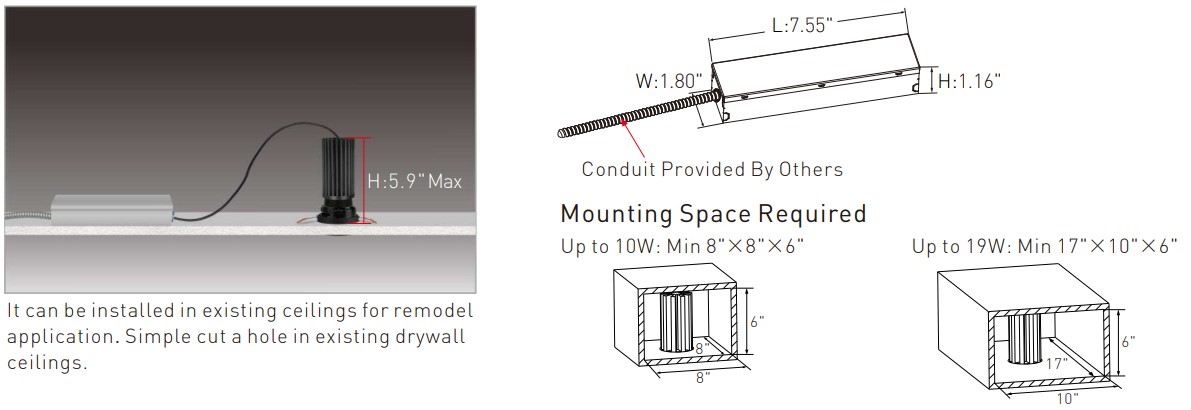

Remodel(NON-IC Rated)- LED Driver Box

  • It can be installed in existing ceilings for remodel application. Simple cut a hole in existing drywall ceilings.

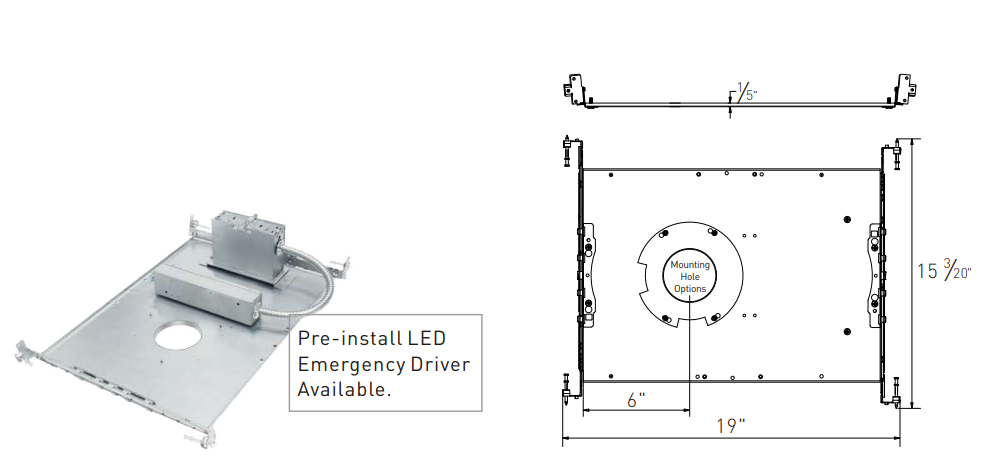

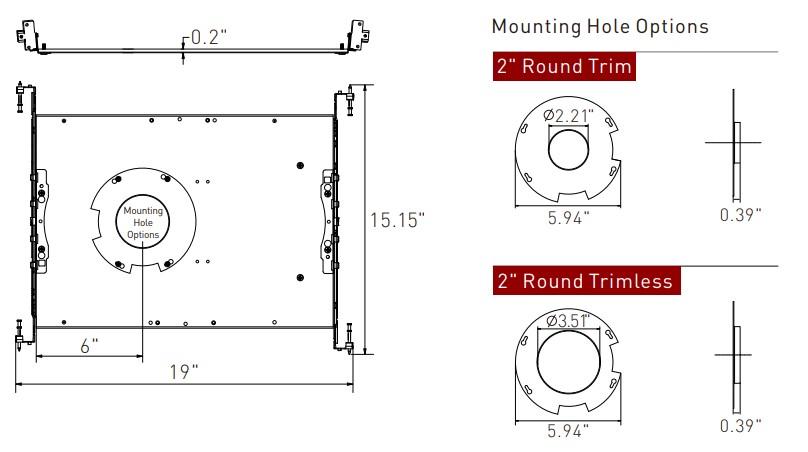

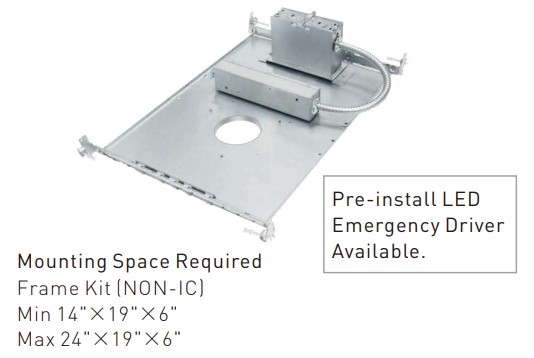

New Construction-Frame Kit (NON-IC Rated)

  • A rough-in frame option is available for all new constructions and a variety of ceiling types. LED driver box rests on the frame kit by magnet when installed as shown below.

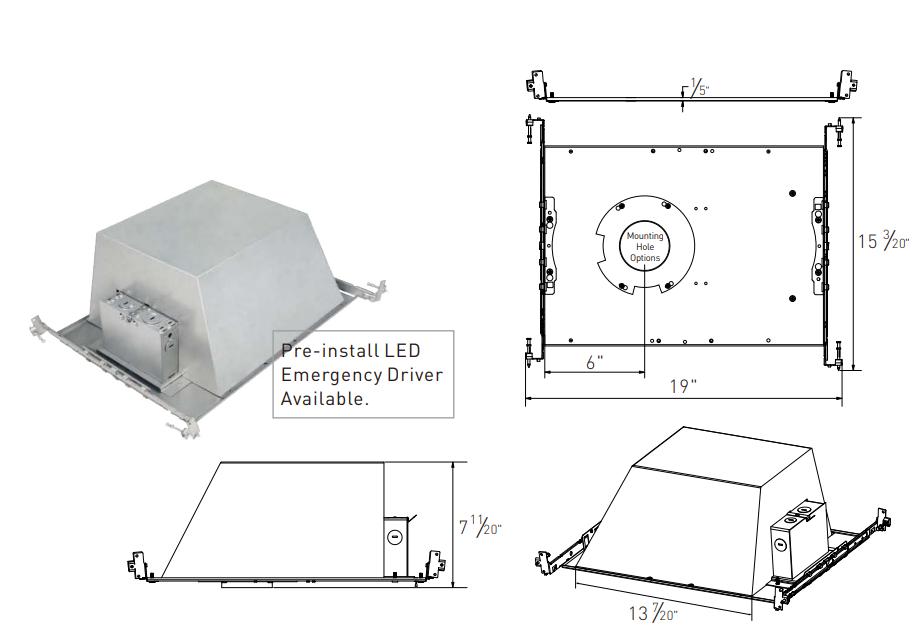

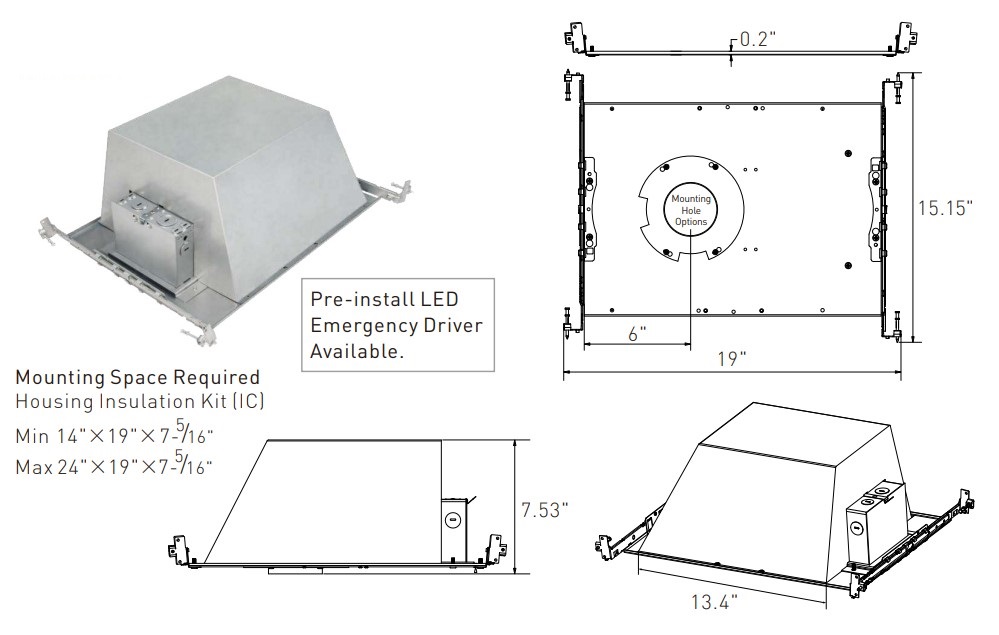

New Construction-Housing Insulation Kit (IC Rated)

  • An IC-rated housing frame kit allows placement of 2inch LED downlight in direct contact with insulation.

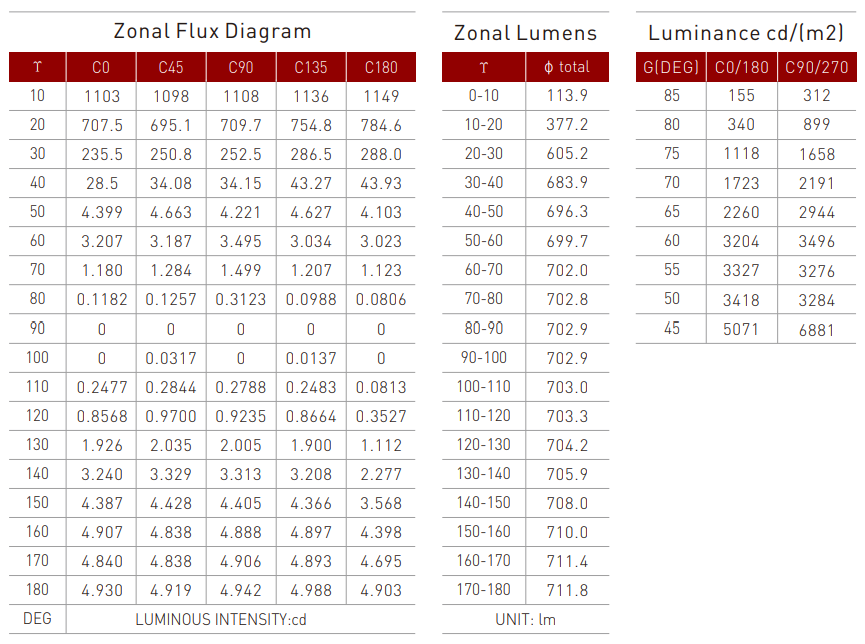

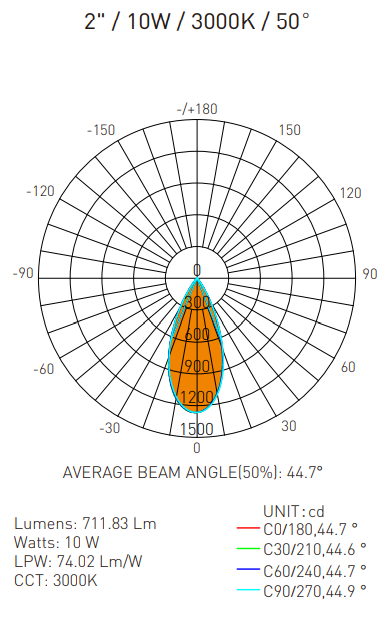

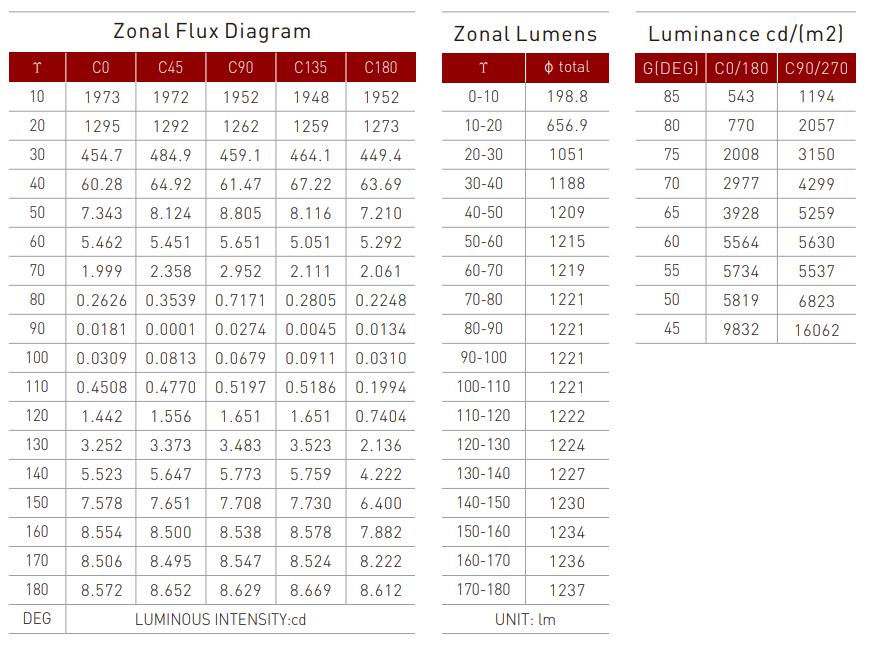

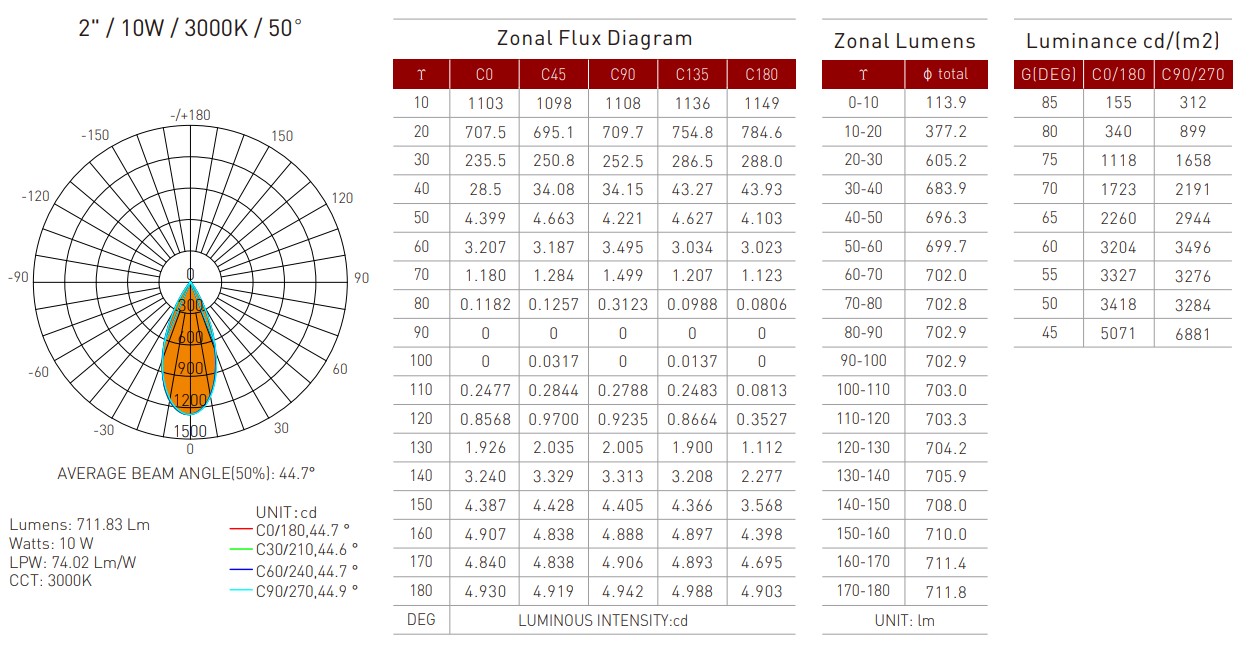

DISTRIBUTION DIAGRAM

ICP2 SERIES | Deep Regress Downlights
