Gooseneck Light
Description:
Illuminating US new Gooseneck Light is a unique decorative lighting fixture that allows you to update the look of your building. Elegant and curved goose neck arm, simple and low-key appearance design, can be well applied to a variety of architectural styles. Installation is quick and easy, and the 28W has a strong function that can support 5 color temperature adjustment.
Contact UsConstruction
- Durable surface coating powder spraying can extends the durability of the fixture.
- The integrated shell design can make good use of a variety of wet location environments.
- 5VA rated PC housing for 12W model and die-cast housing for 28W model.
Optics
- General distribution type for most environments.
- Scalable Lumen Packages from 1000 to 3000 Lumens.
- The use of advanced refraction and reflection optical design concepts provides an optimal combination of vertical and horizontal illumination.
LED Module

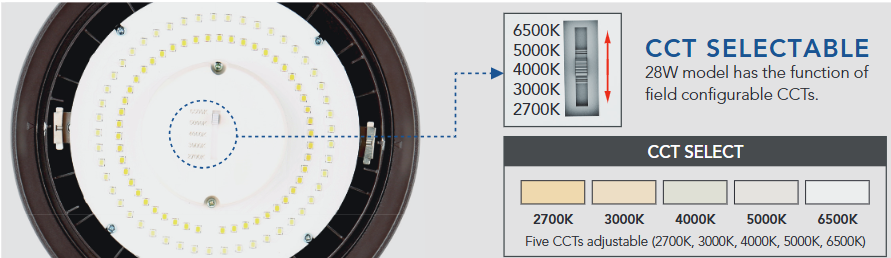

- Dedicated CCT 3000K 4000K and 5000K are available for 12W while the 28W offers Selectable CCTs, can be adjusted to be 2700K/3000K/ 4000K/5000K/6500K.
Electrical
- Line Voltage 120V for the 12W model, Universal Voltage 120-277VAC for the 28W model.
- 28W supports the standard 0-10V dimming driver configuration, 12W does not support dimming.
- Both drivers have a power factor >90%, THD <20%.
- Operating Temperature Range: -40°C to 40°C (-40˚F - + 104˚F).
Control
- Integrated Photocell included.
Installation
- wall mount.
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Two-year limited warranty for 12W.
- Five-year limited warranty for 28W.
Certifications
- UL cUL wet location pending.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
PERFORMANCE DATA
|
SYSTEM WATTS |
VOLTAGE |
CRI |
3000K |
4000K |
5000K |
|||
|
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
|||
|
12W |
120V |
80 |
1000lm |
83 lm/W |
1000lm |
83lm/W |
1000lm |
83lm/W |
CCT ADJUSTABLE
|
SYSTEM WATTS |
VOLTAGE |
CRI |
2700K |
3000K |
4000K |
5000K |
6500K |
|||||
|
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
|||
|
28W |
120-277V |
80 |
3000lm |
107lm/w |
3000lm |
107lm/w |
3000lm |
107lm/w |
3000lm |
107lm/w |
3000lm |
107lm/w |
ELECTRICAL DATA
|
NUMBER OF DRIVERS |
DRIVER CURRENT (mA) |
NOMINAL POWER (W) |
INPUT VOLTAGE (V) |
CURRENT (Amps) |
|
1 |
450 |
28 |
120 |
0.23 |
|
28 |
208 |
0.13 |
||
|
28 |
240 |
0.12 |
||
|
28 |
277 |
0.10 |

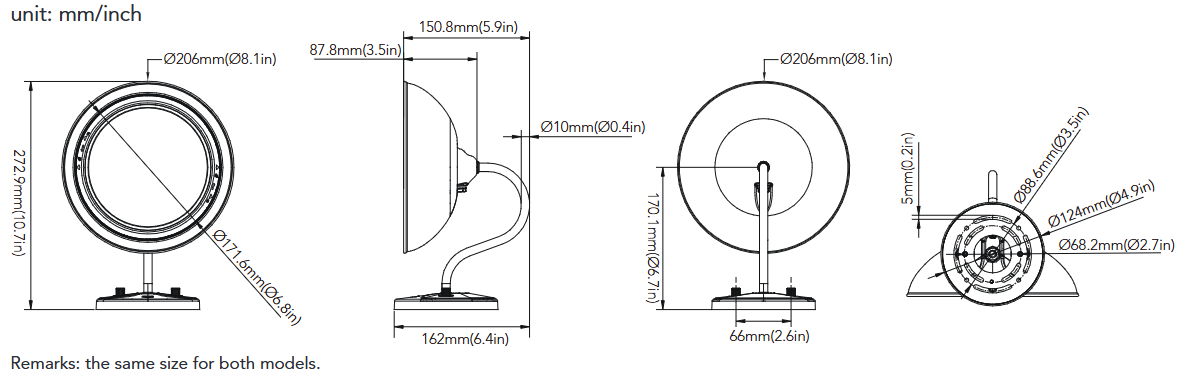

DIMENSION
ORDERING GUIDE
|
|
Fixture Type
|
Wattage
|
Input Voltage
|
CCT
|
Finish
|
Photocell (Option)
|
Internal Code
|
|
I |
MGN01 |
12W |
12V 120V |
DDK Adjustable color temperature |
D Dark Bronze |
P With Photocell |
Blank |
|
|
Gooseneck LED fixture series |
28W |
27V 120-277V |
30K 3000K |
|
|
Alphanumeric |
|
|
|
|
|
40K 4000K |
|
|
|
|
|
|
|
|
50K 5000K |
|
|
|
Note: 1. Single CCT 3000K, 4000K and 5000K are available for 12W, only the 28W available for DDK .
2. 12W supports 120V voltage input, 28W supports 120-277V voltage input.
Gooseneck Light
IMGN01
