Decorative Wall Mount with EM & Photocell
Description:

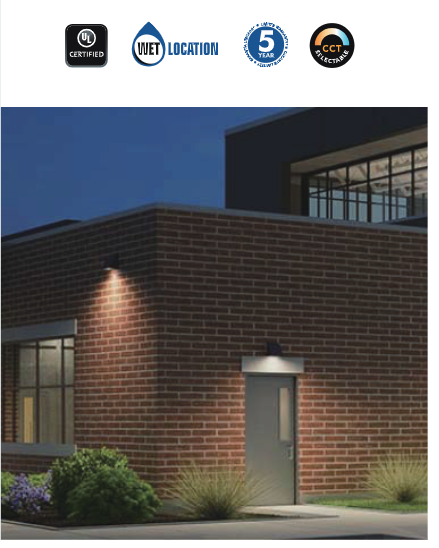

Our products are designed to maximize value. Available 10W / 20W models,the IMWM02 comes with a field-adjustable CCT swith that's easily accessed inside the wall mount and allows you to choose between 3000, 4000 and 5000K. It offers the aesthetically pleasing look with the superior performance . This product is an easy to install, high quality and durable LED lighting solution ideal for residential and commercial applications
Contact UsConstruction
- Rugged die-cast aluminum housing.
- Excellent thermal management design ensures long lifespan.
- High impact, weather resistant housing and lens.
Optics
- Scalable Lumen Packages from 1,300 to 2,660 Lumens.

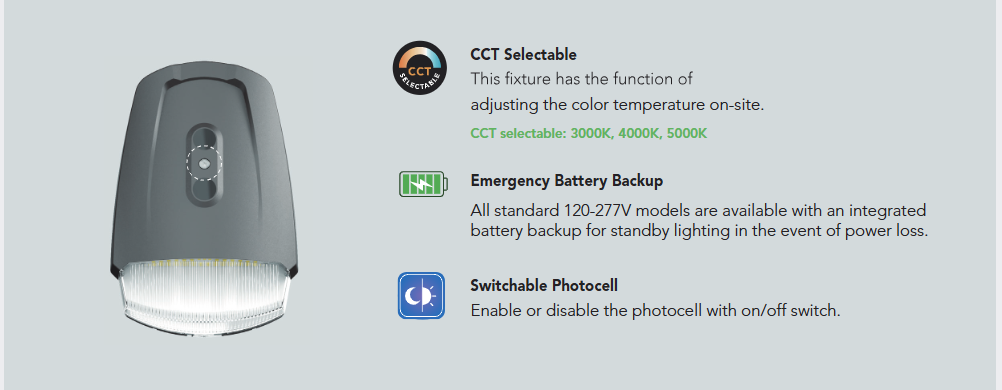

- Light engines are available in CCT adjustable, the CCT can be changed to 3000K/4000K/5000K.
- Optional frosted or clear diffusers, the frosted diffusers provides a soft and natural light, reducing glare and protecting the eyes, while the clear diffusers allows more light to pass through, offering clearer illumination effects
Electrical
- Universal 120-277 VAC input voltage.
- Both drivers have a power factor >90%, THD <20%.
- Operating Temperature Range: -20°C to 45°C (-4°F - + 113°F).
Controls
- Integrated switching Photocell included.
- Standard Emergency Battery.
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
WARRANTY
- Five year limited warranty.
Certifications
- UL cUL wet location listed.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(+5°C) specifications subject to change without notice.
PERFORMANCE DATA
|
SYSTEM WATTS |
VOLTAGE |
CRI |
LUMENS (3000K) |
LPW (3000K) |
LUMENS (4000K) |
LPW (4000K) |
LUMENS (5000K) |
LPW (5000K) |
|
10W |
120-277VAC |
80 |
1300 lm |
130 lm/W |
1400 lm |
140 lm/W |
1350 lm |
135 lm/W |
|
20W |
120-277VAC |
80 |
2550 lm |
128 lm/W |
2660 lm |
133 lm/W |
2600 lm |
130 lm/W |
DIMENSION
ORDERING GUIDE
|
ORDERING GUIDE Example: IMWM02 10W 27V DDK Y Y Y Y Y |
|||||||||
|
|
Fixture Type
|
Wattage
|
Voltage
|
CCT
|
Finish
|
Photocell
|
Emergency Battery
|
Diffuser
|
Internal Code
|
|
I |
MWM02 Wall Mount |
10W 20W |
27V 120-277V |
DDK Adjustable color temperature |
D Dark Bronze B Black W White |
P 120-277V Photocell |
B Emergency Battery |
F Frosted Lens C Clear Lens |
Blank Alphanumeric |
Decorative Wall Mount with EM & Photocell
IMWM0210W27VDDKBPBC(30K)
IMWM0210W27VDDKBPBC(30K)+EB
IMWM0210W27VDDKBPBC(40K)
IMWM0210W27VDDKBPBC(40K)+EB
IMWM0210W27VDDKBPBC(50K)
IMWM0210W27VDDKBPBC(50K)+EB
IMWM0210W27VDDKBPBF(30K)
IMWM0210W27VDDKBPBF(30K)+EB
IMWM0210W27VDDKBPBF(40K)
IMWM0210W27VDDKBPBF(40K)+EB
IMWM0210W27VDDKBPBF(50K)
IMWM0210W27VDDKBPBF(50K)+EB
IMWM0220W27VDDKBPBC(30K)
IMWM0220W27VDDKBPBC(30K)+EB
IMWM0220W27VDDKBPBC(40K)
IMWM0220W27VDDKBPBC(40K)+EB
IMWM0220W27VDDKBPBC(50K)
IMWM0220W27VDDKBPBC(50K)+EB
IMWM0220W27VDDKBPBF(30K)
IMWM0220W27VDDKBPBF(30K)+EB
IMWM0220W27VDDKBPBF(40K)
IMWM0220W27VDDKBPBF(40K)+EB
IMWM0220W27VDDKBPBF(50K)
IMWM0220W27VDDKBPBF(50K)+EB
