Daylight Harvesting Sensor

Description:

The ANT-6-4T mounts in an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution.

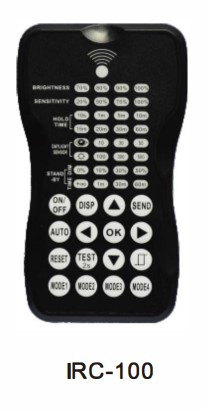

It controls 0-10 VDC LED drivers or dimming ballasts, and is rated for wet and cold locations. All control parameters are adjustable via a wireless configuration tool capable of storing.

Contact Us

SPECIFICATIONS

Power supply 12V-24V DC, >30mA
Dim control output 0-10V, max. 25mA sinking current
Remote range 50ft. (15ml indoor, no backliqht
Dim control output 0-10V
Detection radius 20%/50%/75%/100%(1-Bm)
Mounting height Max 40ft.(12meters)
Time setting 10s/1min/5min/10min/15min/20min/30min/60min
Light-control 24H/10LUX/30LUX/50LUX
Temperature -4° F - +140° F !-20 ° C- +60°C1
IP rating IP65



WARNING

  • NOTE: Warm up time is 40seconds. After the sensor connects input power first time, the light will keep on 40seconds, then go to dimming to work normally.
  • NOTE: Factory Default Setting: 100% sensitivity, Hold on time: 5min, Daylight sensor is -Q-, Dimming level: 30%,Dimming time: 60minitues.
  • NOTE: Any setting changed by remote control, the led light that sensor connect will on/off as confirm.

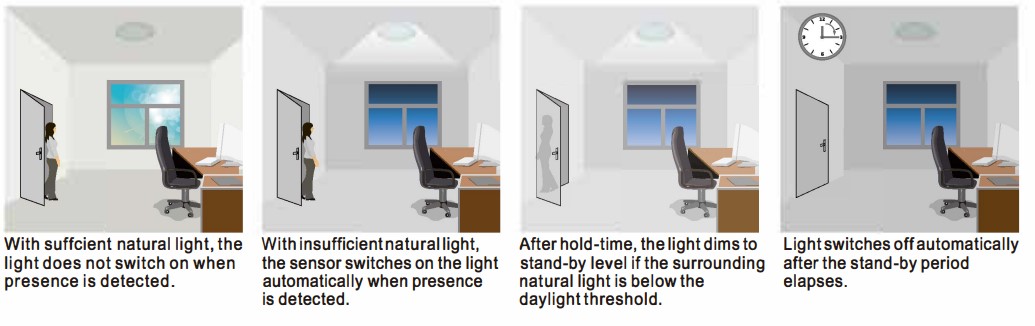

Corridor Function

This function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off_ The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insufficient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

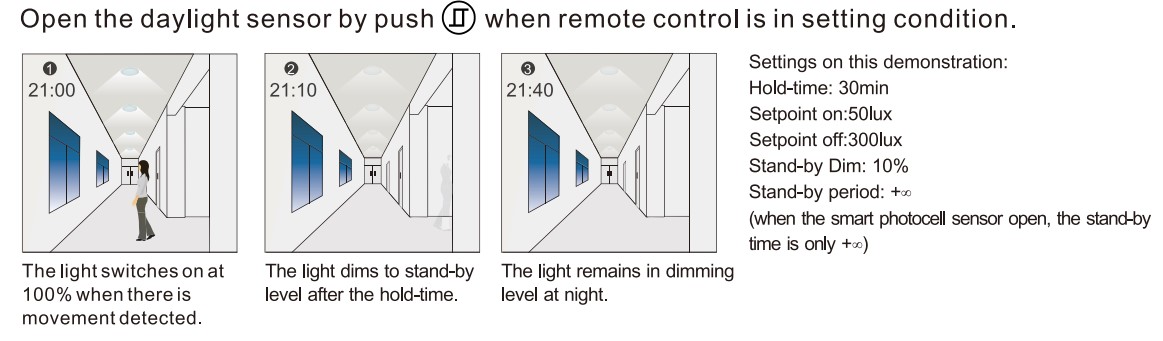

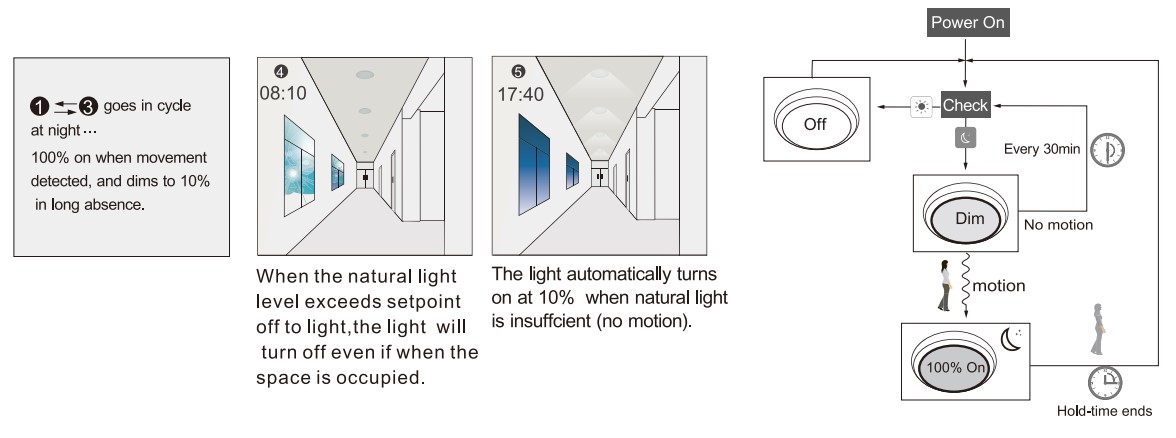

Daylight Sensor Function

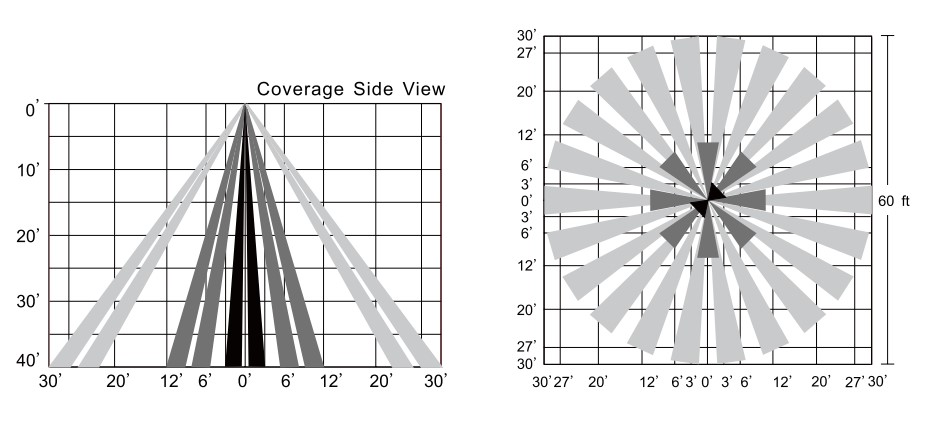

SENSOR COVERAGE

Daylight Harvesting Sensor
