CY SERIES CYLINDER PENDANTS 3”

Description:

Small yet powerful, this family of 3" LED cylinders delivers up to 1900 lumens. Combining compact design with high performance, they come with a wide selection of optics, trim styles, beam spreads, CCT, CRI, mounting options, and more-giving you the flexibility to meet diverse project needs. Available in an extensive range of configurations, these mini cylinders adapt to virtually any design requirement. A designer favorite, they provide superior lighting performance for every application.

Contact Us

Feature

  • Fully modular cylinder, configure over 10,000 possibilities
  • Choose from a wide range of beam angles: 15°, 24°, 36°, 60°
  • COB LED: 4 Fixed CCT 90+ CRI or Dim to Warm 95+ CRI options

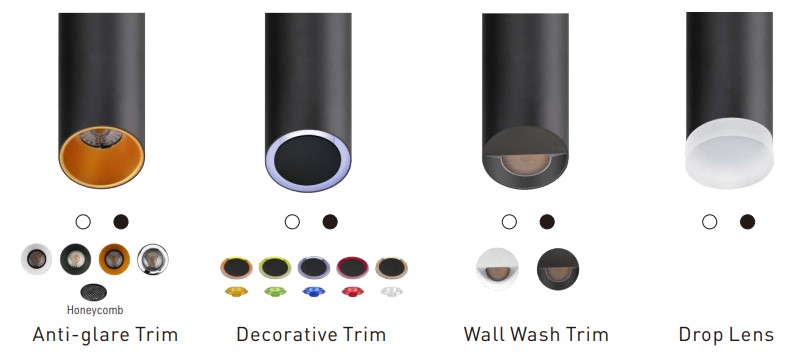

  • Options for anti-glare trim, drop lens, decorative kit or wall wash
  • 2 in 1 Dimming: 0-10V (Dim to 1%) and TRIAC in one package
  • Versatile mounting with cable pendant, stem pendant, surface and wall mount

PERFORMANCE

Wattage

15°/3000K/White

24°/3000K/White

36°/3000K/White

60°/3000K/White

Selectable

Efficacy

Lumens

Efficacy

Lumens

Efficacy

Lumens

Efficacy

Lumens

5W

115LM/W

575LM

115LM/W

575LM

105LM/W

525LM

95LM/W

475LM

8W

115LM/W

920LM

120LM/W

960LM

105LM/W

840LM

95LM/W

760LM

10W

115LM/W

1150LM

115LM/W

1150LM

105LM/W

1050LM

95LM/W

950LM

13W

110LM/W

1430LM

115LM/W

1490LM

105LM/W

1365LM

90LM/W

1170LM

16W

105LM/W

1680LM

110LM/W

1760LM

100LM/W

1600LM

80LM/W

1280LM

19W

100LM/W

1900LM

105LM/W

1995LM

95LM/W

1805LM

80LM/W

1520LM

Remark: The lumens are subject to 3000K 90+ with white anti-glare trim. Lumen output may vary ± 5% base on different CCT, beam angle, and trim.

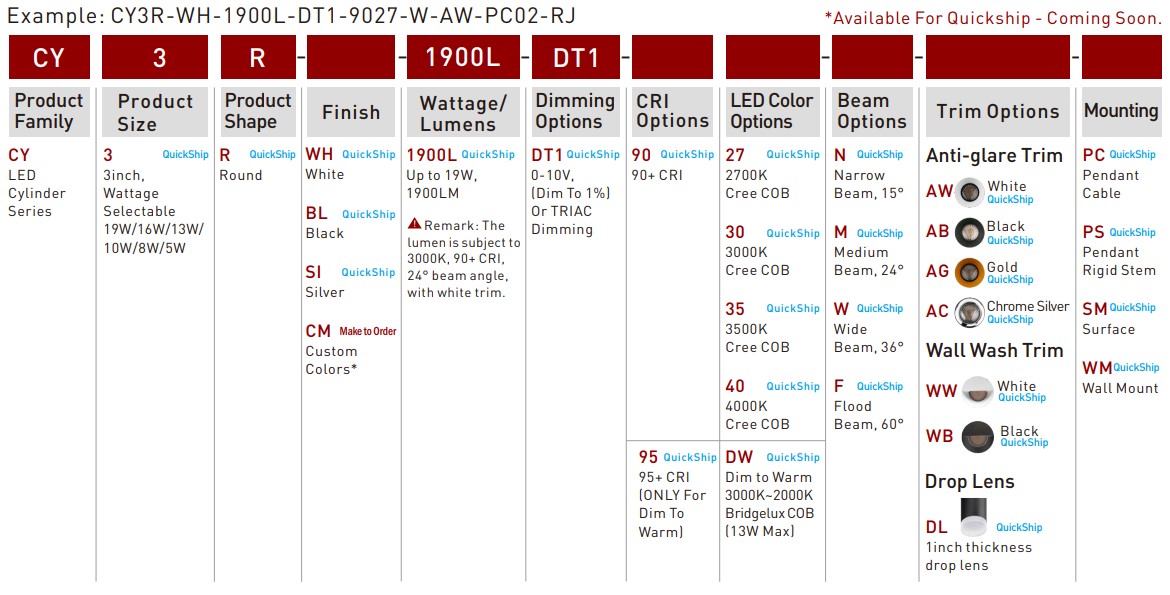

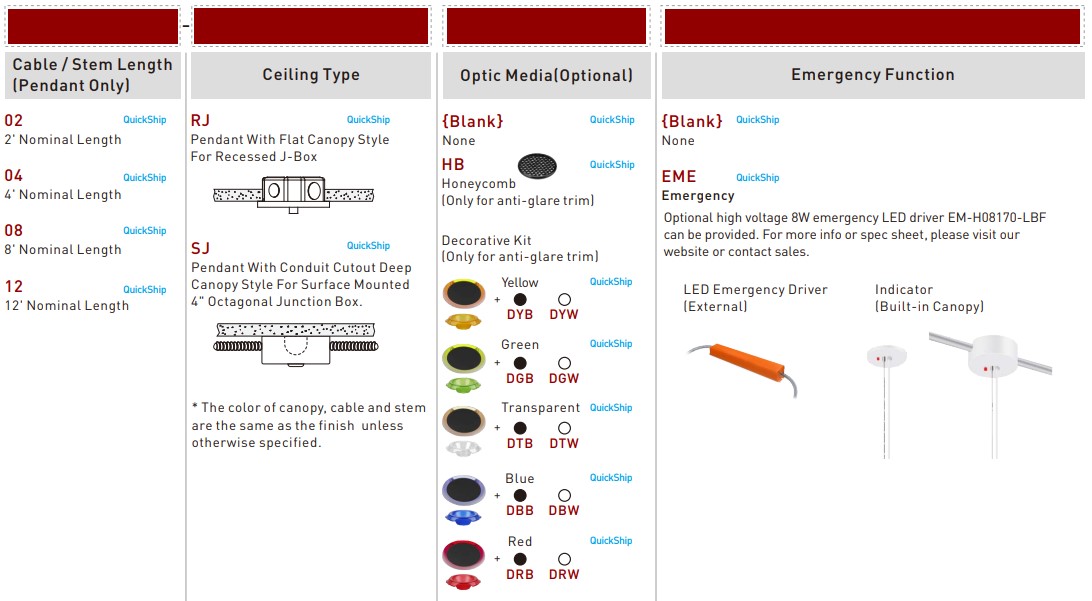

PRODUCT ORDERING GUIDE

Finish

  • Constructed of extruded aluminum. Powder coated polyester paint that comes standard in white and black.

Optics

  • It was powered by high efficiency COB LED chip with 15° / 24° / 36°/ 60° fixed beam spread options or drop lens. Cylinder beamspreads are interchangeable which can be easily swapped out in the field without tools.

LED System

LED Powered by CREE or Bridgelux high efficiency COB LED chip.
CRI

90+ for fixed CCT or 95+ CRI for Dim to Warm, producing outstanding illumination at a tight chromaticity specification and color binning process.
CCT

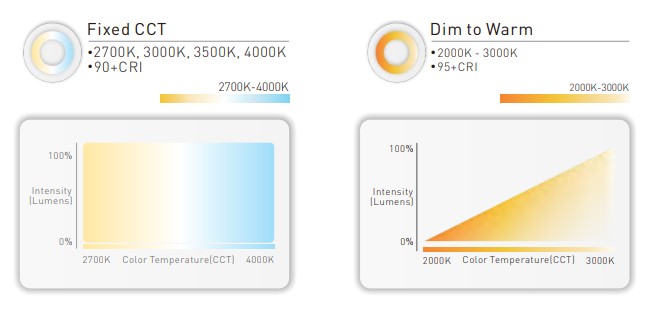

2700K,3000K, 3500K and 4000K fixed CCT with a great color consistency or Dim to Warm from 3000K to 2000K.

Light Engine Heatsink

Aluminum housing acting as the heat sink to maximize life. The temperature of all heatsinks are controlled at 60-70°C.



Electrical

LED Driver

It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming which continuous dims to 1% or Triac dimming that works with many   types of controls. Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic drivers are cULus recognized and available for 110-277V AC.
Environment

Environment damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)



Listings

  • cULus listed for damp locations
  • Five-year warranty for parts and components.(Labor not included)

NOTES:

  • Ambient temperatures at fixture location should not exceed 40°C during normal operation.
  • For interior use only

Mounting-Pendant

Cable Pendant

  • White/black power cable is provided in length specified (2' nominal, 4' nominal, 8' nominal or 12' nominal). Installers can cut the cable in the field to desired length.

Stem Pendant

  • Ø12/25" steel stem is provided in length specified (2' nominal, 4' nominal, 8' nominal or 12' nominal) and is provided in white or black finish.

Canopy Options

  • Flat Canopy For Recessed J-box
  • If J-box is recessed (3" octagon, 4" octagon and 4" round ) , a 4.5" flat canopy is provided for mounting to recessed junction box in white or black powder coat painted finish.

  • Conduit Cutout Deep Canopy For Surface Mount J-box
  • If standard 4" octagonal J-box is surface mounted, a Ø5.97" round x 2.38" deep canopy with conduit cutout is provided for mounting. Conduit cutout canopy has 4 key slots, one in each side, and can be configured to accommodate any ceiling layout using ½" or ⅜" conduit. Conduit cutout canopy is provided white and black powder coat painted finish.

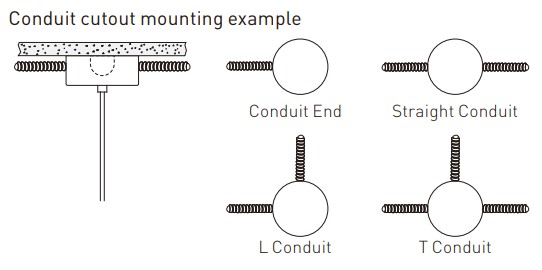

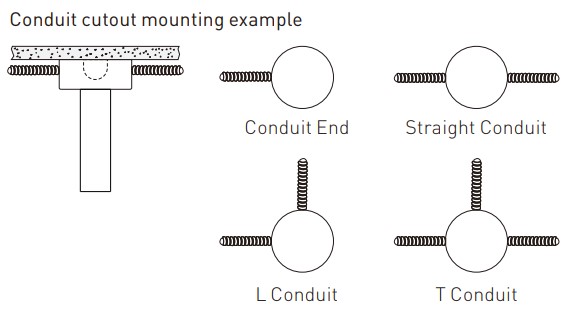

Conduit cutout mounting example

Mounting-Surface

For Recessed J-box

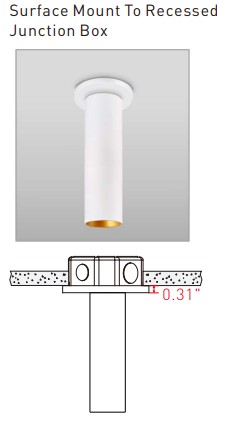

  • If recessed J-box is existing (3" octagon, 4" octagon and 4" round) , the cylinder can be mounted directly to recessed mounted junction box.

For Surface Mount J-box

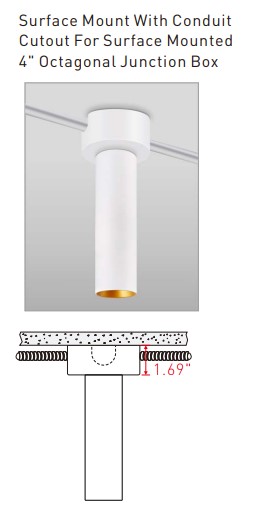

  • If standard 4" octagonal J-box is surface mounted, a Ø5.97" round x 2.38" deep canopy with conduit cutout is provided for mounting. Conduit cutout canopy has 4 key slots, one in each side, and can be configured to accommodate any ceiling layout using ½" or ⅜" conduit. Conduit cutout canopy is provided white and black powder coat painted finish.

Conduit cutout mounting example

CONFIGURATION

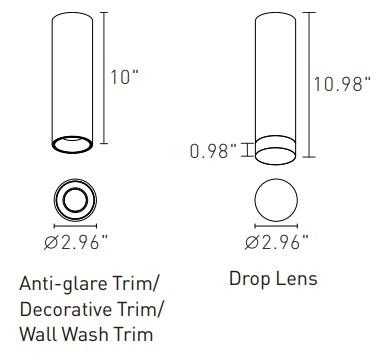

DIMENSIONS

PENDANT OPTIONS

SURFACE OPTIONS

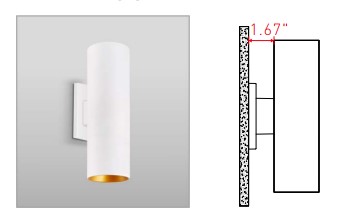

WALL MOUNT

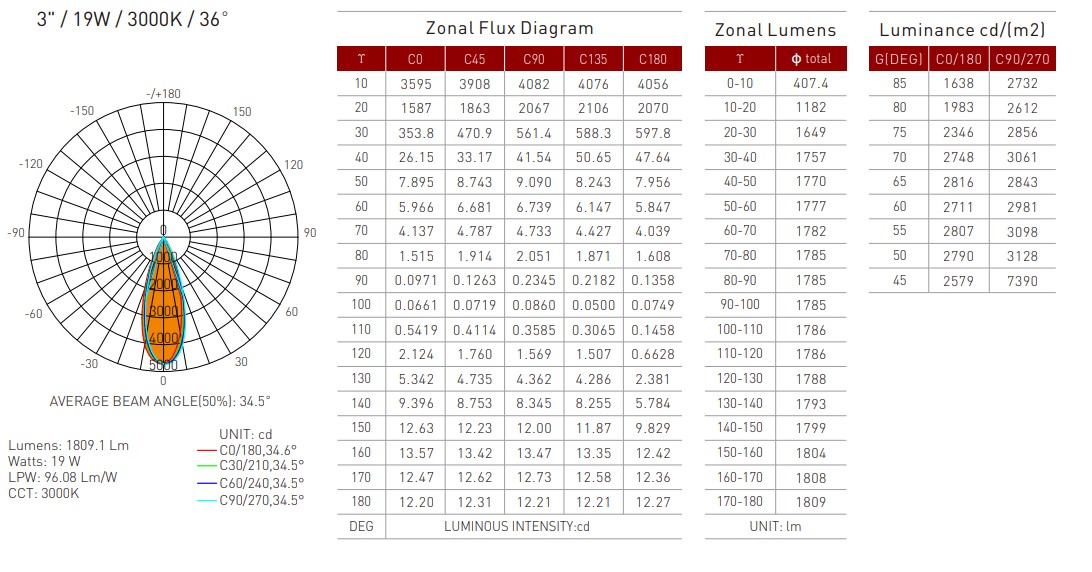

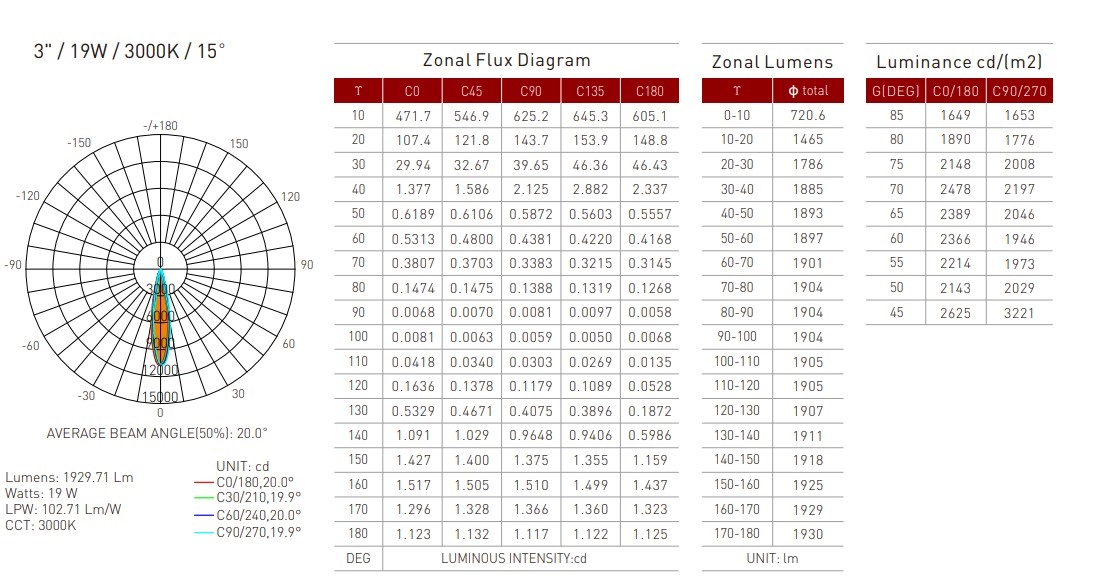

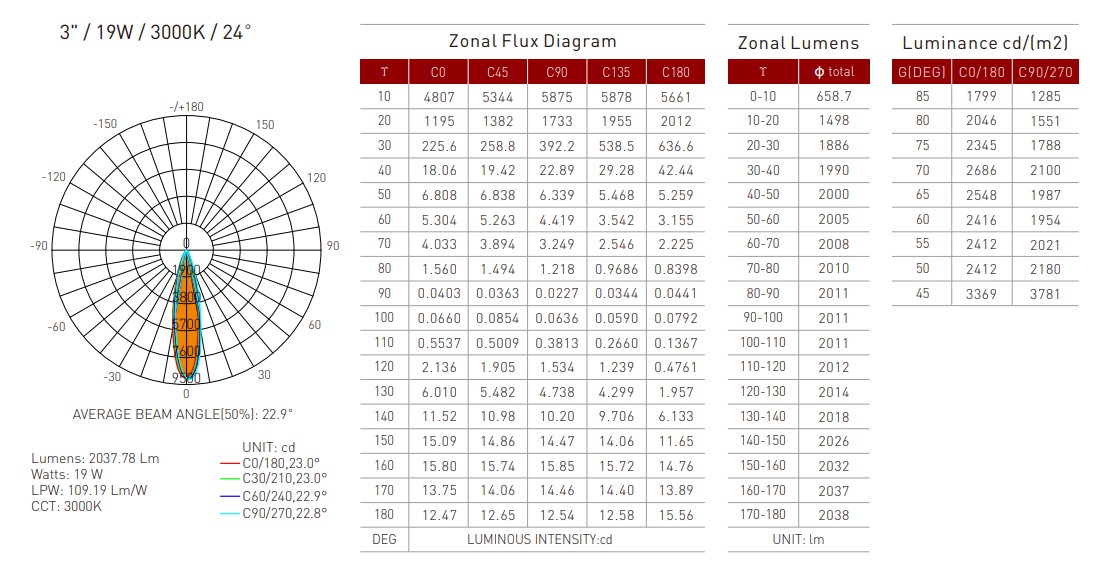

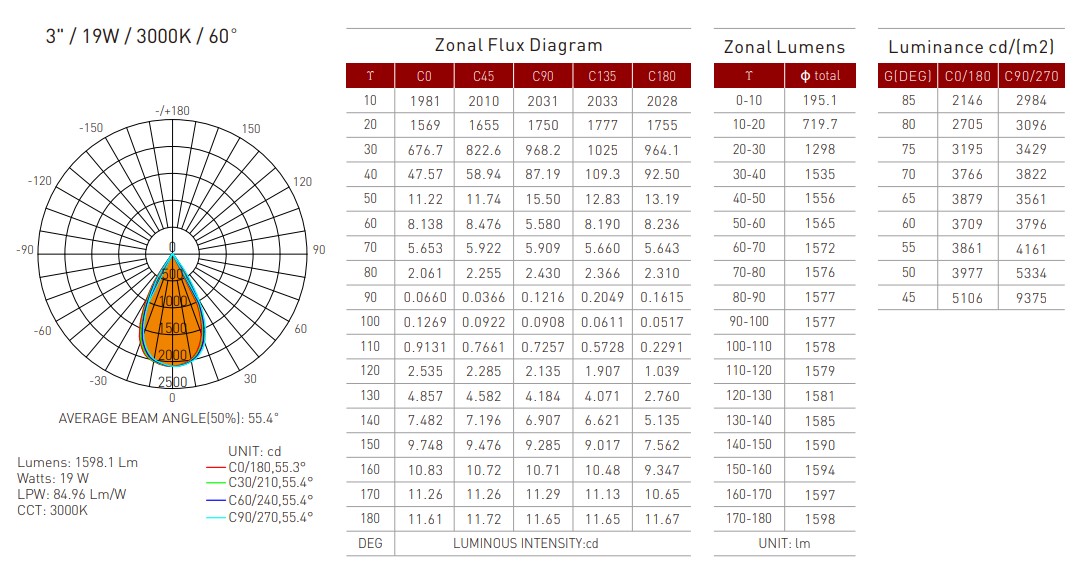

DISTRIBUTION DIAGRAM
