8" Surface Mount Disk Light with 5CCT Selector IMDD818W
Description:
The IMDD818W Surface Mount Disk Light brings you a modern ceiling lighting solution. It can be installed on a junction box with the surface mounting bracket which is included in the package. Also, it can be fitted in a standard recessed can with the optional recessed mounting kits. With the 5 selectable color temperature technology you can choose your favorite environment color temperature without changing the lamp. Our downlight provides perfect light performance, showing the true colors of objects and surroundings. You also get all other benefits of LED technology, including longer life to lower maintenance costs, and less heat for better energy saving in summer.
Perfect use for residential housings, condominiums, healthcare facilities, shopping centers, and the hospitality industry.
TECHNICAL SUMMARY
|
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
1260 |
18W |
70 lm/W |
90 |
120V, 60 Hz |
104º |
2700K/3000K/ 3500K/ 4000K/5000K |
>0.9 |
50,000 hrs |
-5ºF ~ 104ºF |
CONSTRUCTION
- Unit includes metal housing, LED array, heat sink, lens, surface mounting bracket with bracket adapter and smooth disk trim.
OPTICS
- High quality PC lens
- Efficiency LED array.
- Diffuse for uniform illumination
DRIVER
- High Efficiency integral 120V 60Hz constant current dimmable driver.
- Smooth flicker free deep dimming to 10%
MOUNTING
- Surface mount on junction box
- Pre-installed surface mounting bracket adapter
- Surface mounting bracket included
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations, Title 24 JA8-2022, RoHS
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
- Terms and conditions may apply.
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M

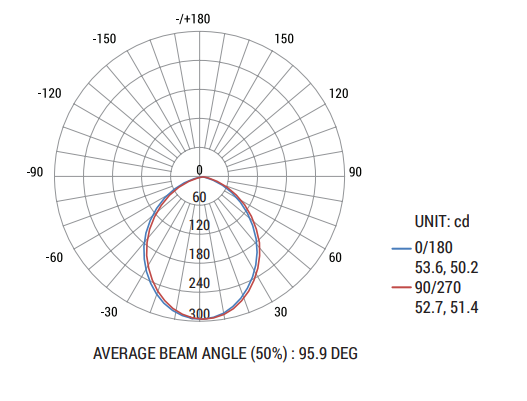

PHOTOMETRY
8" Surface Mount Disk Light with 5CCT Selector IMDD818W
