6” Surface Mount Disk Light with 5CCT Selector IMDDE616W
Description:

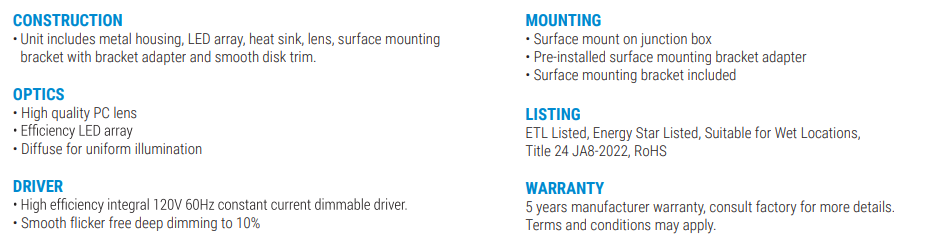

The IMDDE616W Surface Mount Disk Light brings you a modern ceiling lighting solution. It can be install on a junction box with the surface mounting bracket which is included in mounting kits. With the 5 selectable color temperature technology you can choose your most favorite environment color temperature without changing the lamp. Our downlight provides perfect light performance, showing the true colors of objects and lower maintenance cost, less heat for better energy saving in summer. Perfect use for residential housings, condominiums, the healthcare facility, shopping centers and hospitality industry.
.PNG)
DIMENSION
.PNG)
.PNG)
.PNG)
|
MODEL NO. |
WATTS |
LUMENS |
CRI |
CCT |
VOLTAGE |
LIFE |
SEMICONDUCTOR |
CERTIFICATION |
|
IMDDE412W-5CCT |
12W |
650LM |
90+ |
27/30/35/40/50K |
AC120V, 60HZ |
50,000 hrs |
TRIAC |
ETL/ ENERGY STAR/ T24 |
|
IMDDE616W-5CCT |
16W |
1050LM |

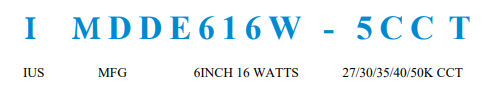

PART NUMBER ORDERING SUMMARY
.PNG)
.PNG)
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.
RECOMMENDED DIMMERS
.PNG)

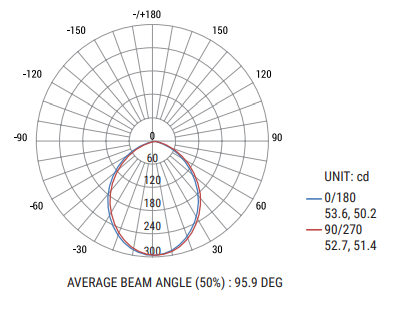

PHOTOMETRY
.PNG)
6” Surface Mount Disk Light with 5CCT Selector IMDDE616W
