5"/7"/9"/13" Round Surface Mount Downlight with 5CCT Selector IMRSM
Description:
The IMRSM Series LED Round Slim Surface Downlight comes with an integrated design and all mounting hardware for quick and easy installation is included. It's available in 4 different size apertures. The IMRSM is an LED surface-mounted luminaire with the appearance of a recessed downlight. This downlight is compatible with most LED dimmers, letting you smoothly dim from 10% to 100% without flickering.
Perfect use for residential housings, condominiums, healthcare facilities, shopping centers, and the hospitality industry.

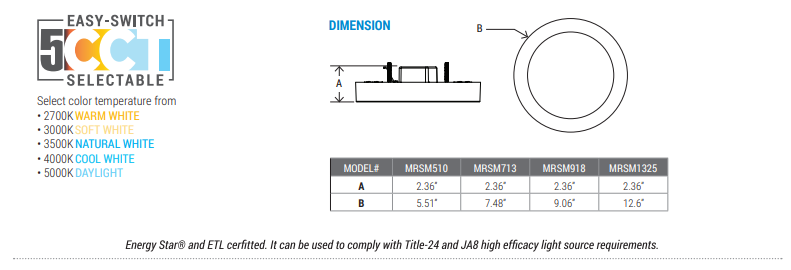

TECHNICAL SUMMARY
|
MODEL # |
FINISH |
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
MRSM510-5CCT |
WH |
580 |
10W |
55 lm/W |
|
120V, 60 Hz |
|
2700K/ 3000K/ 3500K/ 4000K/ 5000K |
|
|
|
|
(White) |
|
|
|
|
|
||||||
|
MRSM713-5CCT |
750 |
13W |
56 lm/W |
||||||||
|
BN (Brush Nickel) |
90 |
95º |
>0.9 |
50,000 hrs |
-5ºF ~ 104ºF |
||||||
|
MRSM918-5CCT |
1050 |
18W |
57 lm/W |
||||||||
|
BZ |
|
|
|
|
|
||||||
|
MRSM1325-5CCT |
1375 |
25W |
55 lm/W |
||||||||
|
(Bronze) |
|
|
|
|
|
CONSTRUCTION
- Unit includes die-cast metal housing,LED array, heat sink, lens, and mental trim with white, brush nickle and bronze finish.
OPTICS
- High quality PC lens
- Efficiency LED array
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable.
- Smooth flicker free deep dimming to 10%
MOUNTING
- Surface mount on junction box.
- Surface mounting bracket included.
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations,
- Title 24-JA8-2022,RoHS,Air-Tite Certified
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
- Terms and conditions may apply.
LUTRON
- TGCL-13PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M

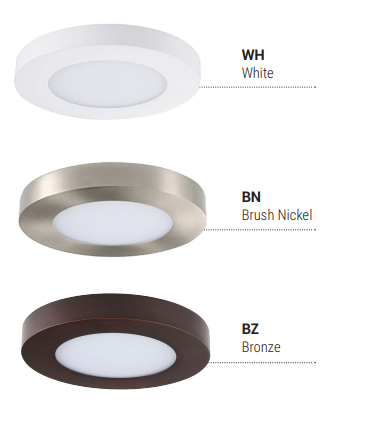

FINISH COLOR

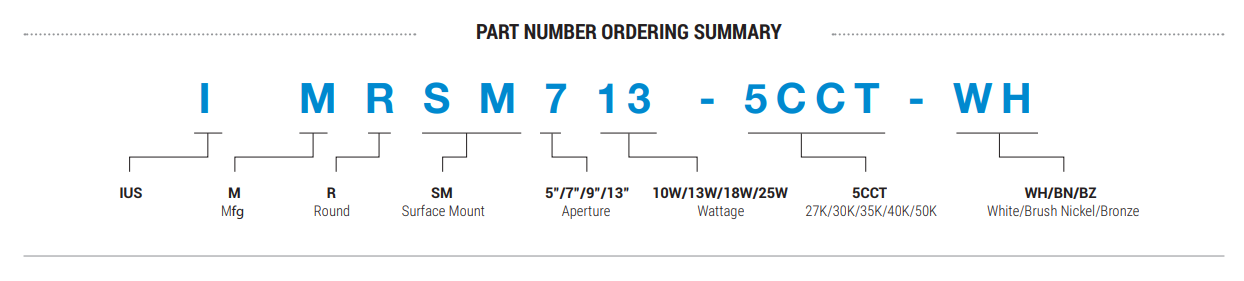

5"/7"/9"/13" Round Surface Mount Downlight with 5CCT Selector IMRSM
IMRSM510-5CCT
IMRSM713-5CCT
IMRSM918-5CCT
IMRSM1325-5CCT
