4’ OR 8’ Vapor tight NEMA4X
Description:
The IMVT04 series Vapor Tight fixture withstands rugged environments and is available in 4-foot and 8-foot lengths. The fixture housing is made of clean and pure PC material with excellent stability and durability, and a stainless steel clip for easy disassembly and installation. The fixture has the ability to switch lumens and adjust color temperature. Emergency Battery Backup and sensor options are available. The IMVT04 series vapor tight is an ideal solution for outdoor venues, canopies, and locker rooms.
Contact UsCONSTRUCTION
- Closed housing is ealed against moisture and environmental contaminants.
- Stainless steel clamp design, convenient assembly and separation of lamp body.
- 4 feet and 8 feet are available.
OPTICS
- Up to 90W output 13700 lumens.

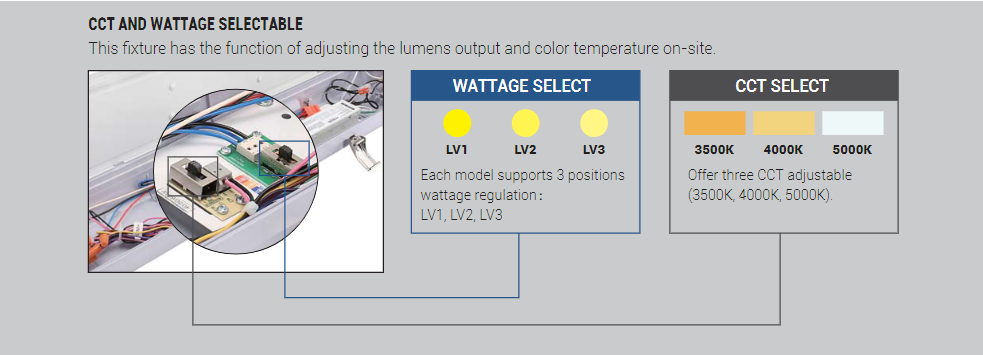

- Adjustable lumen output with three lumen gears LV1、LV2、LV3.
- Switchable color temperature 3500K/4000K/5000K.
ELECTRICAL
- Auxiliary 12V output.
- Universal 120-277 VAC input voltage.
- 0-10V dimming standard for a dimming range of 100% to 10%.
- PF >90%, THD <20%.
- Operating Temperature Range: -30°C to 50°C
CONTROLS
- Optional Motion sensor.
- Optional Emergency Battery.
LIFESPAN
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Controls
- Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor.
- Optional Bluetooth sensor or Bluetooth controller.
- Silvair Luminaire Level Lighting Control (LLLC) optional
- Sharkward Luminaire Level Lighting Control (LLLC) optional.
- Haisen Luminaire Level Lighting Control (LLLC) optional.
- Also compatible with 3rd party smart network control system.
- High End Trim
Warranty
- Five-year limited warranty
Certifications
- UL cUL wet location listed.
- NEMA4X approved.
- DesignLights Consortium™ Qualified.
Note: Please refer to the DLC website for specific product qualifications at www.designlights.org.
MOUNT
- Suspension and surface mount option
IP
- IP65 & IK08
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
PERFORMANCE DATA
|
IMVT04 50W |
|||||||
|
SETTING |
SYSTEM WATTS |
3500K (80CRI) |
4000K (80CRI) |
5000K (80CRI) |
|||
|
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
||
|
LV1 |
50W |
6800lm |
136 lm/W |
7200lm |
144 lm/W |
7000lm |
140 lm/W |
|
LV2 |
35W |
4900lm |
140 lm/W |
5200lm |
149 lm/W |
5000lm |
143 lm/W |
|
LV3 |
25W |
3600lm |
144 lm/W |
3850lm |
154 lm/W |
3700lm |
148 lm/W |
|
IMVT04 90W |
|||||||
|
SETTING |
SYSTEM WATTS |
3500K (80CRI) |
4000K (80CRI) |
5000K (80CRI) |
|||
|
LUMENS |
LPW |
LUMENS |
LPW |
LUMENS |
LPW |
||
|
LV1 |
90W |
13000lm |
144 lm/W |
13700lm |
152 lm/W |
13300lm |
148 lm/W |
|
LV2 |
75W |
11000lm |
147 lm/W |
12000lm |
160 lm/W |
11500lm |
153 lm/W |
|
LV3 |
60W |
9000lm |
150 lm/W |
10000lm |
167 lm/W |
9500lm |
158 lm/W |
ELECTRICAL DATA
|
NUMBER OF DRIVERS |
DRIVER CURRENT (mA) |
NOMINAL POWER (W) |
INPUT VOLTAGE (V) |
CURRENT (Amps) |
|
1 |
1200 |
50 |
120 |
0.42 |
|
50 |
208 |
0.24 |
||
|
50 |
240 |
0.21 |
||
|
50 |
277 |
0.18 |
||
|
1 |
2100 |
90 |
120 |
0.75 |
|
90 |
208 |
0.43 |
||
|
90 |
240 |
0.38 |
||
|
90 |
277 |
0.32 |

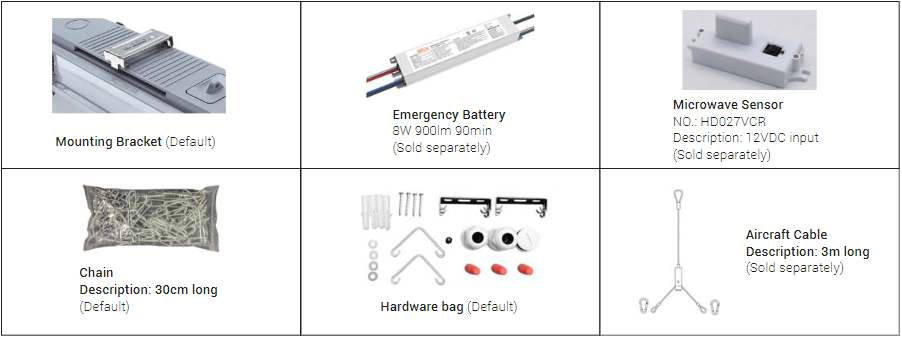

ACCESSORIES (Optional)

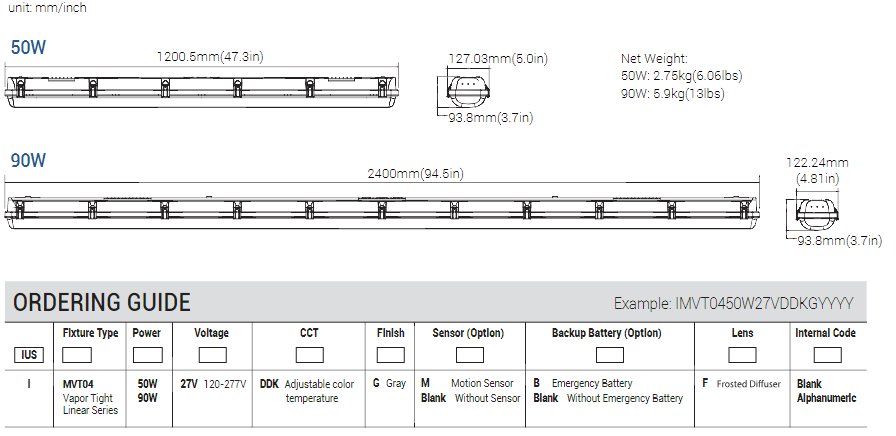

DIMENSION

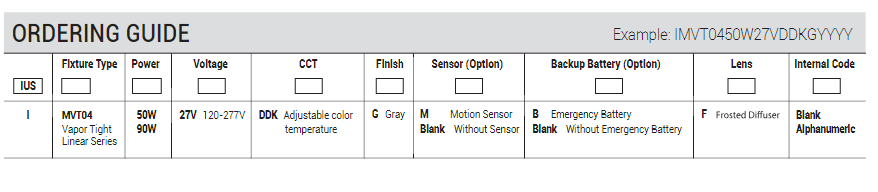

ORDERING GUIDE
4’ OR 8’ Vapor tight NEMA4X
IMVT0450W27VDDKF-25W 3500K
IMVT0450W27VDDKF-25W 4000K
IMVT0450W27VDDKF-25W 5000K
IMVT0450W27VDDKF-35W 3500K
IMVT0450W27VDDKF-35W 4000K
IMVT0450W27VDDKF-35W 5000K
IMVT0450W27VDDKF-50W 3500K
IMVT0450W27VDDKF-50W 4000K
IMVT0450W27VDDKF-50W 5000K
