4’/6’/8’ Up/down linear Pendant

Description:

IUS Up/down linear is a commercial pendant lighting fixture utilizing an advanced LED optical system to achieve superior performance. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on, reaching 55% downlighting and 45% uplighting distribution, making the illusion of the light floating in mid-air. It has CCT adjustable optional function which is available in 3000K,3500K and 4000K. It’s highly engineered luminaire joining design allows for simple and intuitive assembly in the field without tools which is perfect for applications that include conference rooms, open offices, retail settings, anywhere you want to make a statement.

Contact Us

Features

  • UL, cUL Listed, DLC Qualification, Damp Rated
  • Available in 4', 6' and 8' length
  • Transparent optics
  • 0-10V dimming, dim to 10% or 1% options
  • 55% downlight and 45% uplight distribution
  • Internal & replaceable driver
  • CCT adjustable from 3000k, 3500k, 4000k
  • Continuous runs

PERFORMANCE

Dimension

Wattage

Efficacy@4000K

Lumen@4000K

8"x4'

40W

1200lm/ft

4800lm

8"x6' *

60W

1200lm/ft

7200lm

8"x8'

80W

1200lm/ft

9600lm

* 6FT 60W is not DLC qualification.

Lumen output may vary by ±5% based on different CCT and wattage settings. Actual wattage may also vary by ±5%.

Correlated CCT Multiplier

3000K

3500K

Multiplier for Lumen Output

0.95

1.05

Apply to 4000K only in table above to approximate output at other CCT.

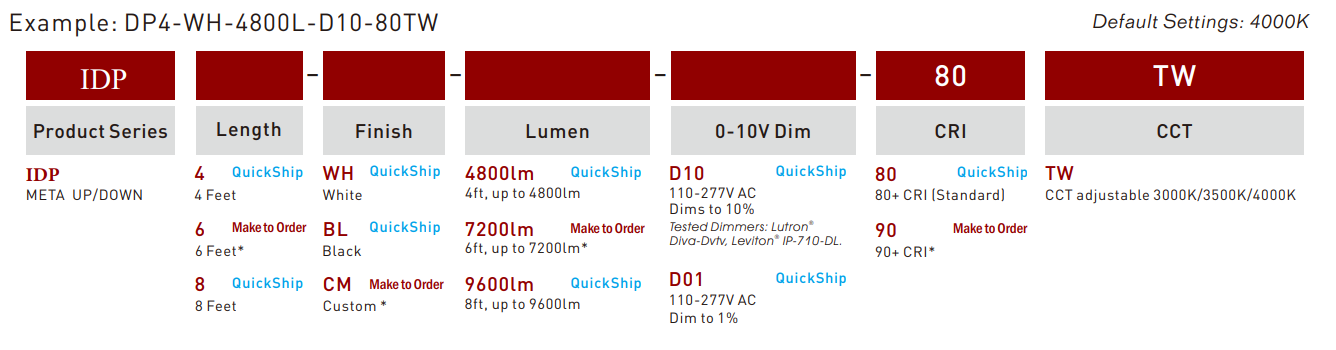

PRODUCT ORDERING GUIDE

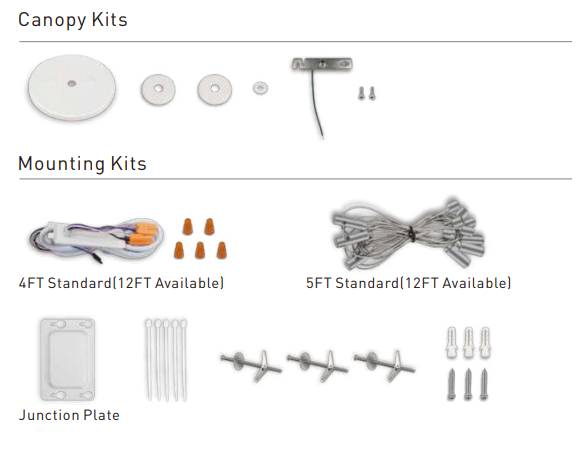

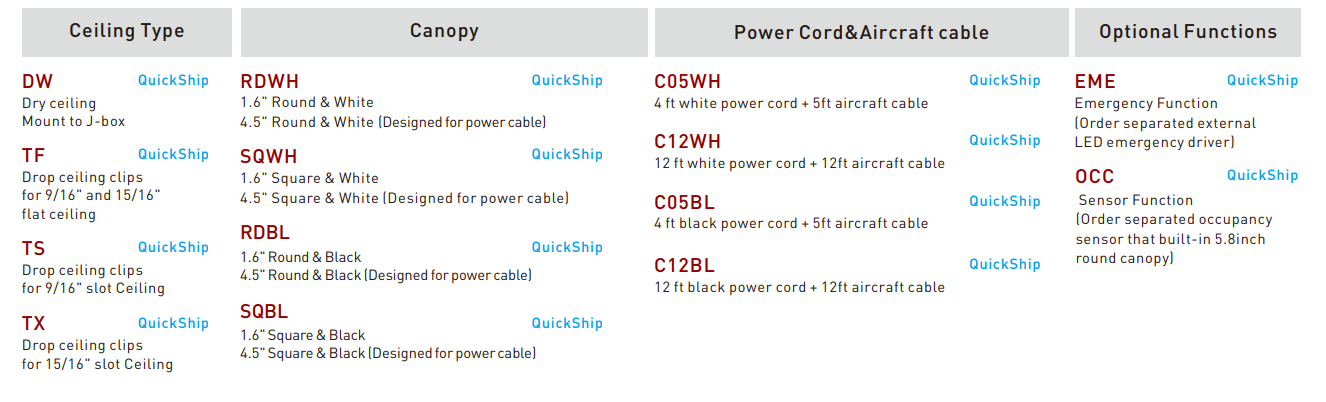

OPTIONAL PENDANT ACCESSORY

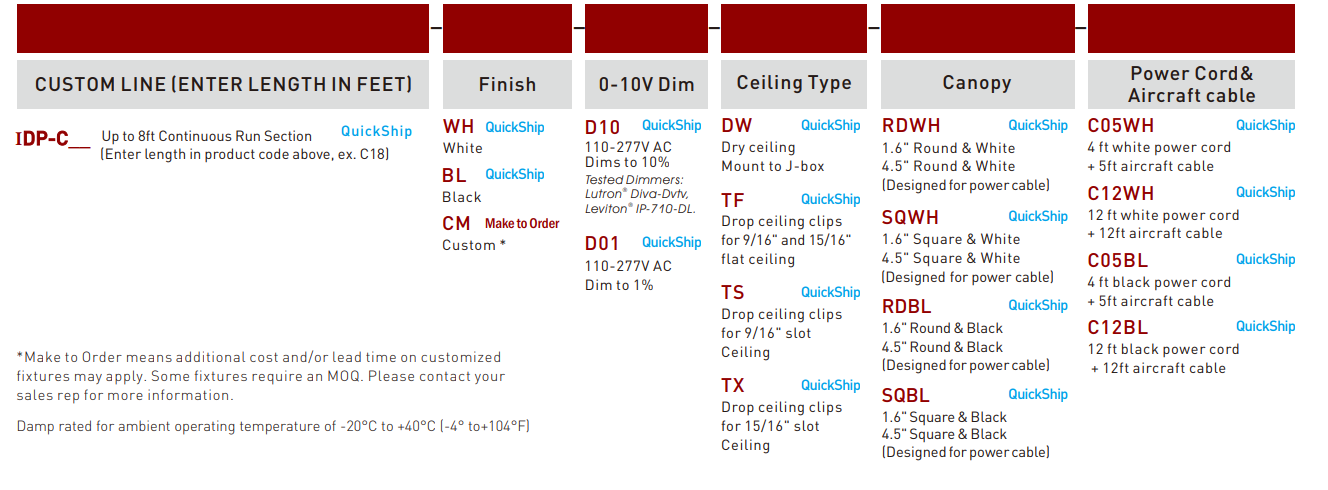

CUSTOM LINE ORDERING GUIDE

Example: DP-C18-WH-D10-DW-RDWH-C05WH

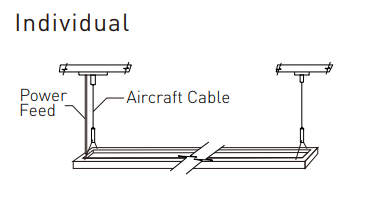

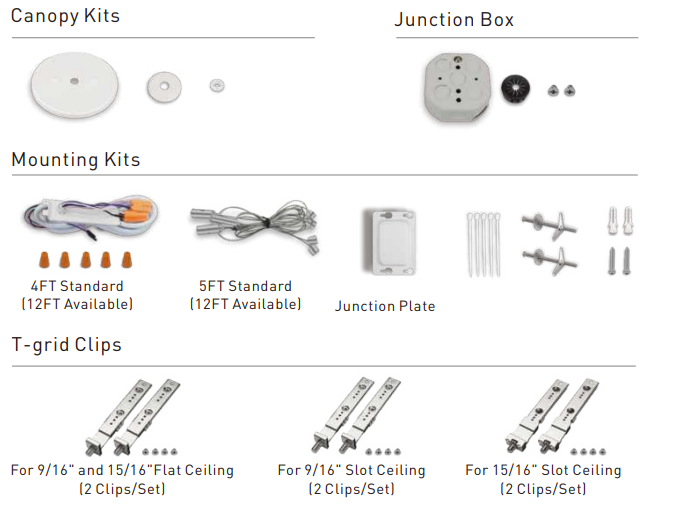

MOUNTING

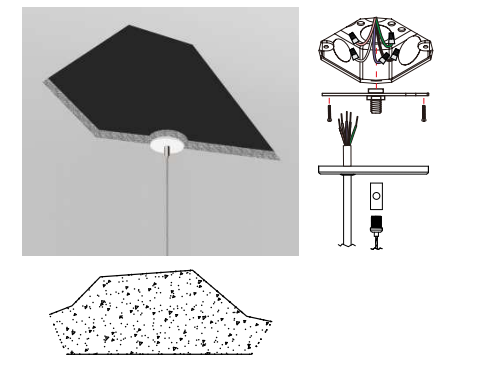

Dry Ceiling / Off Grid

"Various Hard Ceilings" (Mount to J-box)

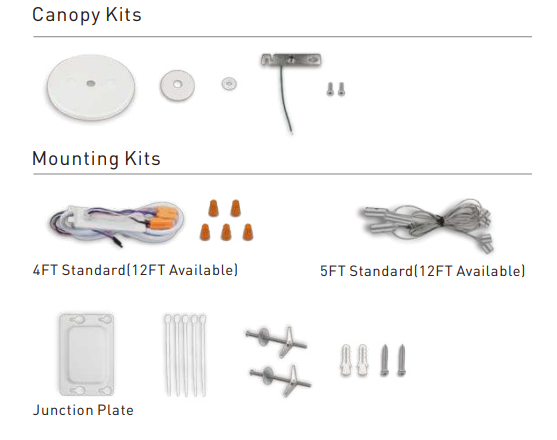

Pendant Accessories For Dry Ceiling For 4'

Pendant Accessories For Dry Ceiling For 6'or 8'

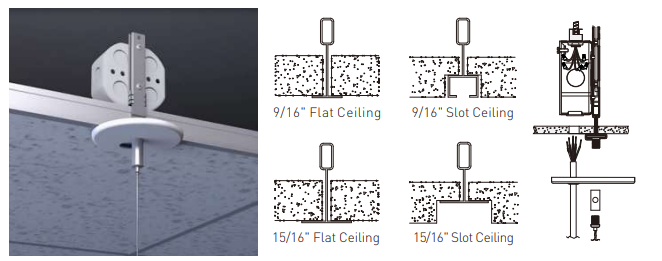

Drop Ceiling / On Grid

Suspending the luminaire in the T-grid. Compatible for various T-grid, including 9/16" Flat, 9/16" Slot,15/16" Flat.

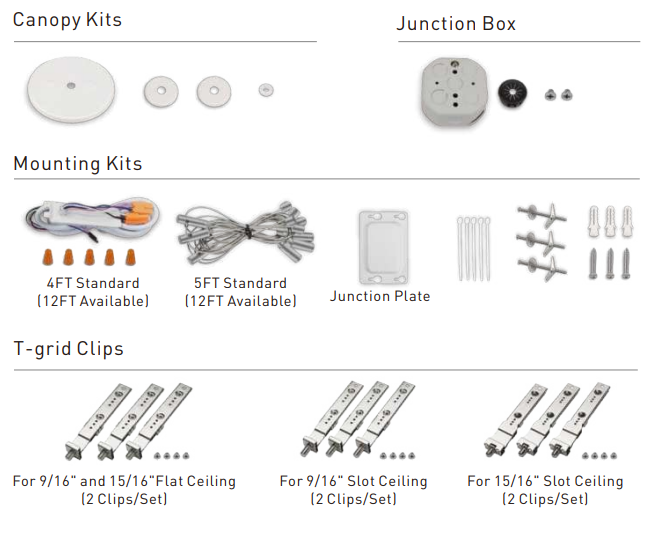

Pendant Accessories For Drop Ceiling For 4'

Pendant Accessories For Drop Ceiling For 6'or 8'

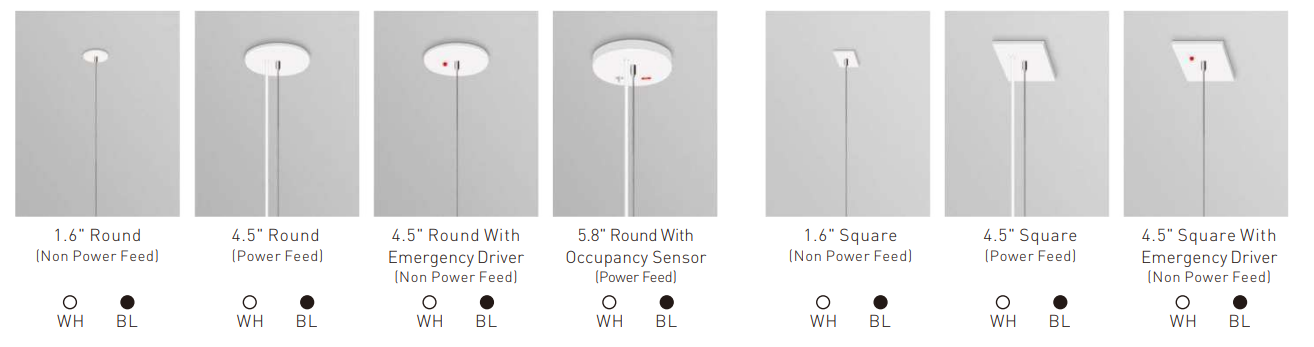

Canopy Style

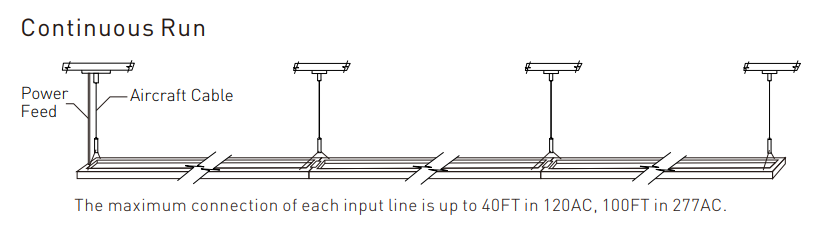

Standard Line Runs In 120V

Luminaire Run Length (ft)

Run Configuration

5' Power Cable

5' Aircraft Cable

Canopy

4

4'

1

2

2

8

8'

1

3

3

12

6'+6'

1

3

3

16

8'+8'

1

5

5

20

8'+8'+4'

1

6

6

24

8'+8'+8'

1

7

7

28

8'+8'+8'+4'

1

8

8

32

8'+8'+8'+8'

1

9

9

36

6'+6'+6'+6'+6'+6'

1

7

7

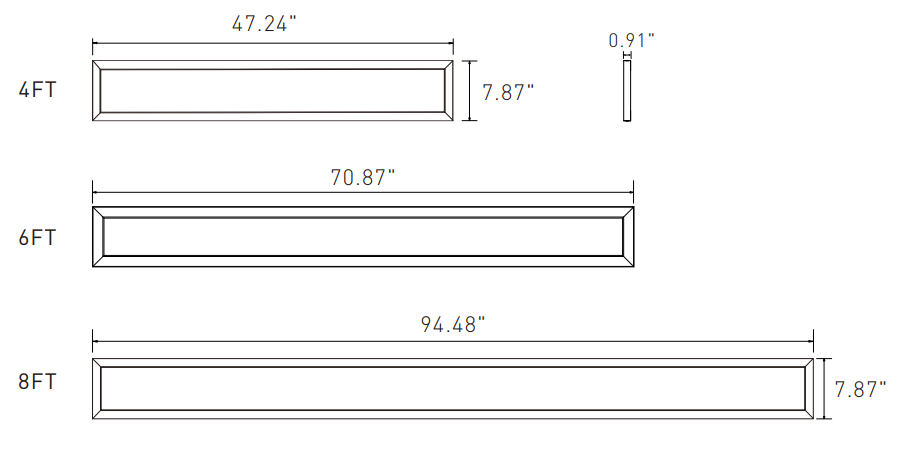

DIMENSIONS

OPTIONAL FUNCTION

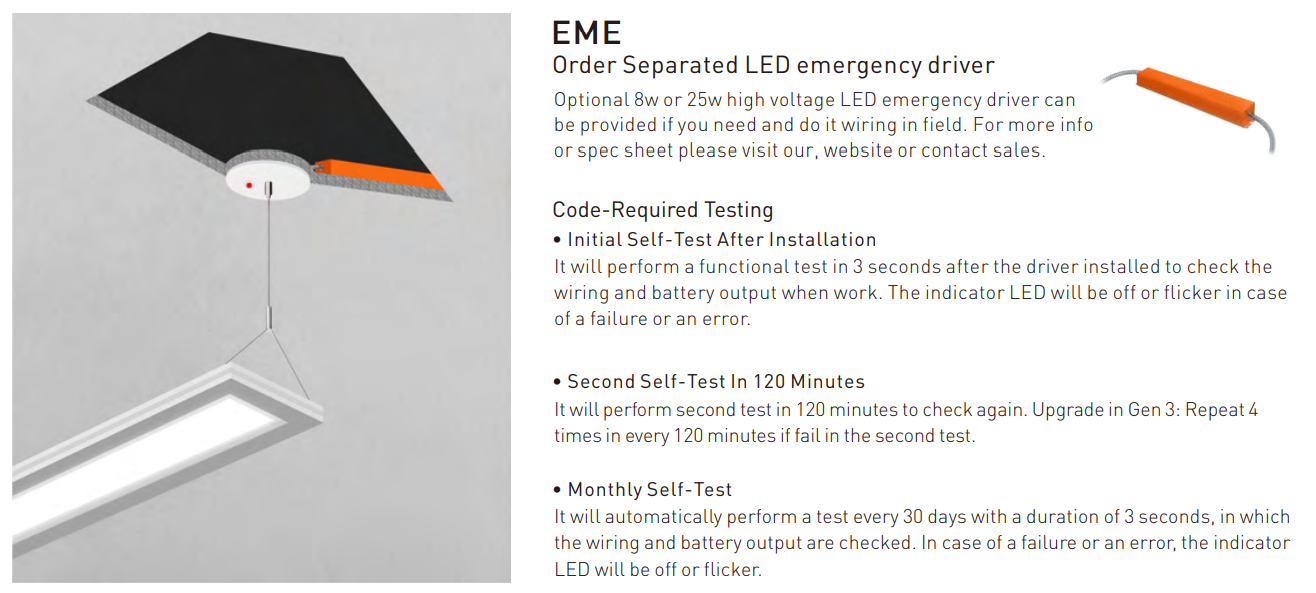

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

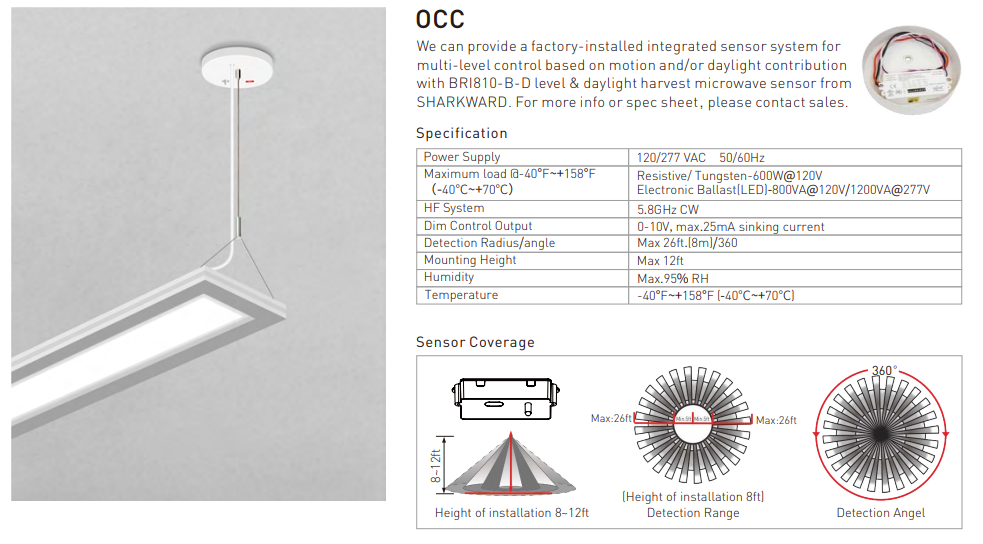

Occupancy Sensor

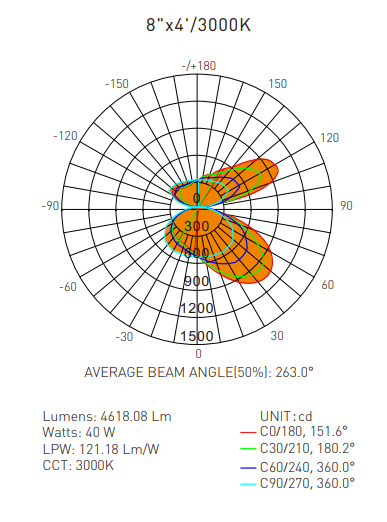

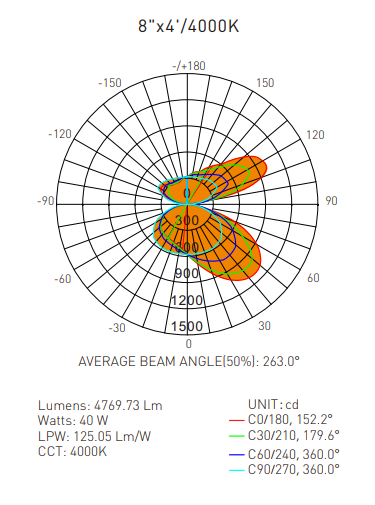

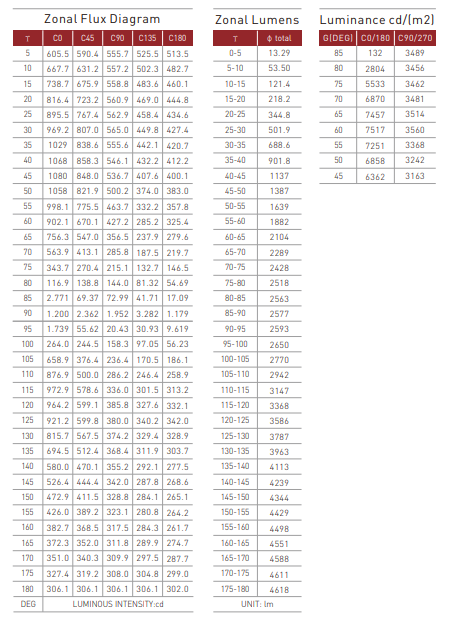

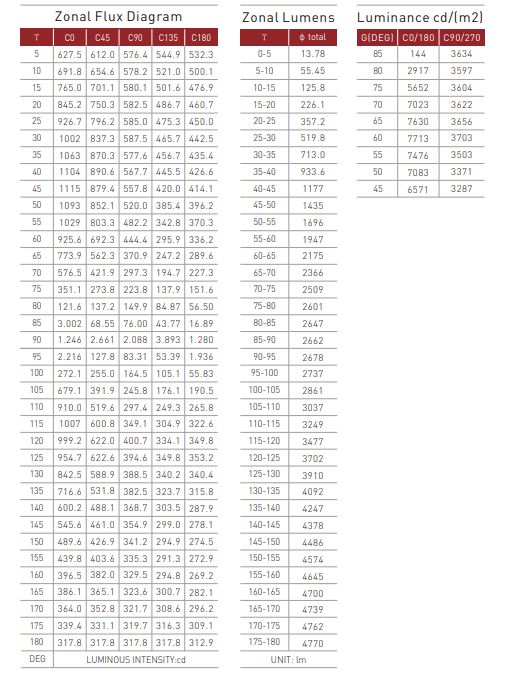

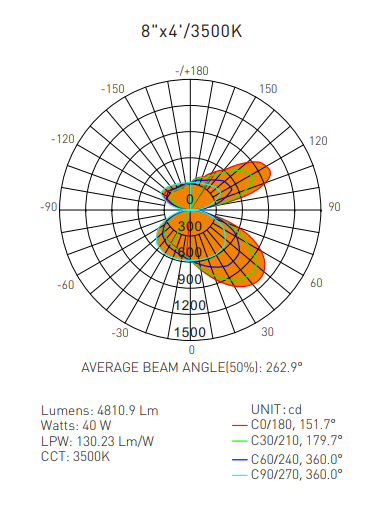

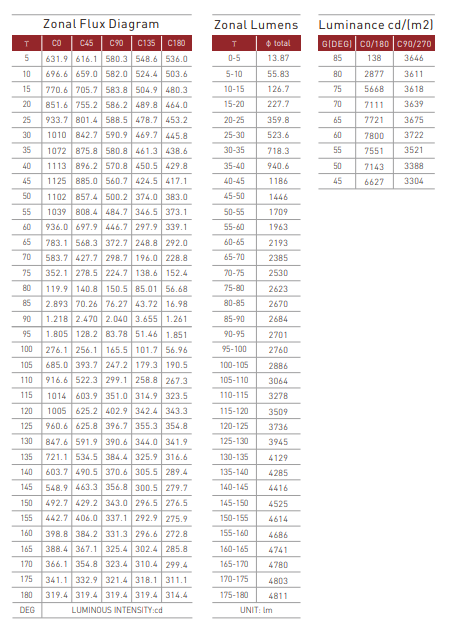

DISTRIBUTION DIAGRAM

4’/6’/8’ Up/down linear Pendant
