2'/3' LED Vanity Bath Light Fixture IMWVL

Description:

This IMWVL LED vanity bath light offers a modern and streamlined look for your living space. It’s designed to be mounted horizontally or vertically easily. With the powder-coated painted die-formed cold-rolled steel frame and high transmission white acrylic lens, this energy-efficient product will illuminate your home for a long period. The IMWVL is perfect for use in residential housing, condominiums, hotels, and the hospitality industry.

Contact Us

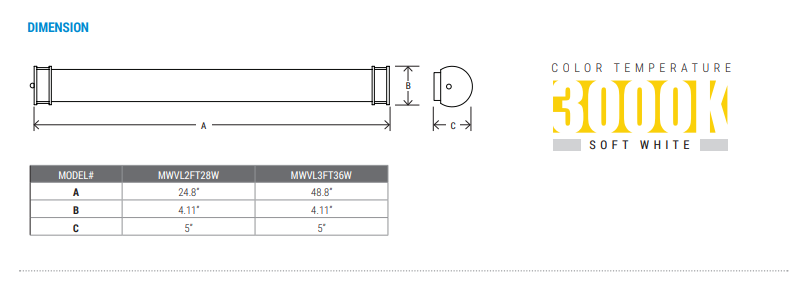

DIMENSION

MODEL#

MWVL2FT28W

MWVL3FT36W

A

24.8”

48.8”

B

4.11”

4.11”

C

5”

5”

TECHNICAL SUMMARY

MODEL #

LUMENS

WATTS

EFFICACY

CRI

VOLTAGE

BEAM º

CCT

PF

LIFE

OPERATING TEMP.

IMWVL2FT-28W-30K



2520



28W



90 lm/W





80





120V,

60 Hz





104º





3000K





>0.9





50,000 hrs





-4ºF ~ 104ºF

 IMWVL3FT-36W-30K



3060



36W



85 lm/W

CONSTRUCTION

  • Unit includes steel frame, LED array, heat sink, lens
  • Die-formed cold-rolled steel with powder coated paint

OPTICS

  • High transmission white acrylic lens with satin nickel trim
  • Efficiency LED Array
  • Diffuse for uniform illumination

DRIVER

  • 120V 60Hz input voltage
  • Smooth flicker free deep dimming

MOUNTING

  • Surface mount on junction box

LISTING

  • UL Listed, Energy Star Listed, Suitable for Wet Locations, Title 24 JA8-2022, RoHS

WARRANTY

  • 5 years manufacturer warranty, consult factory for more details.
  • Terms and conditions may apply.

LUTRON

  • TGCL-153PH-WH
  • DVCL-153PR
  • P-PKG1W-WH-R
  • CTCL-153PDH-WH

LEVITON

  • R00-RNL06-TW
  • R50-IPL06-10M
