16" Double Ring Flush Mount Fixture with 5CCT Selector IIPDR1624W
Description:
The (IP-DR) Double Ring Flush Mount Fixture brings you a modern ceiling lighting solution.Fits all your need for the environment light. With the 5 selectable color temperature technology you can choose your most favorite environment color temperature without changing the lamp. CCT switch on the back of the fixture easily. You also get all other benefits of LED technology, including longer life to lower maintenance costs, and less heat for better energy saving in summer.
Perfect use for residential housings, condominiums, business buildings, hotels, and the hospitality industry.
TECHNICAL SUMMARY
|
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
DIMMING |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
1900 |
24W |
79.2 lm/W |
80 |
120V, 60 Hz |
Smooth dim to 10% |
27K/30K/ 35K/ 40K/50K |
>0.9 |
50,000 hrs |
-40ºF ~ 104ºF |
CONSTRUCTION

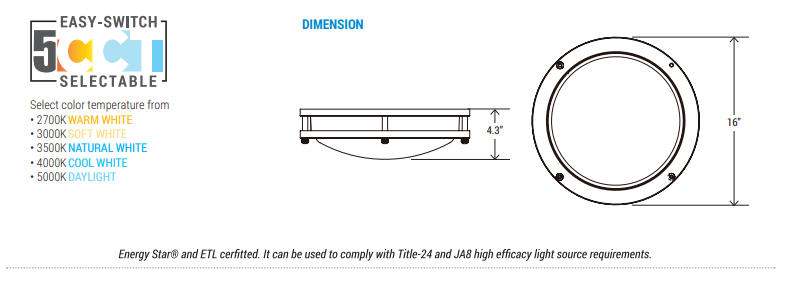

- Select color temperature from 2700K warm white, 3000K soft white, 3500K natural white, 4000K cool white, or 5000K daylight for your environment
OPTICS
- High quality PC lens
- Efficiency LED array.
- Diffuse for uniform illumination
DRIVER
- High Efficiency integral 120V 60Hz constant current dimmable driver.
- Smooth flicker free deep dimming to 10%
MOUNTING
- Surface mount on junction box
LISTING
- ETL Listed, Energy Star Listed, Suitable for Wet Locations,
- Title 24 JA8-2022, RoHS
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
- Terms and conditions may apply.
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- IPL06-10M
16" Double Ring Flush Mount Fixture with 5CCT Selector IIPDR1624W

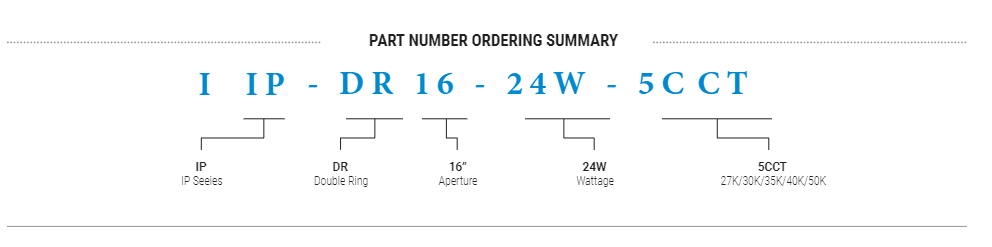

IP-DIR16-24W-5CCT
