1"2"3" Trim-Less Downlight w/Mud Ring
Description:

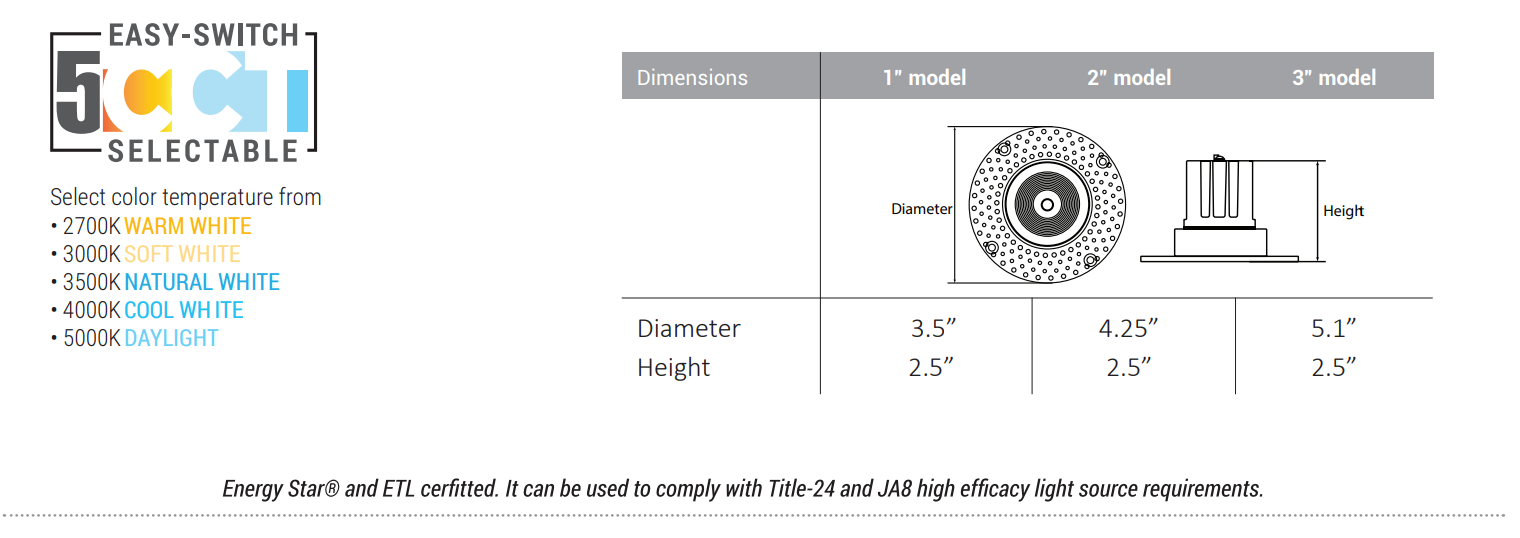

Introducing the IMRHD Series Trimless Downlight with Mud Ring, a cutting-edge lighting solution that combines 5CCT technology with a canless and trimless design. The unique mud ring allows you to seamlessly integrate the downlight into your ceiling, hiding the trim ring so that you won't see any visible trim after installation, providing a clean and modern look. With the 5CCT feature, you have the flexibility to choose from 5 different color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K), allowing you to create the perfect lighting ambiance for any occasion.
The canless design simplifies the installation process, eliminating the need for a traditional can housing. This not only saves you time but also ensures a sleek and unobtrusive appearance for your ceiling.
Upgrade your lighting system with our Trimless Downlight with Mud Ring and experience the perfect blend of style and functionality. This energy-efficient and visually appealing downlight is suitable for both residential and commercial use, providing exceptional lighting performance with a seamless finish.
TECHNICAL SUMMARY
|

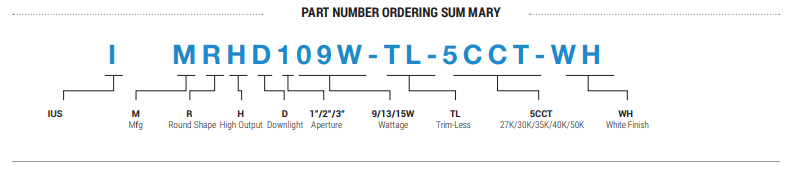

Model |
Description |
Brightness |
Wattage |
|
Color Temp. |
CRI |
Voltage |
PF |
Life Hours |
|
IMRHD109W-TL-5CCT-WH |
1” trim-less downlight with mug ring |
600Lm |
9W |
67Lm/W |
5CCT@2700/ 3000/3500/ 4000/5000K |
|
|
|
|
|
IMRHD213W-TL-5CCT-WH |
2” trim-less downlight with mug ring |
750Lm |
13W |
58Lm/W |
90+ |
120Vac @60Hz |
≥0.9 |
50,000 |
|
|
IMRHD315W-TL-5CCT-WH |
3” trim-less downlight with mug ring |
900Lm |
15W |
60Lm/W |
|
|
|
|
CONSTRUCTION
- Unit includes metal housing, LED array, heat sink, lens, mug ring and baffle trim ring
OPTICS
- High quality PC lens
- Efficiency LED Array
- Diffuse for uniform illumination
DRIVER
- High efficiency integral 120V 60Hz constant current dimmable driver.
- mooth flicker free dimming to 10%,
MOUNTING
- Can-less design, no can housing needed for the installation
- Pre-installed torsion spring clips
- Junction box included
LISTING
- ETL listed, Energy star listed, Suitable for Wet Locations,Title 24 JA8-2022,RoHS
WARRANTY
- 5 years manufacturer warranty, consult factory for more details.
- Terms and conditions may apply.
LUTRON
- TGCL-153PH-WH
- DVCL-153PR
- P-PKG1W-WH-R
- CTCL-153PDH-WH
LEVITON
- R00-RNL06-TW
- R50-IPL06-10M

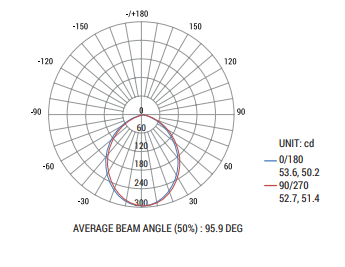

PHOTOMETRY
1"2"3" Trim-Less Downlight w/Mud Ring
IMRHD109W-TL-5CCT-WH
MRHD213W-TL-5CCT-WH
